2008 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Steering Wheel Control Switch Assembly Replacement (Non SS)

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

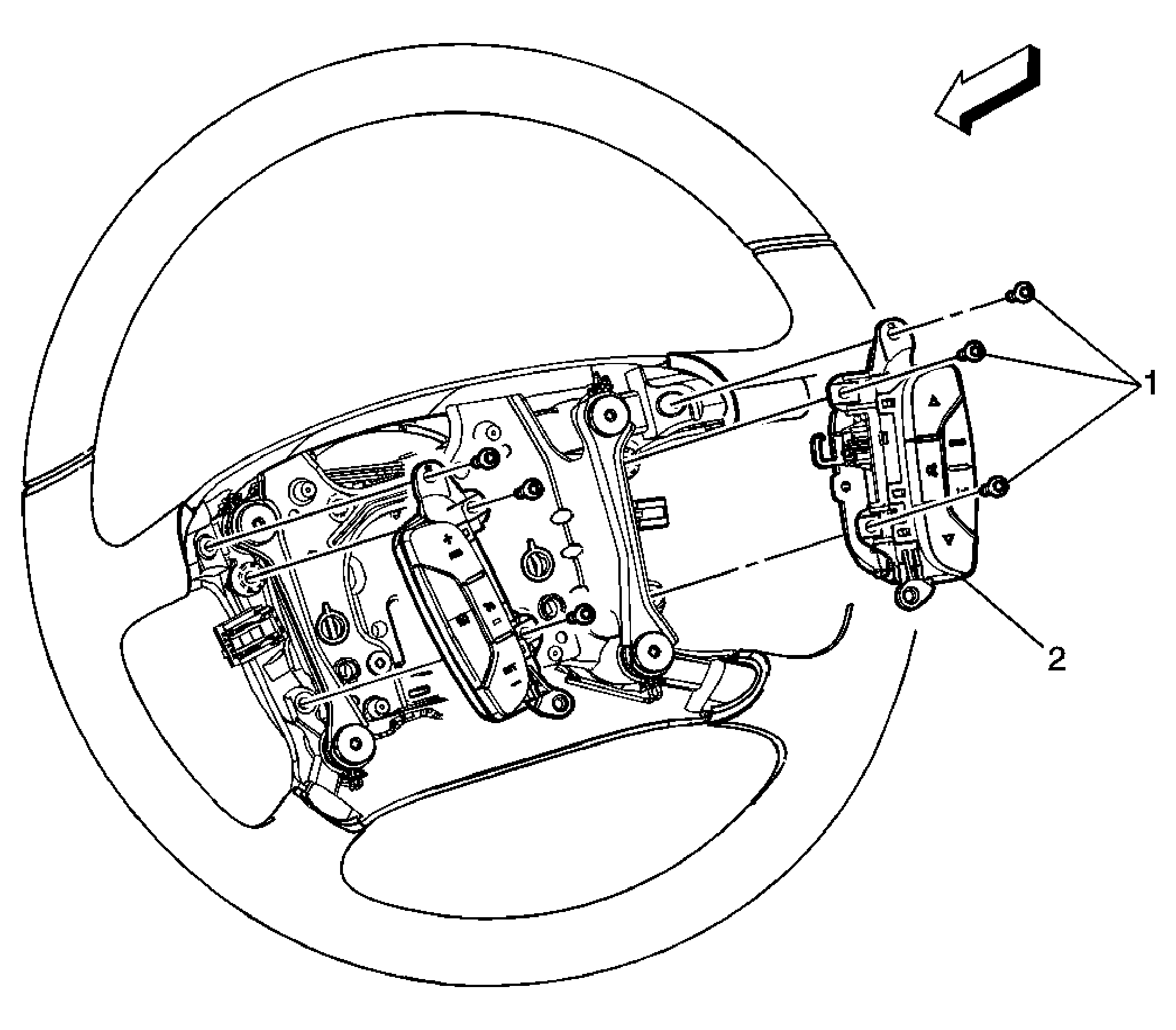

Fig 1: View Of Steering Wheel Cruise Control Switches
GM1824224Courtesy of GENERAL MOTORS CORP.
Callout Component Name
CAUTION: Refer to SIR Caution .
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement (Non-SS) or Inflatable Restraint Steering Wheel Module Replacement (SS) .
1 Steering Wheel Control Switch Assembly Screw (Qty: 6)
NOTE: Refer to Fastener Notice .

Tip:  DO NOT over tighten the steering wheel control switch screws or damage to the switch(s) or steering wheel covers may occur.

Tighten:  2 N.m (18 lb in)
2 Steering Wheel Control Switch Assembly (Qty: 2)
Tip:
  • Disconnect the electrical connector.
  • Make sure the steering wheel control switch(s) are properly seated to the steering wheel shroud during installation.
