2008 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Generator Battery Control Module Replacement

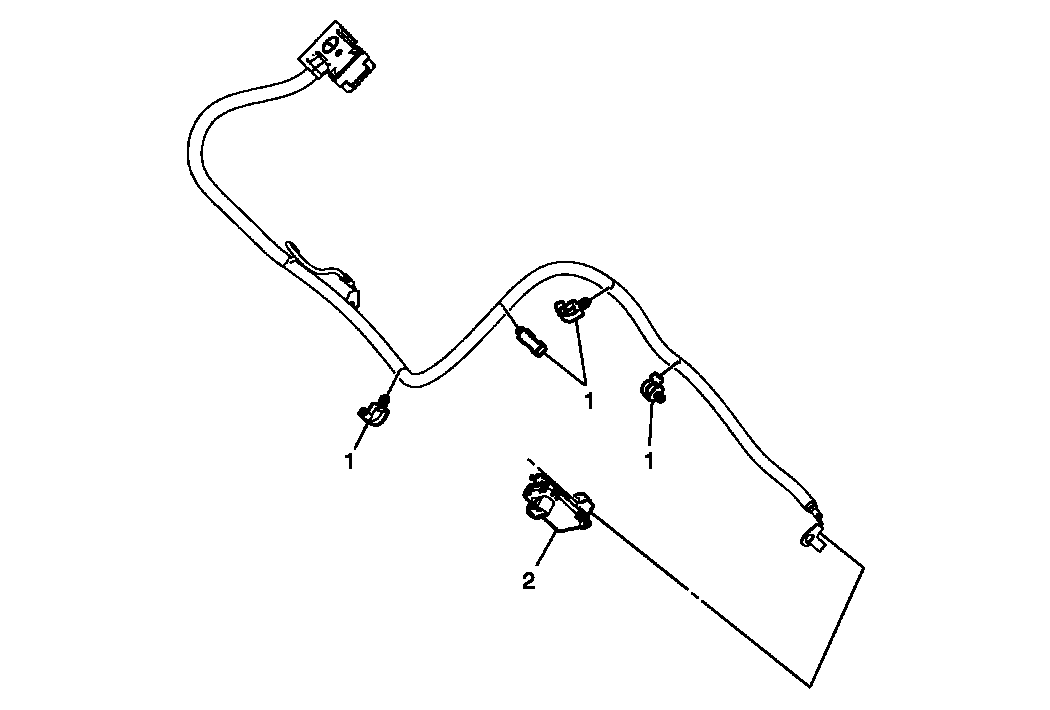

Fig 1: Generator Battery Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

Clamp (Qty: 4)
Tip: Mark the location of the clamps for installation.

Generator Battery Control Module

Procedure

Disconnect the generator battery control module harness connector.
Remove the tape retaining the module to the negative battery cable and note the location for installation.
Remove the module from the cable.
