2008 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE

Ignition Switch: Service and Repair



Ignition and Start Switch Replacement

Special Tools

J-42759 Ignition Switch Connector Release Tool


Removal Procedure

Caution: Refer to SIR Caution (SIR Caution) .
1. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Driver Knee Bolster Replacement) .
2. Remove the theft deterrent module. Refer to Theft Deterrent Module Replacement (Service and Repair) .
3. Disconnect the passlock and key buzzer from the ignition lock cylinder case.

Factory service manual diagram

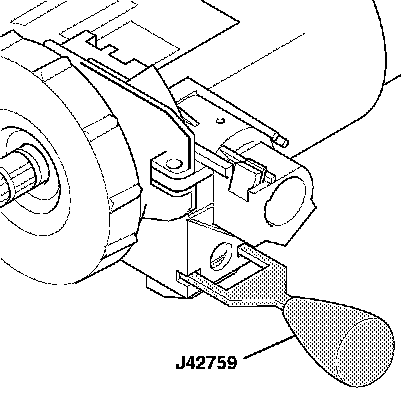

4. Insert release tool J-42759 into the ignition lock cylinder case to release the tabs on the ignition/start switch.
5. Pull the ignition/start switch out of the ignition lock cylinder case.
6. Disconnect the electrical connector from the ignition/start switch.



Installation Procedure


Factory service manual diagram




Important: The gears between the ignition/start switch and the ignition lock cylinder case must be in the correct position. Failure to do so will cause a misalignment of the gears in the ignition/start switch and the ignition lock cylinder case , which may result in a NO START or BATTERY DRAIN.

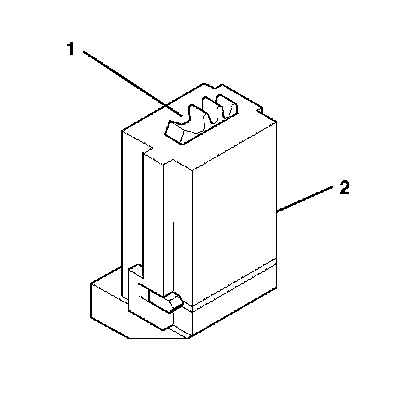

1. Verify the alignment of the gear (1) in the ignition/start switch (2). If the gear (1) is not in the position shown then turn the gear in the ignition/start switch (2) until you reach the correct position.

Factory service manual diagram




Important: In order to reach a stop while rotating the ignition lock cylinder case gear you MUST push and hold in the solenoid on the electric park lock.

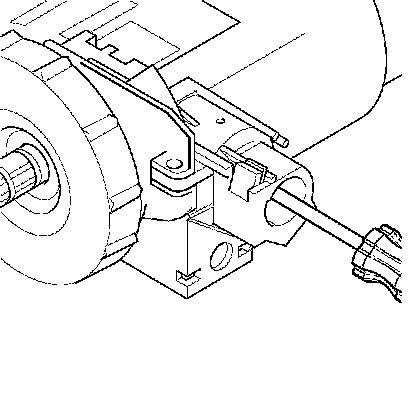

2. Use a screwdriver to rotate the ignition lock cylinder case gear counterclockwise until it hits the stop.
3. Connect the electrical connector to the ignition/start switch.

Factory service manual diagram

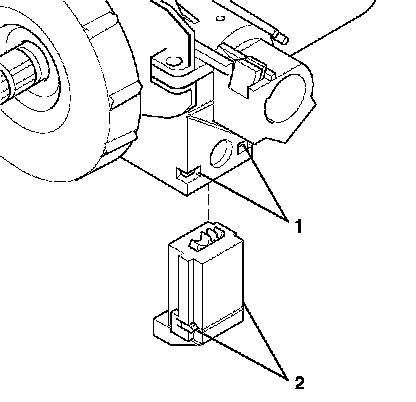

4. Insert the ignition/start switch into the ignition lock cylinder case. The tabs (2) on the ignition/start switch MUST be seated inside the ignition lock cylinder case (1) for proper installation.

Factory service manual diagram

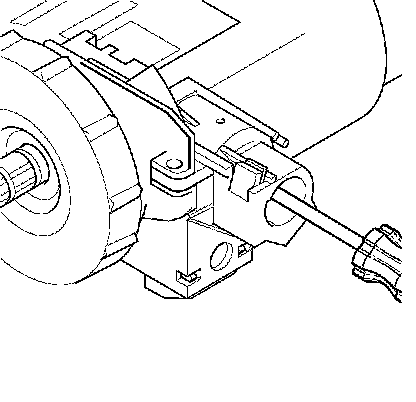

5. Use a screwdriver to rotate the ignition lock cylinder case gear clockwise to the START position allowing it to spring return into the RUN position.
6. Connect the passlock and key buzzer to the ignition lock cylinder case.
7. Install the theft deterrent module. Refer to Theft Deterrent Module Replacement (Service and Repair) .
8. Install the knee bolster. Refer to Driver Knee Bolster Replacement (Driver Knee Bolster Replacement) .
