2008 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE
Manifold Pressure/Vacuum Sensor: Service and Repair
Manifold Absolute Pressure Sensor Replacement
Removal Procedure

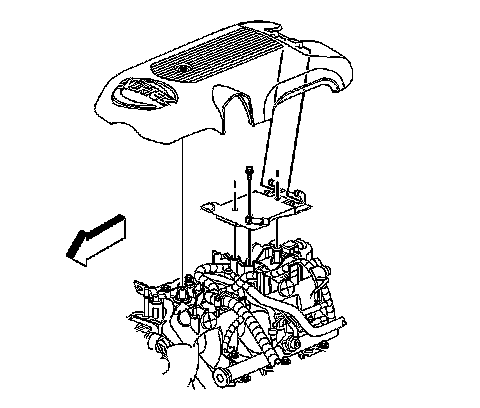

1. Remove the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (6.0L (LQ4)) (Upper Intake Manifold Sight Shield Replacement) .
2. Remove the engine sight shield bracket bolts. Position the bracket to the side
3. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.
4. Remove the MAP sensor (1) from the intake manifold.
Installation Procedure
Important: Lightly coat the MAP sensor seal with clean engine oil before installing the sensor.
1. Install the MAP sensor (1). Push the MAP sensor down in order to engage the sensor into the retainer.
2. Connect the MAP sensor electrical connector.
3. Position the engine harness and sight shield bracket to the intake manifold.
Notice: Refer to Fastener Notice (Fastener Notice) .
4. Install the engine sight shield bracket bolts.
Tighten the bracket bolts to 10 N.m (89 lb in).
5. Install the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (6.0L (LQ4)) (Upper Intake Manifold Sight Shield Replacement) .
