2008 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE

Powertrain Component Views



Powertrain Component Views

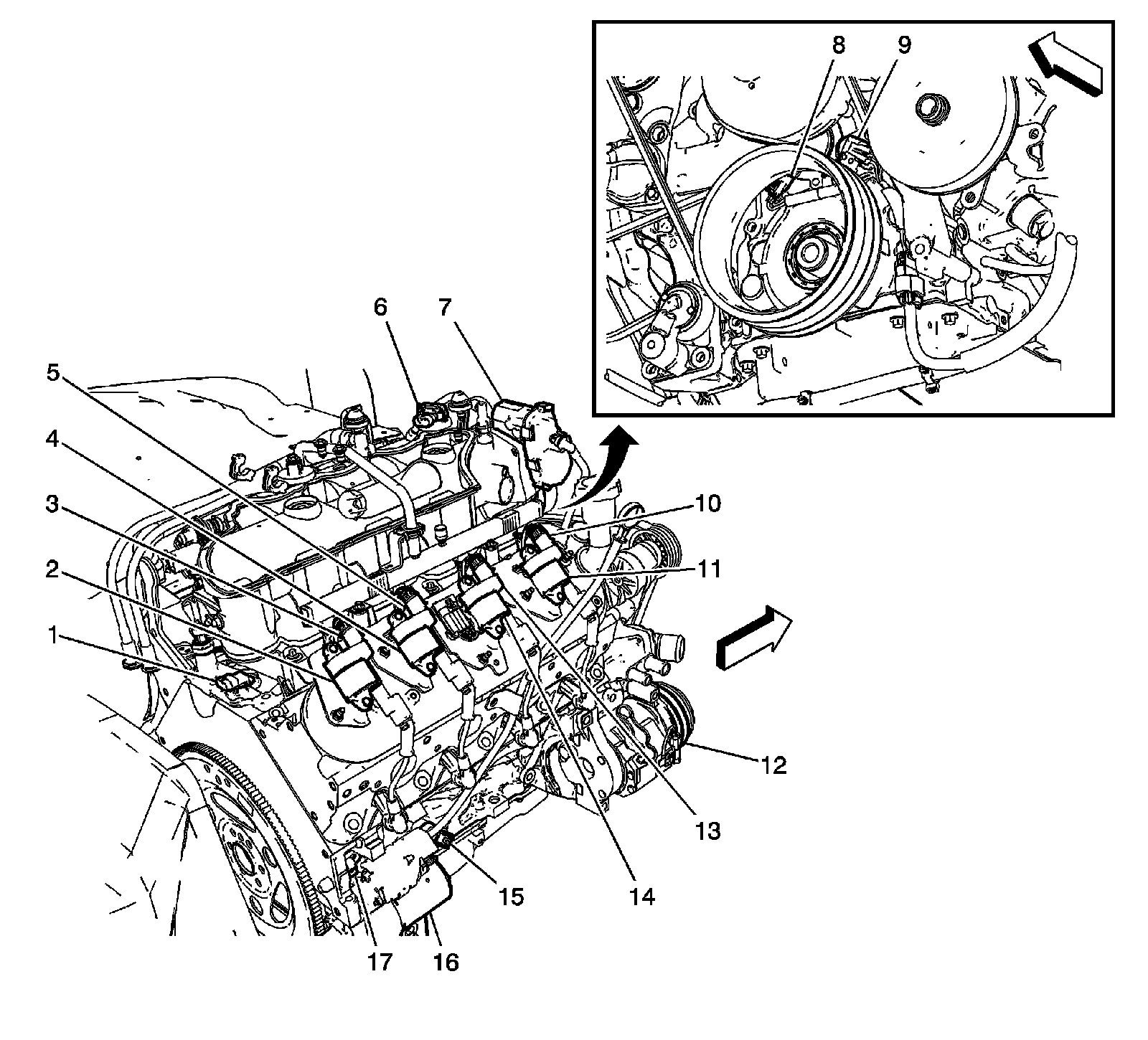

Engine - Left Rear (L92)

Factory service manual diagram



1 - Valve Lifter Oil Manifold Assembly (VLOM)
2 - Ignition Coil 8
3 - Fuel Injector 8
4 - Ignition Coil 6
5 - Fuel Injector 6
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Throttle Body Assembly
8 - Magnetic Sensor
9 - Camshaft Position (CMP) Sensor
10 - Fuel Injector 2
11 - Ignition 2
12 - A/C Compressor
13 - Fuel Injector 4
14 - Ignition Coil 4
15 - Knock Sensor (KS) 2
16 - Starter
17 - Crankshaft Position (CKP) Sensor

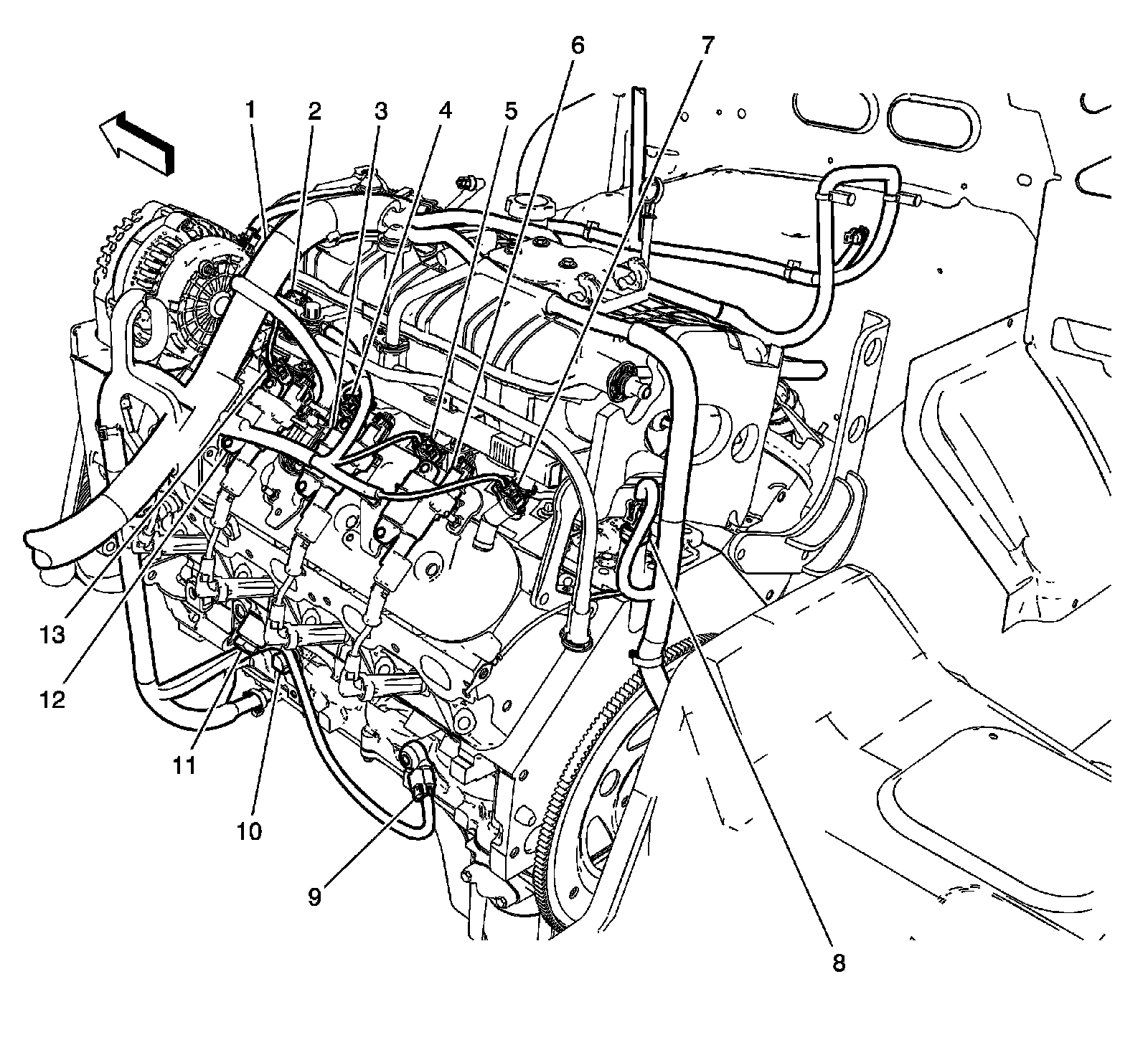

Engine - Right Rear (L92)

Factory service manual diagram



1 - Ignition Coil 1
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Ignition Coil 5
4 - Fuel Injector 3
5 - Fuel Injector 5
6 - Ignition Coil 7
7 - Fuel Injector 7
8 - Engine Oil Pressure (EOP) Sensor
9 - Knock Sensor (KS) 1
10 - Engine Coolant Temperature (ECT) Sensor
11 - Engine Block Heater Connector
12 - Ignition Coil 3
13 - Fuel Injector 1

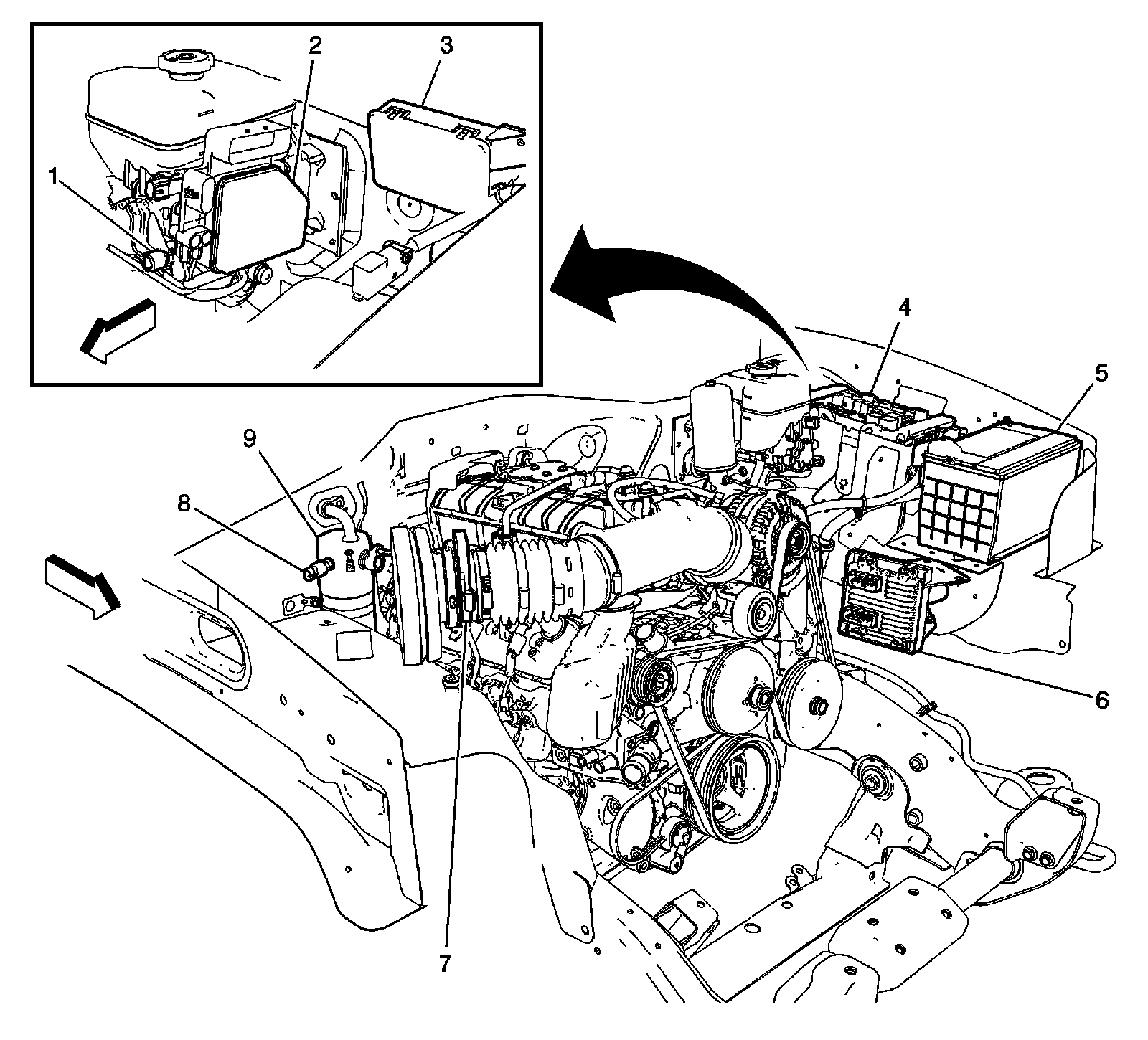

Engine Compartment

Factory service manual diagram



1 - Brake Fluid Level Switch
2 - Electronic Brake Control Module (EBCM)
3 - Throttle Actuator Control (TAC) Module
4 - Fuse Block-Underhood
5 - Battery
6 - Engine Control Module (ECM)
7 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
8 - A/C Low Pressure Switch
9 - Accumulator

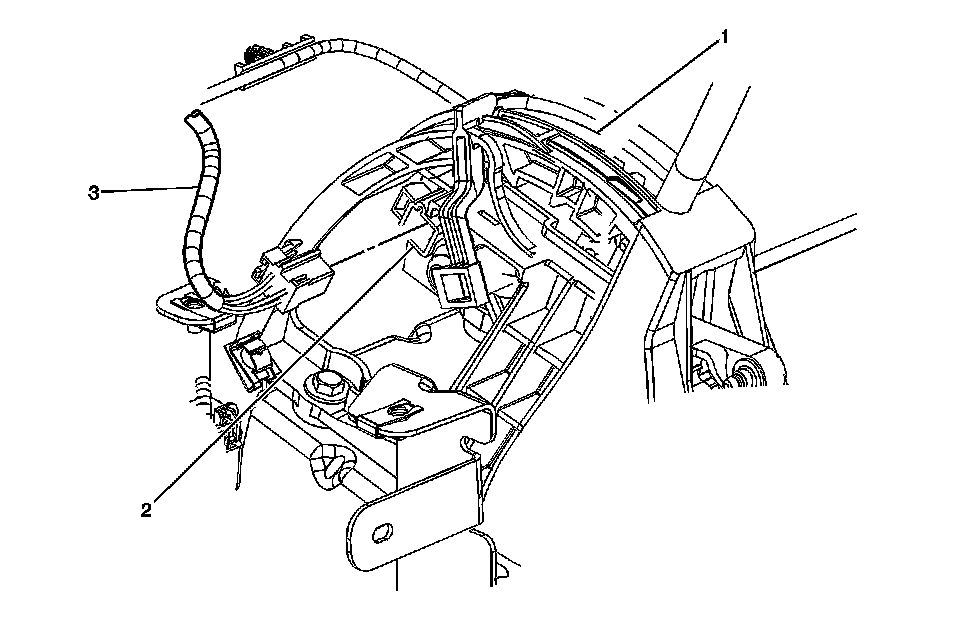

Automatic Transmission Shift Lever

Automatic Transmission Shift Lever:

Factory service manual diagram



1 - Automatic Transmission Shift Lever
2 - Automatic Transmission Shift Lever Connector
3 - Console Harness

Park Neutral Position (PNP) Switch

Park Neutral Position (PNP) Switch:

Factory service manual diagram



1 - Automatic Transmission 4L60-E/4L65-E/4L70-E
2 - Park/Neutral Position (PNP) Switch

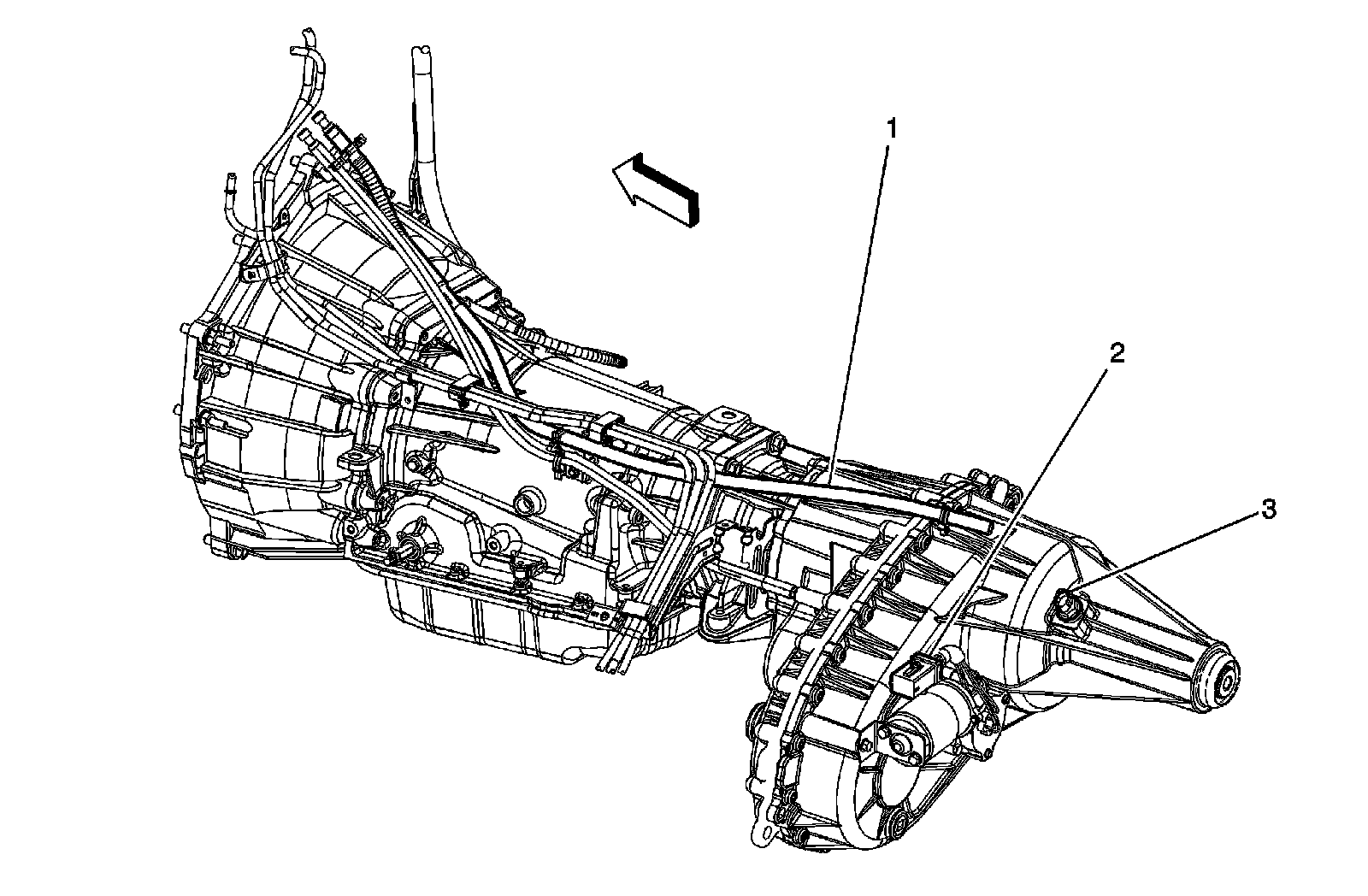

Transfer Case Components

Transfer Case Components:

Factory service manual diagram



1 - Transfer Case
2 - Transfer Case Encoder/Motor Connector
3 - Vehicle Speed Sensor (VSS)

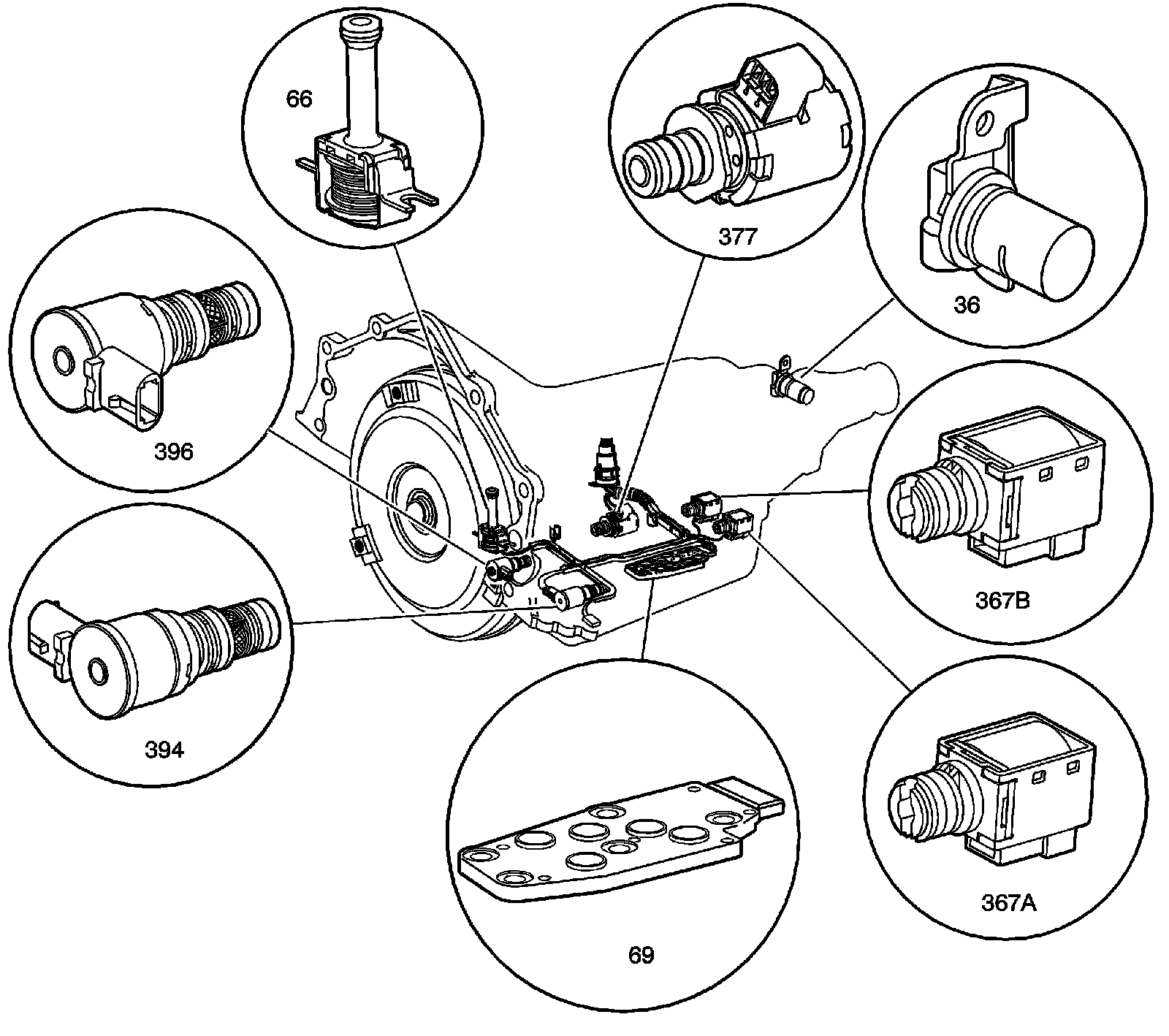

Electronic Components

Electronic Components:

Factory service manual diagram



36 - Vehicle Speed Sensor (VSS) - Model Dependent
66 - Torque Converter Clutch (TCC) Solenoid Valve
69 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
367a - 1-2 Shift Solenoid (SS) Valve
367b - 2-3 Shift Solenoid (SS) Valve
377 - Pressure Control (PC) Solenoid Valve
394 - 3-2 Shift Solenoid (SS) Valve Assembly
396 - Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve
