2008 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE
Front of Vehicle/Engine Compartment Component Views
Front of Vehicle/Engine Compartment Component Views

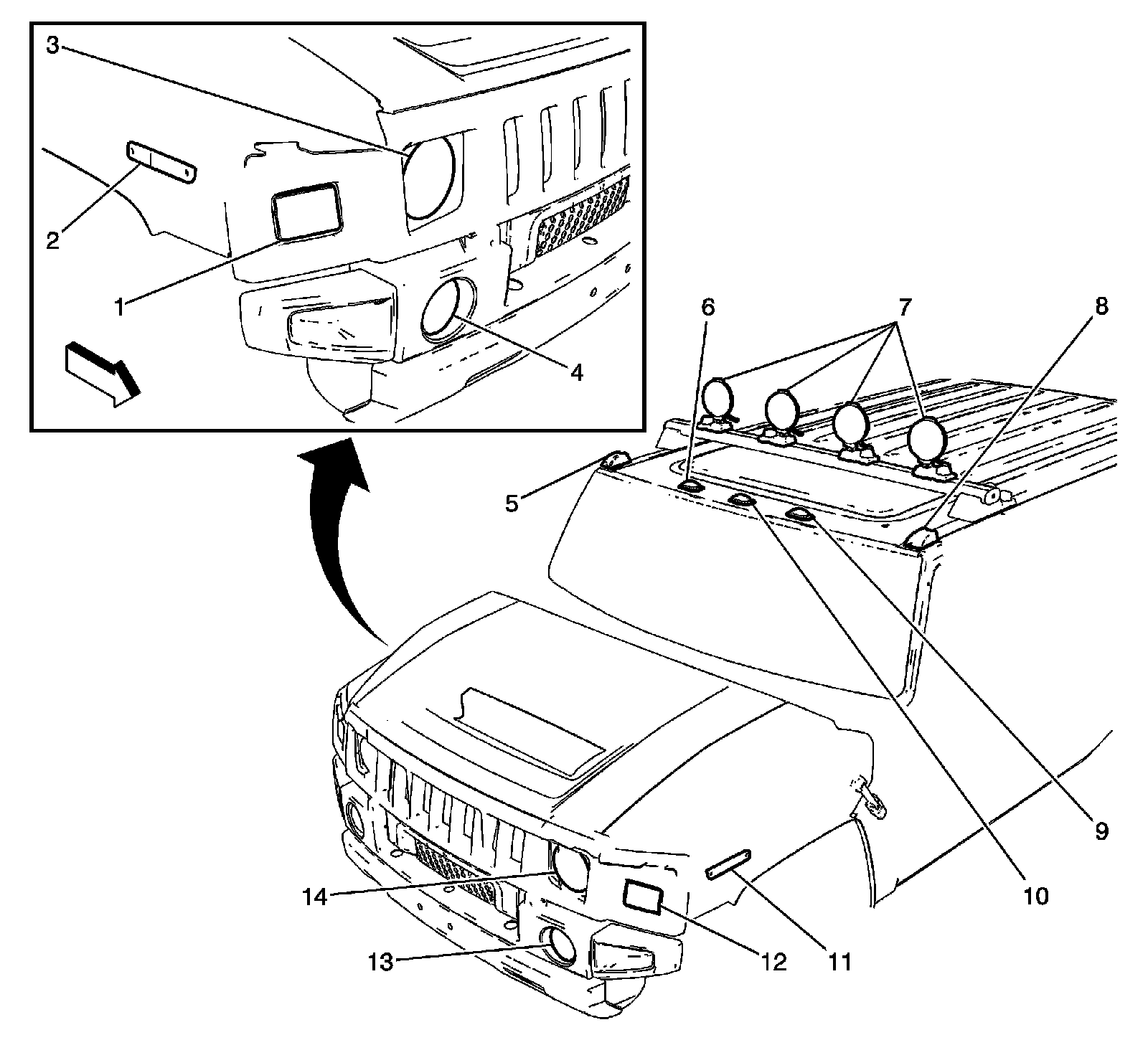

Front Exterior Lights
1 - Park/Turn Signal Lamp - Right Front
2 - Marker Lamp - Right Front
3 - Headlamp - Right
4 - Daytime Running Lamp (DRL) - Right
5 - Clearance Lamp - Right Front
6 - Roof Marker Lamp - Front Right
7 - Off Road Lamps
8 - Clearance Lamp - Left Front
9 - Roof Marker Lamp - Front Left
10 - Roof Marker Lamp - Front Center
11 - Marker Lamp - Left Front
12 - Park/Turn Signal Lamp - Left Front
13 - Daytime Running Lamp (DRL) - Left
14 - Headlamp - Left

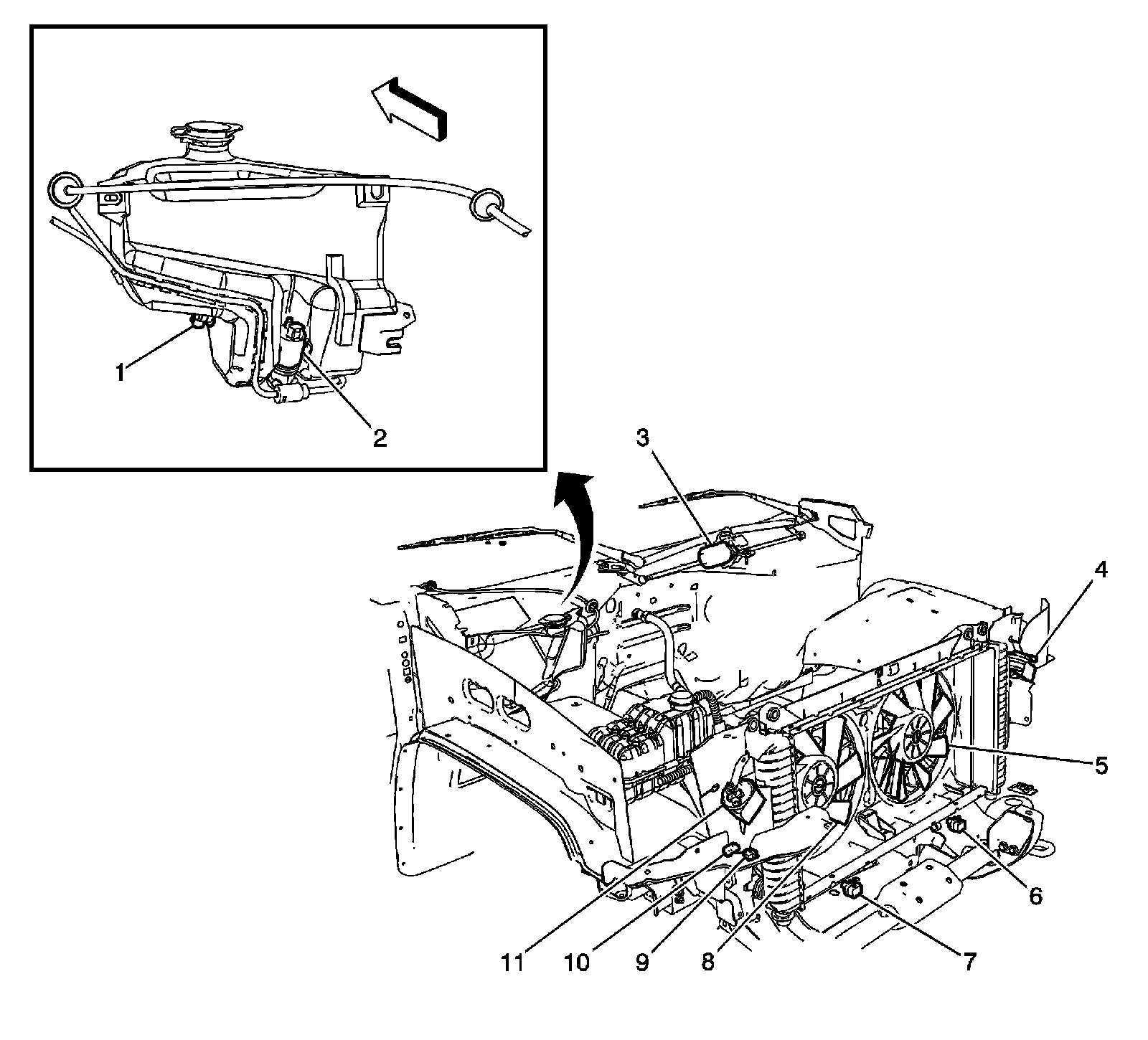

Engine Compartment
1 - Washer Fluid Level Sensor
2 - Window Washer Fluid Pump
3 - Windshield Wiper Motor and Module
4 - Horn-Left
5 - Cooling Fan-Left
6 - Inflatable Restraint Front Sensor - Left
7 - Inflatable Restraint Front Sensor - Right
8 - Cooling Fan-Right
9 - Ambient Air Temperature Sensor - HVAC
10 - Ambient Air Temperature Sensor - Mirror
11 - Horn-Right
Engine Compartment
1 - Brake Fluid Level Switch
2 - Electronic Brake Control Module (EBCM)
3 - Throttle Actuator Control (TAC) Module
4 - Fuse Block-Underhood
5 - Battery
6 - Engine Control Module (ECM)
7 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
8 - A/C Low Pressure Switch
9 - Accumulator
