2008 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE
Steering Gear

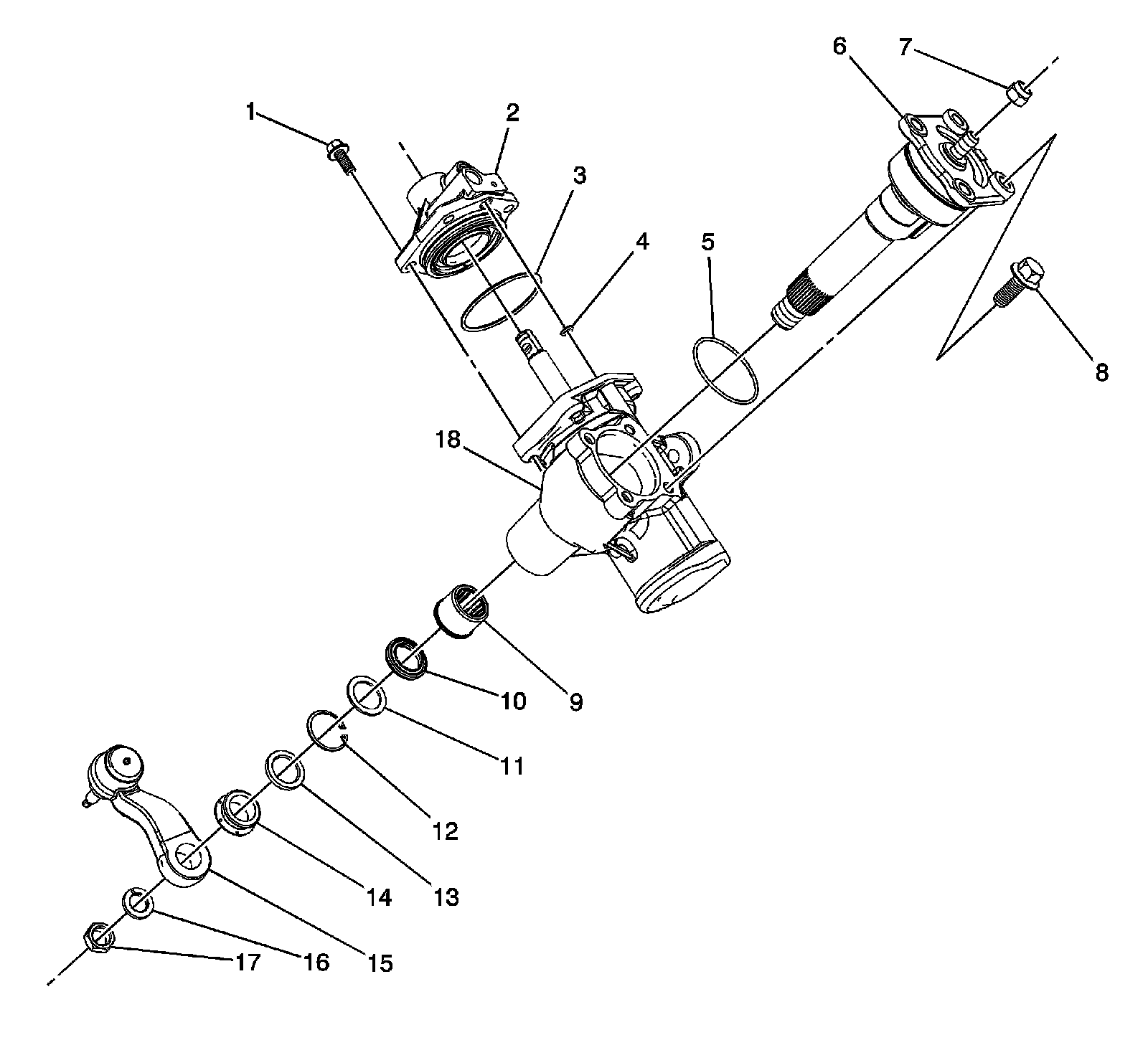

Power Steering Gear Disassembled View (680 Gear)
Power Steering Gear Disassembled View (680 Gear):
1 - Stub Shaft Housing Bolt
2 - Stub Shaft Housing
3 - Stub Shaft Housing O-Ring
4 - Stub Shaft Housing O-Ring
5 - Steering Gear Pitman Shaft Housing Cover O-Ring
6 - Steering Gear Pitman Shaft and Housing Cover
7 - Steering Gear Pitman Shaft Lash Adjuster Nut
8 - Steering Gear Pitman Shaft Housing Cover Bolt
9 - Steering Gear Pitman Shaft Bearing
10 - Steering Gear Pitman Shaft Seal
11 - Steering Gear Pitman Shaft Washer
12 - Steering Gear Pitman Shaft Seal Retaining Ring
13 - Dust Seal
14 - Pitman Arm Boot
15 - Pitman Arm
16 - Pitman Arm Washer
17 - Pitman Arm Nut
18 - Steering Gear Housing
