2008 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE
Instrument Panel/Center Console Component Views
Instrument Panel/Center Console Component Views

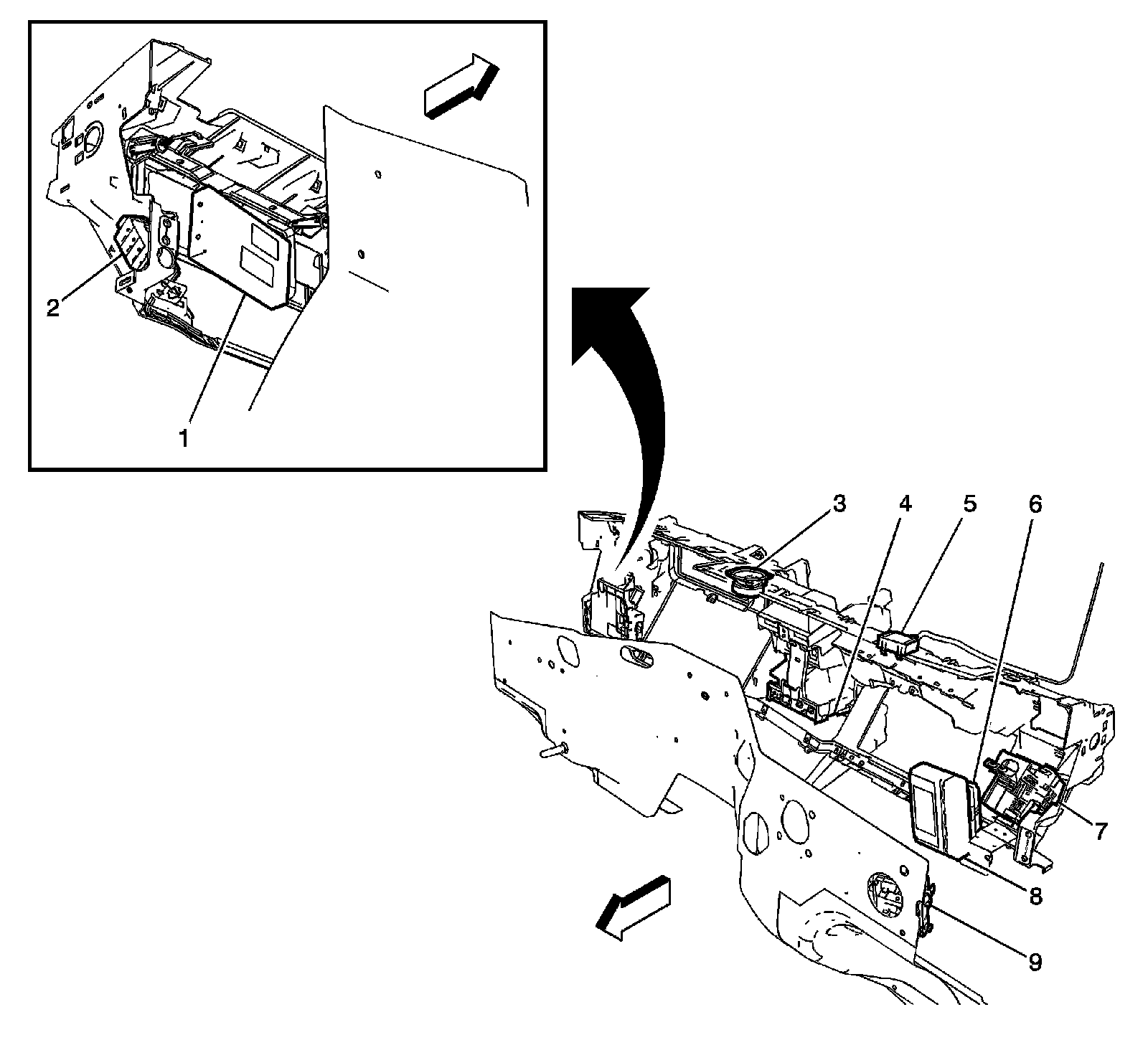

Instrument Panel Harness Components
1 - Digital Radio Receiver (U2K)
2 - Junction Block - I/P
3 - Speaker - Center
4 - Vehicle Communication Interface Module (VCIM) (UE9)
5 - Remote Control Door Lock Receiver (RCDLR)
6 - Transfer Case Shift Control Module
7 - Fuse Block - I/P
8 - Body Control Module (BCM)
9 - Junction Block - Body

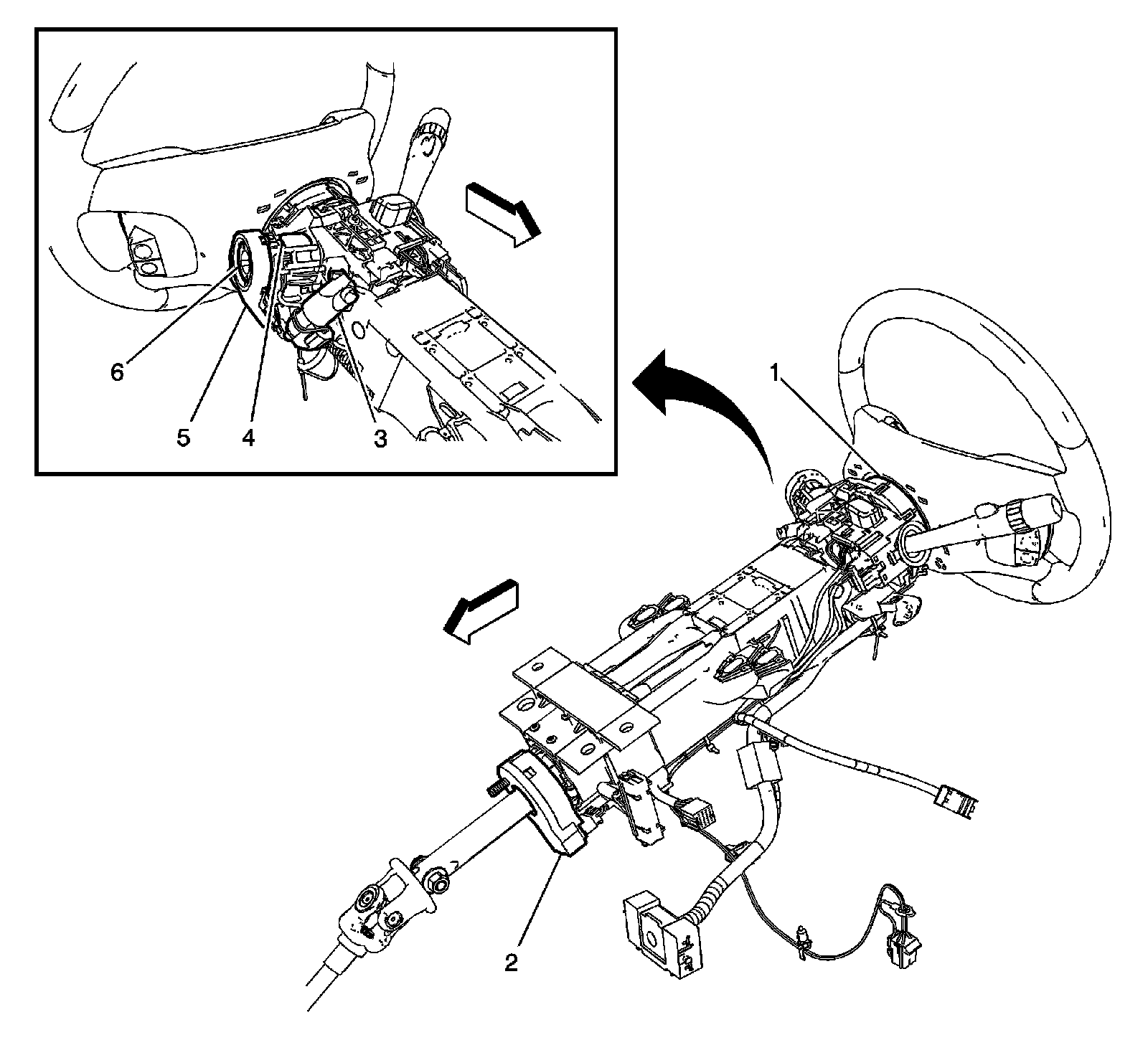

Steering Column Components
1 - Inflatable Restraint Steering Wheel Module Coil
2 - Steering Angle Sensor
3 - Ignition Lock Cylinder Solenoid
4 - Ignition Key Cylinder Case
5 - Theft Deterrent Module
6 - Ignition Key

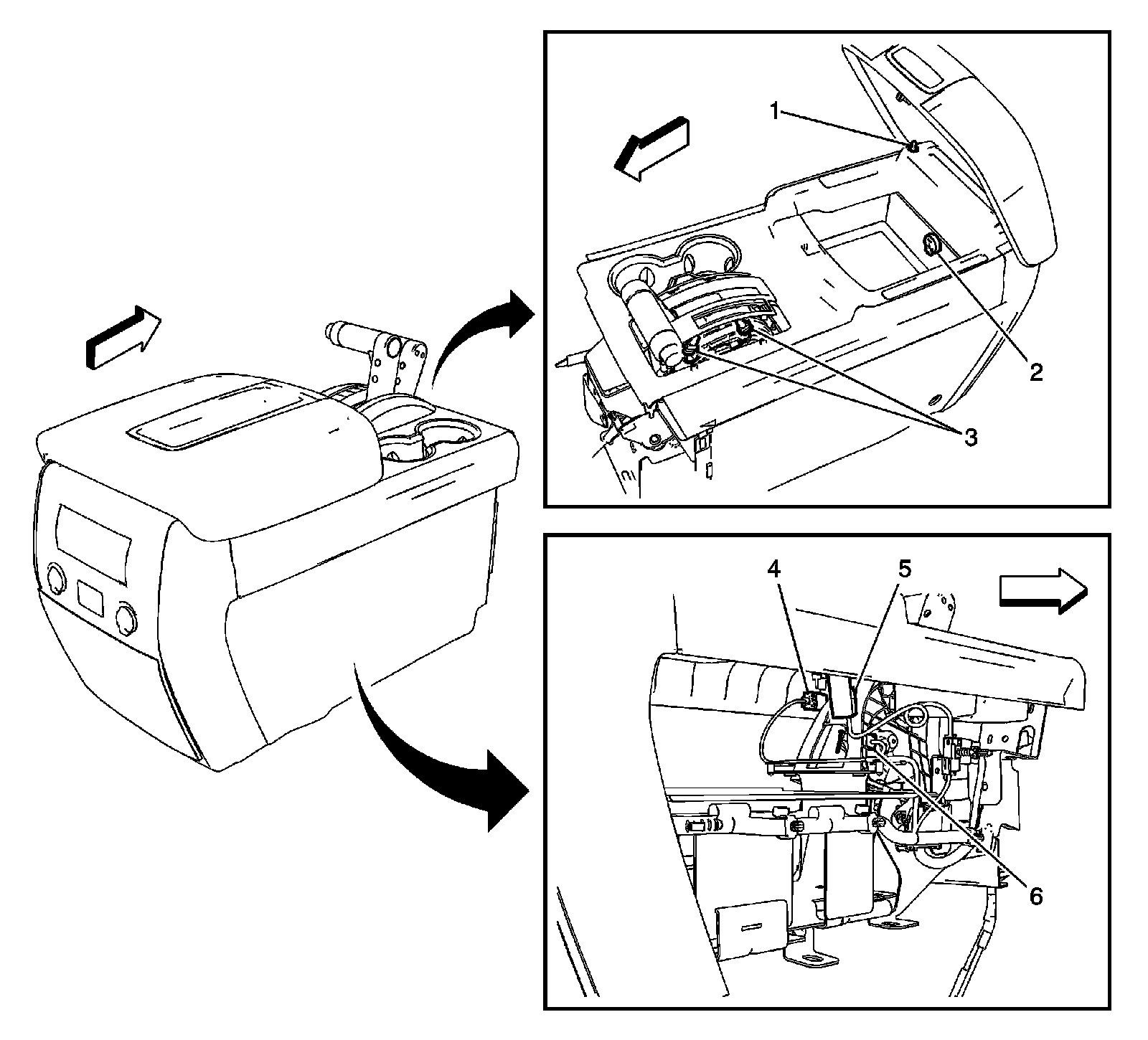

Floor Console Components
1 - Console Bin Lamp Switch
2 - Auxiliary Power Outlet-Console
3 - PRNDL Lamps
4 - X356
5 - Console Bin Lamp
6 - Automatic Transmission Shift Lock Control Solenoid
