2008 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE
Front of Vehicle/Engine Compartment Component Views

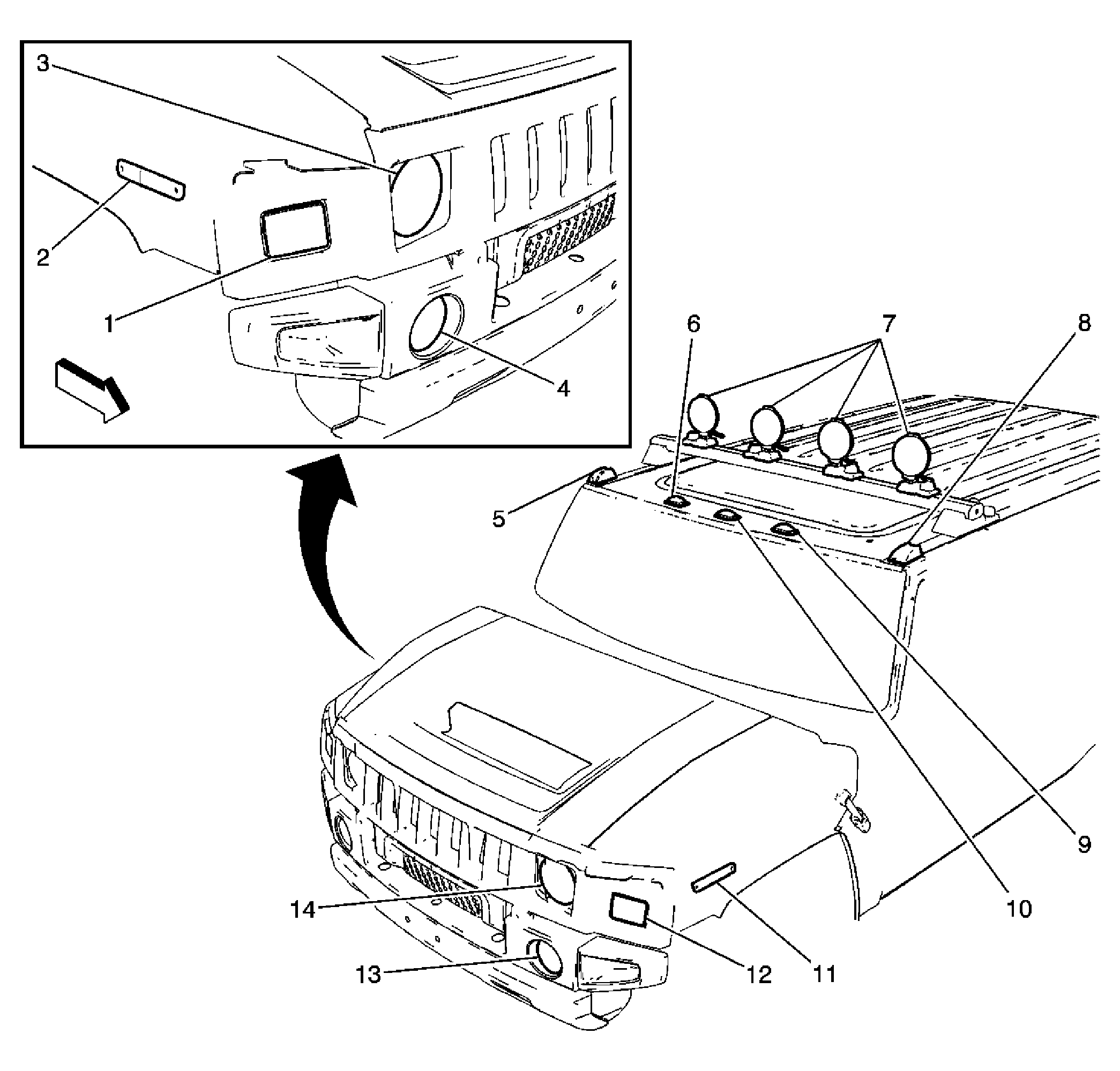

| Callout | Component Name |
|---|---|
| 1 | Park/Turn Signal Lamp - Right Front |
| 2 | Marker Lamp - Right Front |
| 3 | Headlamp - Right |
| 4 | Daytime Running Lamp (DRL) - Right |
| 5 | Clearance Lamp - Right Front |
| 6 | Roof Marker Lamp - Front Right |
| 7 | Off Road Lamps |
| 8 | Clearance Lamp - Left Front |
| 9 | Roof Marker Lamp - Front Left |
| 10 | Roof Marker Lamp - Front Center |
| 11 | Marker Lamp - Left Front |
| 12 | Park/Turn Signal Lamp - Left Front |
| 13 | Daytime Running Lamp (DRL) - Left |
| 14 | Headlamp - Left |

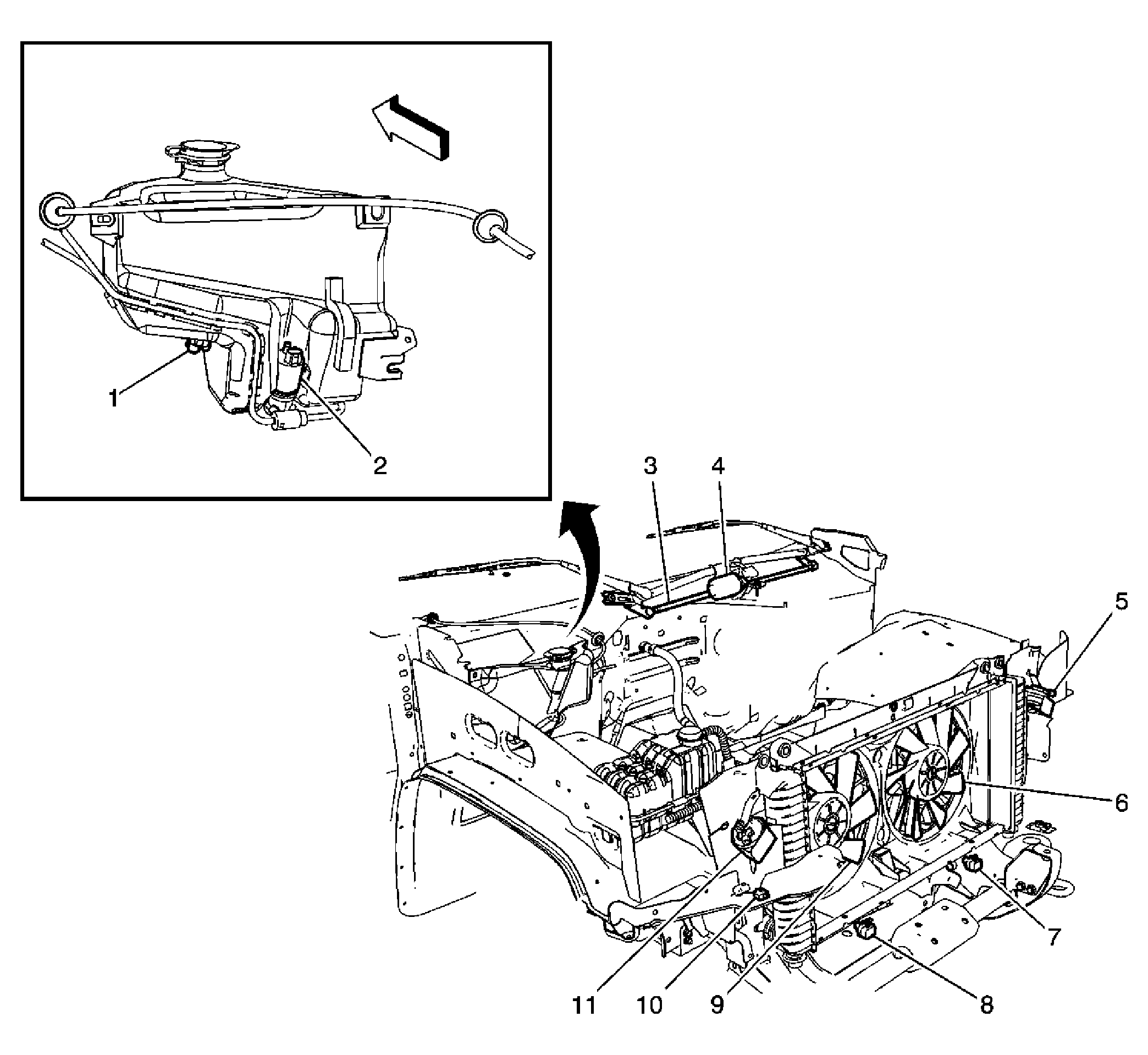

| Callout | Component Name |
|---|---|
| 1 | Washer Fluid Level Sensor |
| 2 | Window Washer Fluid Pump |
| 3 | Windshield Wiper Motor and Module |
| 4 | Horn-Left |
| 5 | Cooling Fan-Left |
| 6 | Inflatable Restraint Front Sensor - Left |
| 7 | Inflatable Restraint Front Sensor - Right |
| 8 | Cooling Fan-Right |
| 9 | Ambient Air Temperature Sensor - HVAC |
| 10 | Ambient Air Temperature Sensor - Mirror |
| 11 | Horn-Right |
| Callout | Component Name |
|---|---|
| 1 | Brake Fluid Level Switch |
| 2 | Electronic Brake Control Module (EBCM) |
| 3 | Throttle Actuator Control (TAC) Module |
| 4 | Fuse Block-Underhood |
| 5 | Battery |
| 6 | Engine Control Module (ECM) |
| 7 | Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor |
| 8 | A/C Low Pressure Switch |
| 9 | Accumulator |
