2008 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE

Remote Control Door Lock Receiver Replacement

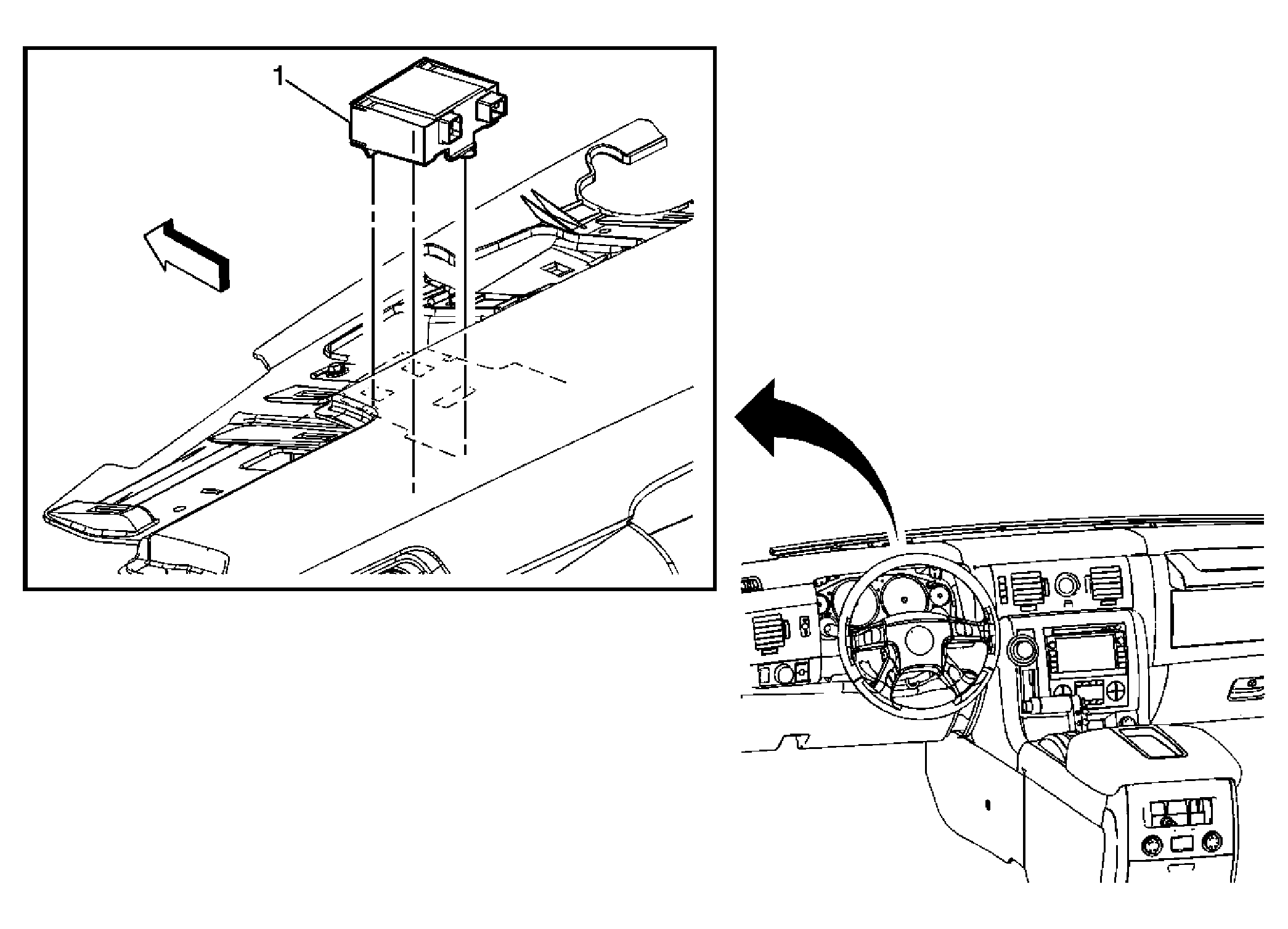

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the receiver from the panel.
For reprogramming and set up, refer to Control Module References .
