2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Starting and Charging: Locations
Engine Electrical Component Views

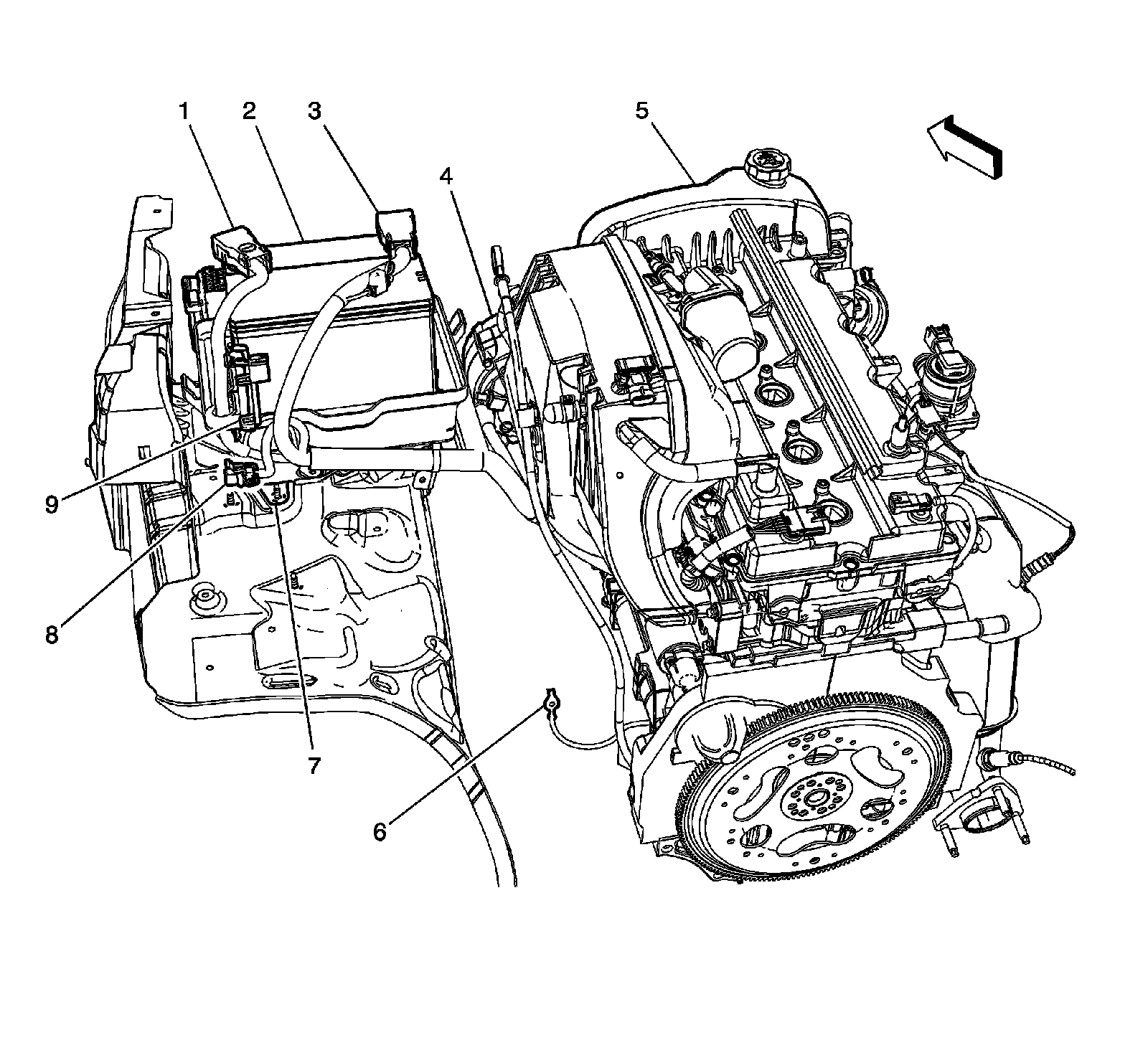

Engine Electrical Components
1 - Negative Battery Cable
2 - Battery
3 - Positive Battery Cable
4 - Generator
5 - Engine-LRR
6 - G120
7 - G100
8 - C130 (UE1)
9 - Generator Control Module
Engine Electrical Components 1 of 2
1 - Battery Positive Cable
2 - Starter Solenoid
3 - Starter Motor
4 - G100
5 - OnStar Fuse
6 - Battery
7 - Generator Connector
8 - Generator
Engine Electrical Components 2 of 2
1 - Ignition Switch
2 - Clutch Pedal (MA5)
3 - Clutch Release Switch (MA5)
4 - Clutch Start Switch (MA5)
