2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE

Powertrain Management: Locations



Engine Controls Component Views

Secondary Air Injection (AIR) Components

Factory service manual diagram



1 - Secondary Air Injection (AIR) Solenoid
2 - Secondary Air Injection (AIR) Pump Relay
3 - Secondary Air Injection (AIR) Pump

Engine Controls Components

Factory service manual diagram



1 - Powertrain Control Module C1 (Body Harness)
2 - Powertrain Control Module
3 - Heated Oxygen Sensor (HO2S) 2
4 - Fuse Block - Underhood
5 - Engine Harness
6 - Heated Oxygen Sensor (HO2S) 1
7 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
8 - Powertrain Control Module C3 (Engine Harness)
9 - Powertrain Control Module C2 (Engine Harness)

Engine Components - Right Side (L52)

Factory service manual diagram



1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body
3 - Ignition Coil 3
4 - Ignition Coil 2
5 - Ignition Coil 1
6 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
7 - Engine Oil Pressure (EOP) Switch
8 - Heated Oxygen Sensor (HO2S) 1
9 - Engine Coolant Temperature (ECT) Sensor
10 - Engine Coolant Temperature (ECT) Sensor Connector
11 - C101 Fuel Injector Harness to Engine Harness
12 - Ignition Coil 5
13 - Ignition Coil 4

Engine Components - Left Side (L52)

Factory service manual diagram



1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Starter Solenoid
3 - Knock Sensor (KS) Bank 2
4 - Crankshaft Position (CKP) Sensor
5 - G102
6 - G103
7 - Engine Block Heater
8 - Camshaft Position (CMP) Sensor - Intake
9 - Camshaft Position (CMP) Sensor - Exhaust

Fuel Injectors

Factory service manual diagram



1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Fuel Injector 4
5 - C101 Fuel Injector Harness to Engine Harness
6 - Fuel Injector 5

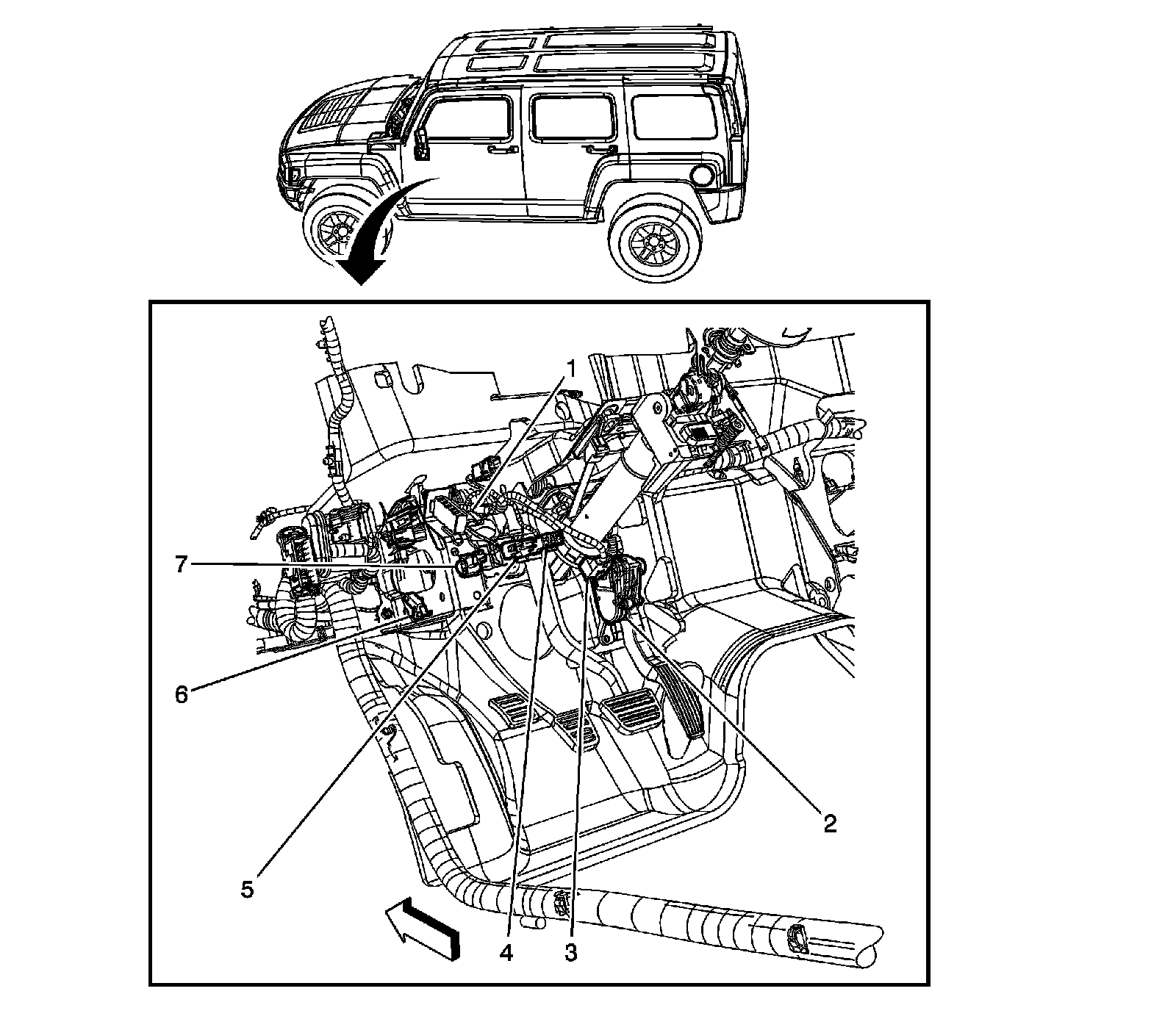

Lower Left Side of I/P

Lower Left Side of I/P:

Factory service manual diagram



1 - Clutch Start Switch (MA5)
2 - Accelerator Pedal Position (APP) Sensor
3 - Steering Wheel Position Sensor (JL4)
4 - TCC Brake/Cruise Release Switch
5 - Stop Lamp Switch
6 - Park Brake Switch
7 - Clutch Release Switch (MA5)

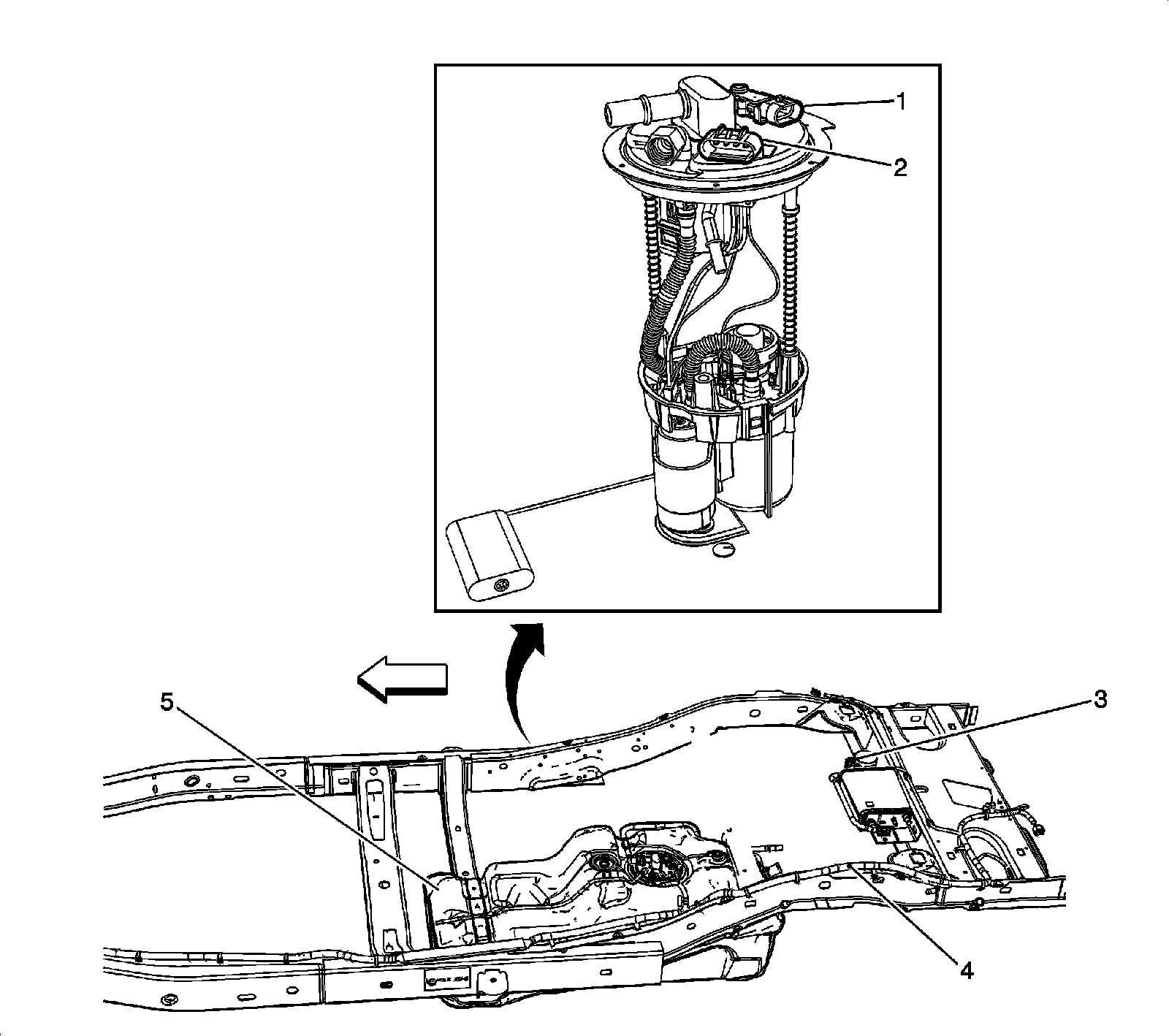

Left Middle Side of Frame Rail

Factory service manual diagram



1 - Fuel Tank Pressure (FTP) Sensor Connector
2 - Fuel Pump and Sender Assembly
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Chassis Harness
5 - Fuel Tank
