2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Ignition System: Testing and Inspection
Electronic Ignition (EI) System Diagnosis
Circuit Description
The ignition system uses individual ignition coil/module assemblies for each cylinder. The powertrain control module (PCM) controls the individual coils by transmitting timing pulses on the ignition control (IC) circuit of each ignition coil/module to enable a spark event. The PCM monitors each IC circuit for improper voltage levels. Each ignition coil/module has the following circuits:
* An ignition voltage circuit
* A ground
* An IC circuit
Test

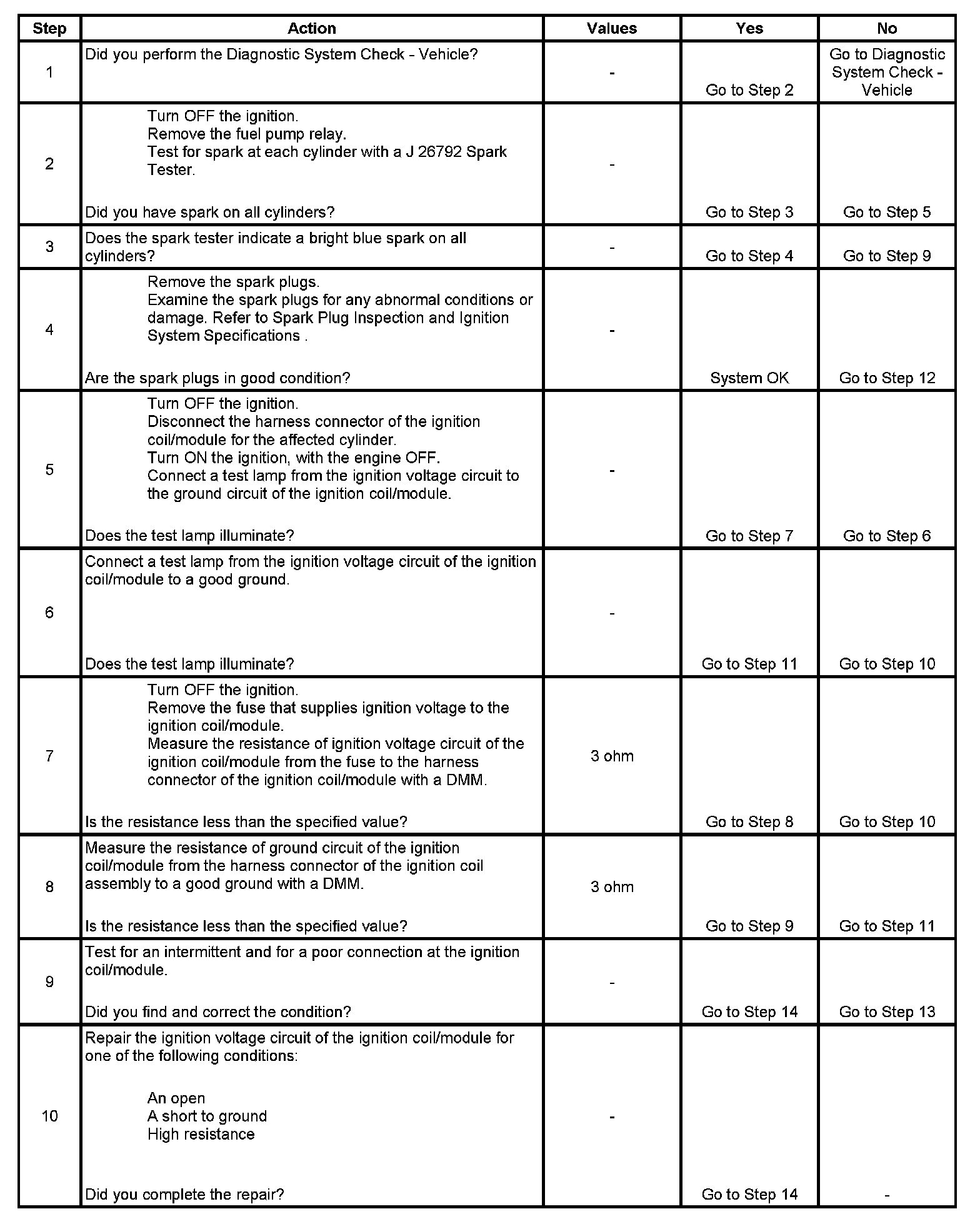

Step 1 - Step 10:

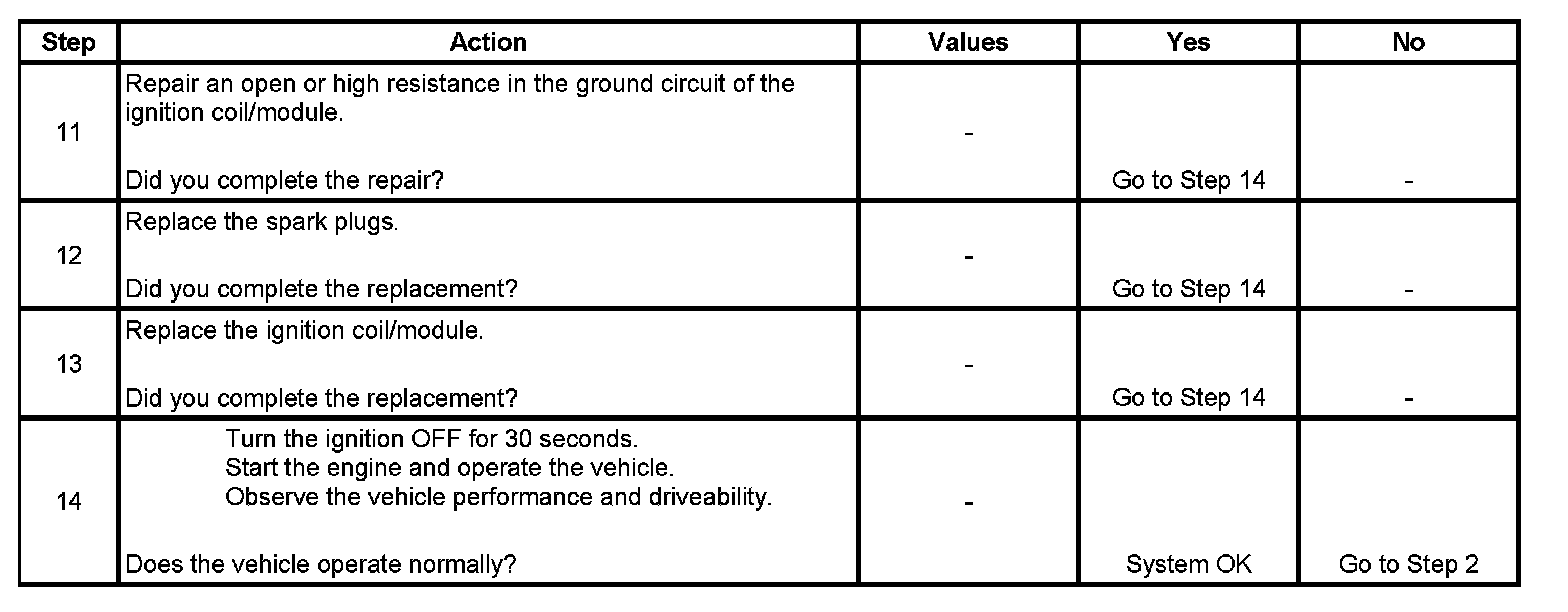

Step 11 - Step 14:
