2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Ignition Coil: Service and Repair
Ignition Coil Replacement
Removal Procedure
1. Remove the air cleaner resonator and outlet duct.

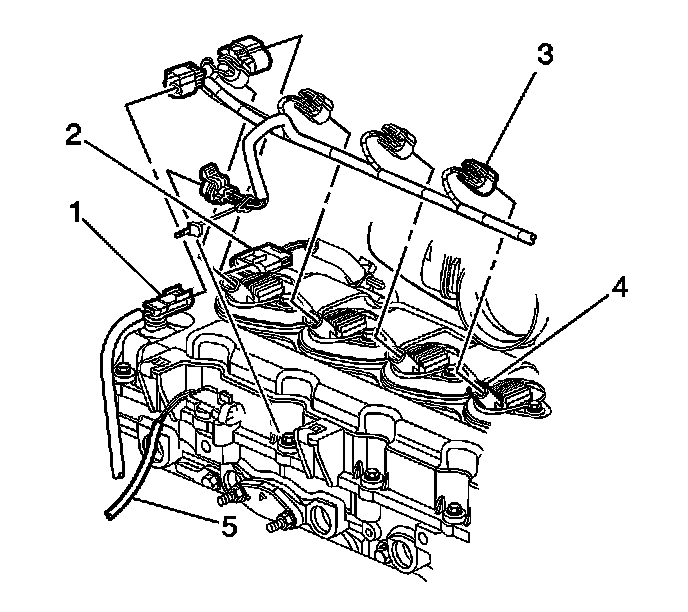

2. Disconnect the ignition coil connectors (3) from the ignition coils (4).
3. Remove the ignition coil bolts.
4. Remove the ignition coils from the camshaft cover.
Installation Procedure
Important: Ensure the ignition coil seals are properly seated to the camshaft cover.

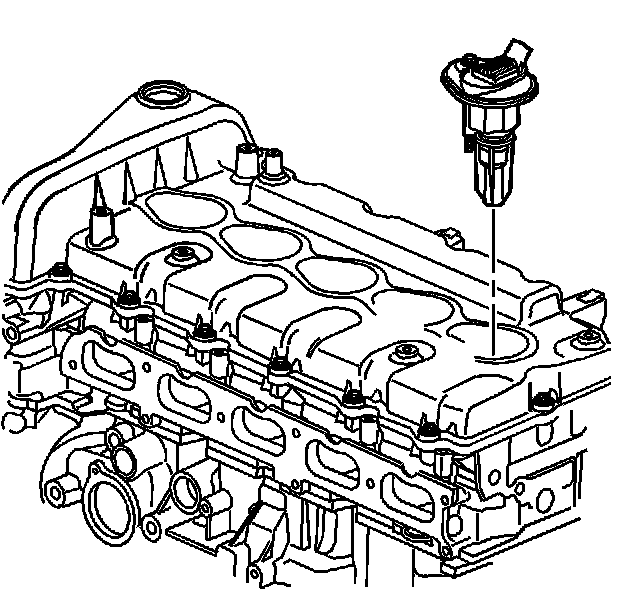

1. Install the ignition coils into the camshaft cover.
Notice: Refer to Fastener Notice.
2. Install the ignition coil bolts.
Tighten the bolts to 10 N.m (89 lb in).
3. Connect the ignition coil connectors (3) to the ignition coils (4).
4. Install the air cleaner resonator and outlet duct.
