2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Fuse Block Views
Power and Grounding Component Views

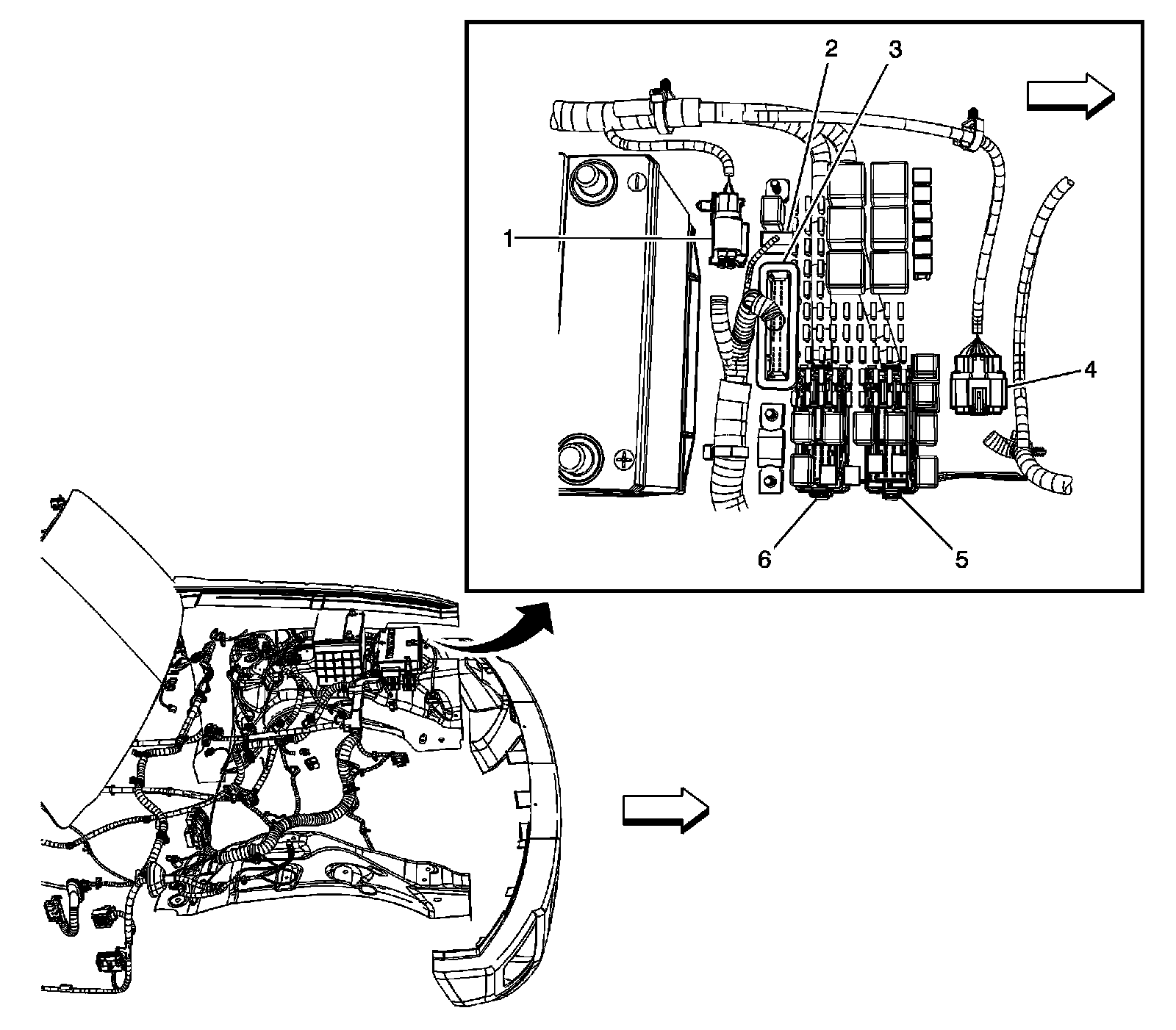

Fuse Block - Underhood Connectors
1 - C125 Body Harness to Engine Harness (Transfer Case)
2 - Fuse Block - Underhood C4 (Engine Harness)
3 - Fuse Block - Underhood C3 (Engine Harness)
4 - C115 Forward Lamp Harness to Body Harness
5 - Fuse Block - Underhood C1 (Body Harness)
6 - Fuse Block - Underhood C2 (Body Harness)
