2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Brake Switch (Cruise Control): Service and Repair
Cruise Release Switch Replacement
Removal Procedure

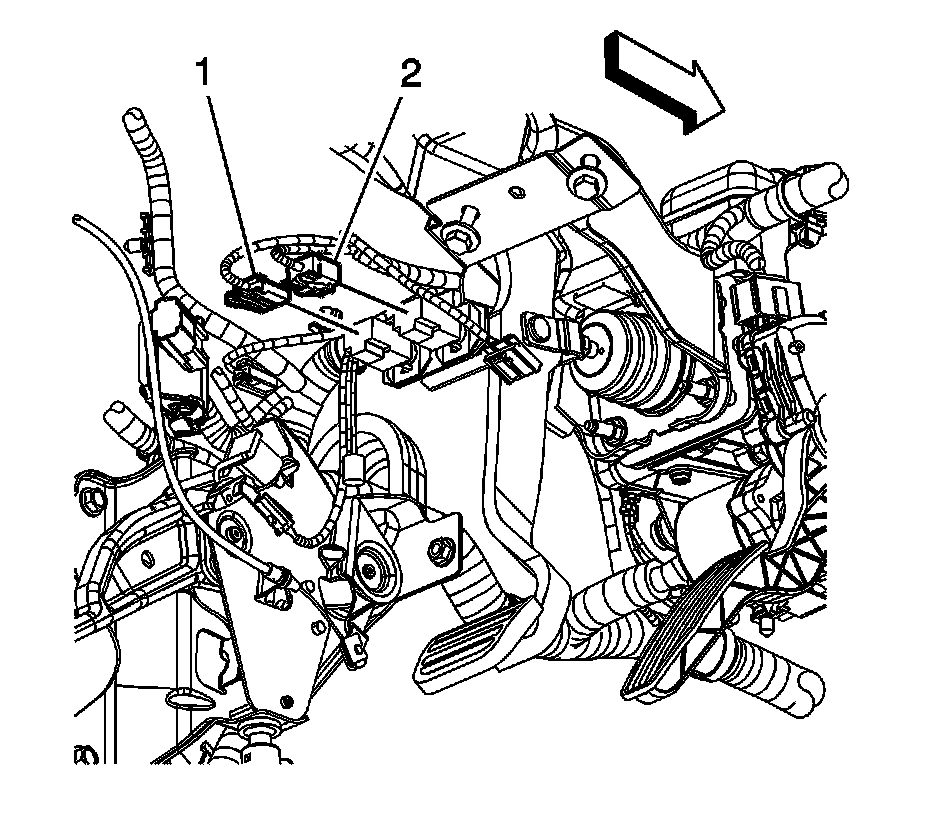

1. Disconnect the cruise control release switch electrical connector (1).

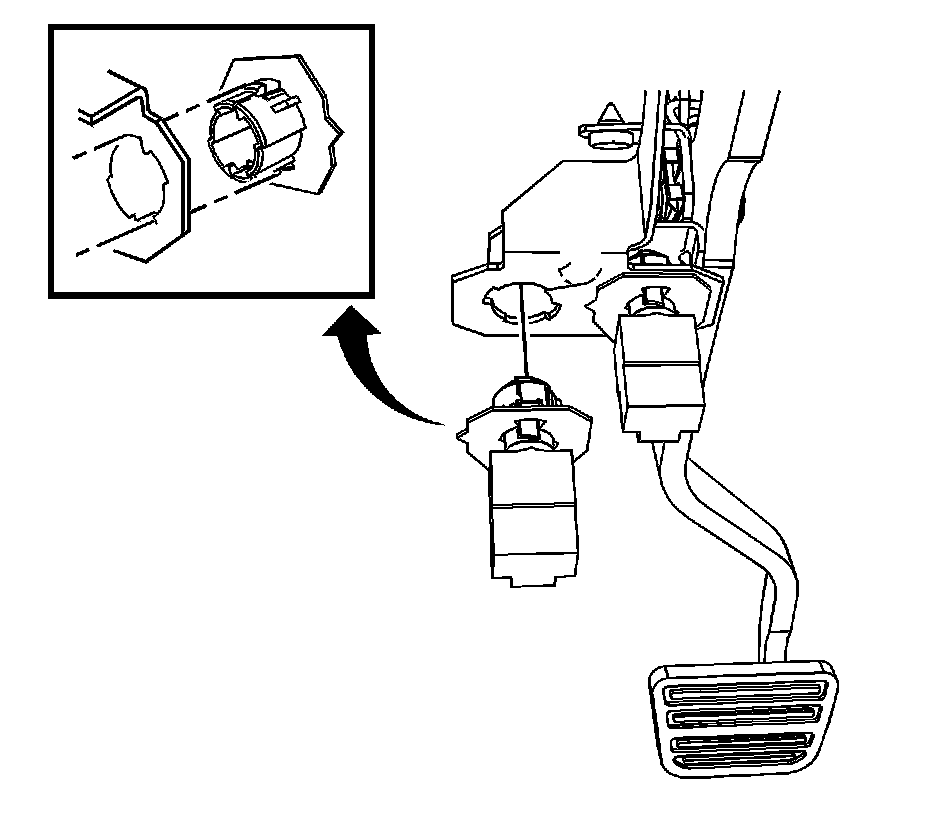

2. Complete the following in order to remove the cruise release switch from the brake pedal bracket:
1. Rotate the switch counterclockwise.
2. Pull the switch from the retainer.
3. Push the locking tabs inward to release the retainer.
Installation Procedure
Adjust the cruise control release switch. Refer to Cruise Release Switch Adjustment.
