2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Seat Temperature Control Module: Locations
Power Seat Component Views

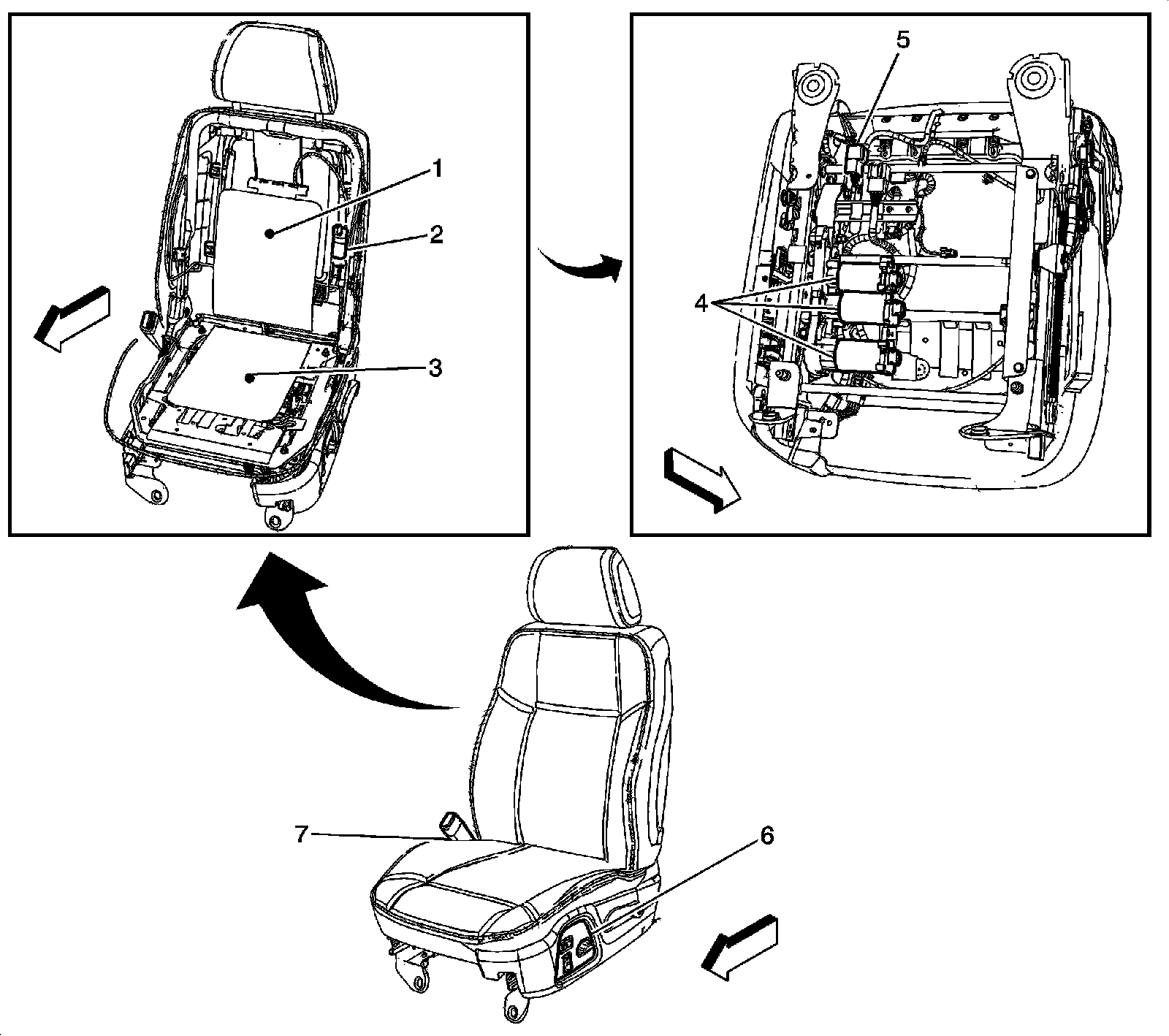

Driver Seat Components
1 - Heater Element Seat Back - Driver (KA1)
2 - Lumbar Pump Motor - Driver (AG1)
3 - Heater Element Seat Cushion - Driver (KA1)
4 - S306 (AG1)
5 - S312 (AG1)
6 - Seat Circuit Breaker (AG1)
7 - C307 (AG1)
8 - C308
9 - Heated Seat Module - Driver (KA1)
10 - Inflatable Restraint Seat Position Sensor (SPS) - Left
11 - Seat Motors - Driver (AG1)
12 - Seat Adjuster Switch - Driver (AG1)
13 - Lumbar Adjuster/Heater Switch - Driver (AG1)
14 - Seat Belt Buckle - Driver

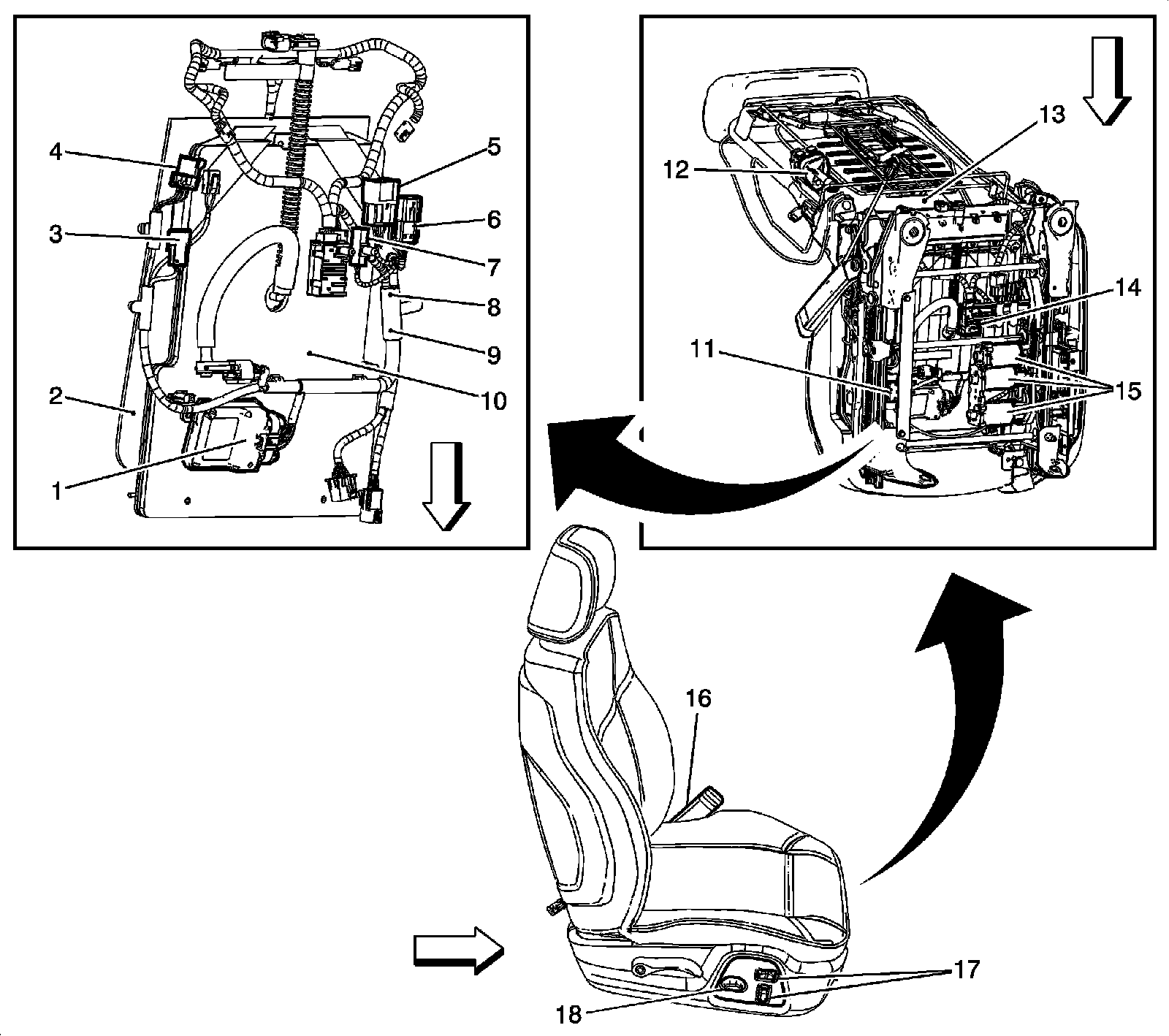

Passenger Seat Components
1 - Inflatable Restraint Passenger Presence System (PPS) Module
2 - Heater Element Seat Cushion - Passenger (KA1)
3 - Seat Belt Buckle - Passenger C1
4 - Seat Belt Buckle - Passenger C2
5 - C320
6 - C315
7 - C318 (AG2)
8 - S341 (AG2)
9 - S316 (AG2)
10 - Inflatable Restraint Passenger Presence System (PPS)
11 - Inflatable Restraint Seat Position Sensor (SPS) - Right
12 - Lumbar Pump Motor - Passenger (AG2)
13 - Heater Element Seat Back - Passenger (KA1)
14 - Heated Seat Module - Passenger (KA1)
15 - Seat Motors - Passenger (AG2)
16 - Seat Belt Buckle - Passenger
17 - Lumbar Adjuster/Heater Switch - Passenger (AG2)
18 - Seat Adjuster Switch - Passenger (AG2)
