2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Locks: Locations
Vehicle Access Component Views

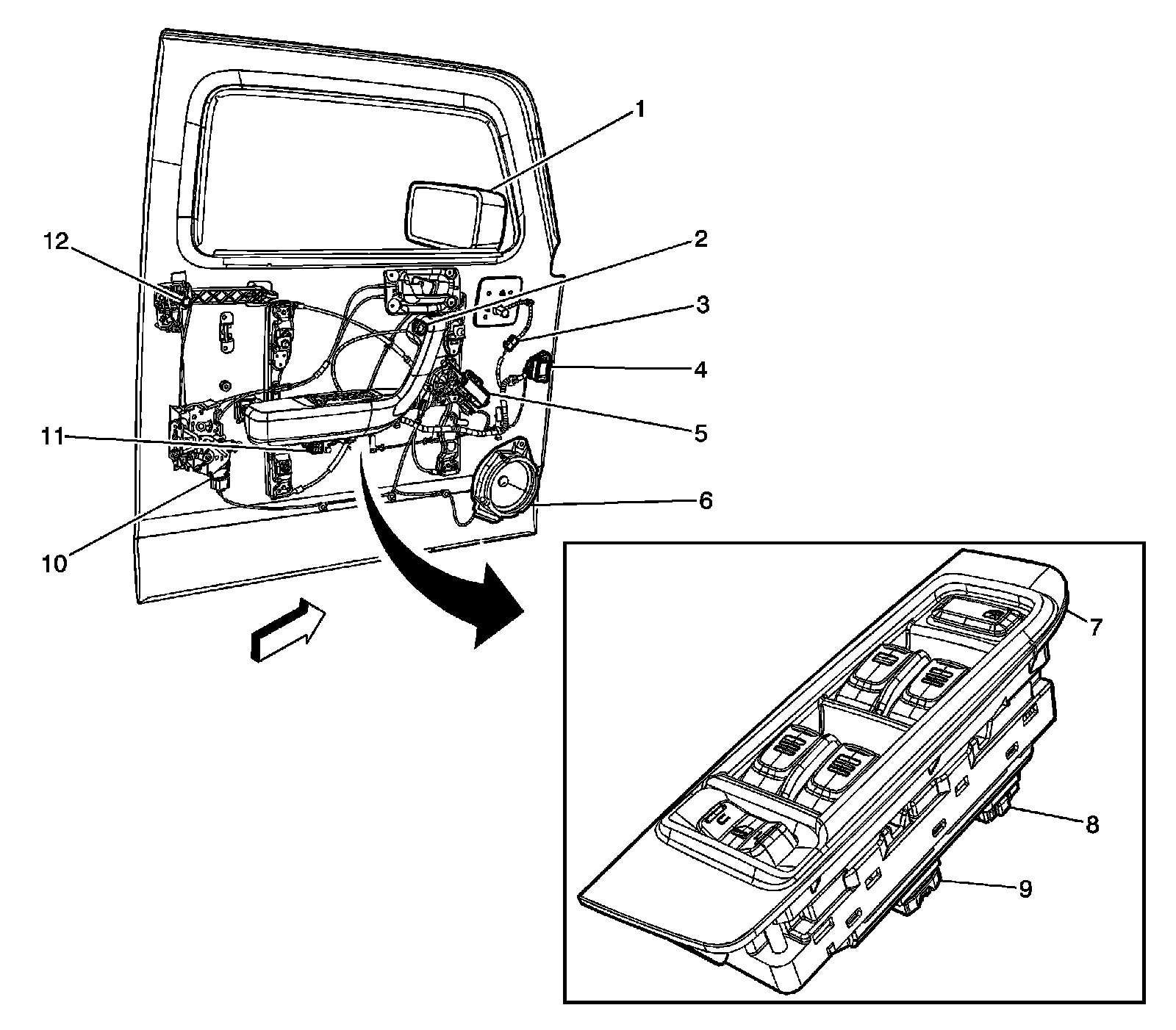

Driver Door Components
1 - Outside Rearview Mirror - Driver
2 - Outside Rearview Mirror Switch
3 - C510 Driver Door Harness to Outside Rearview Mirror Harness
4 - C500 Door Harness to Body Harness
5 - Window Motor - Driver
6 - Speaker - LF Door
7 - Door Lock and Window Switch - Driver
8 - Door Lock and Window Switch - Driver C1
9 - Door Lock and Window Switch - Driver C2
10 - Door Lock Actuator - Driver
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12 - Key Lock Cylinder

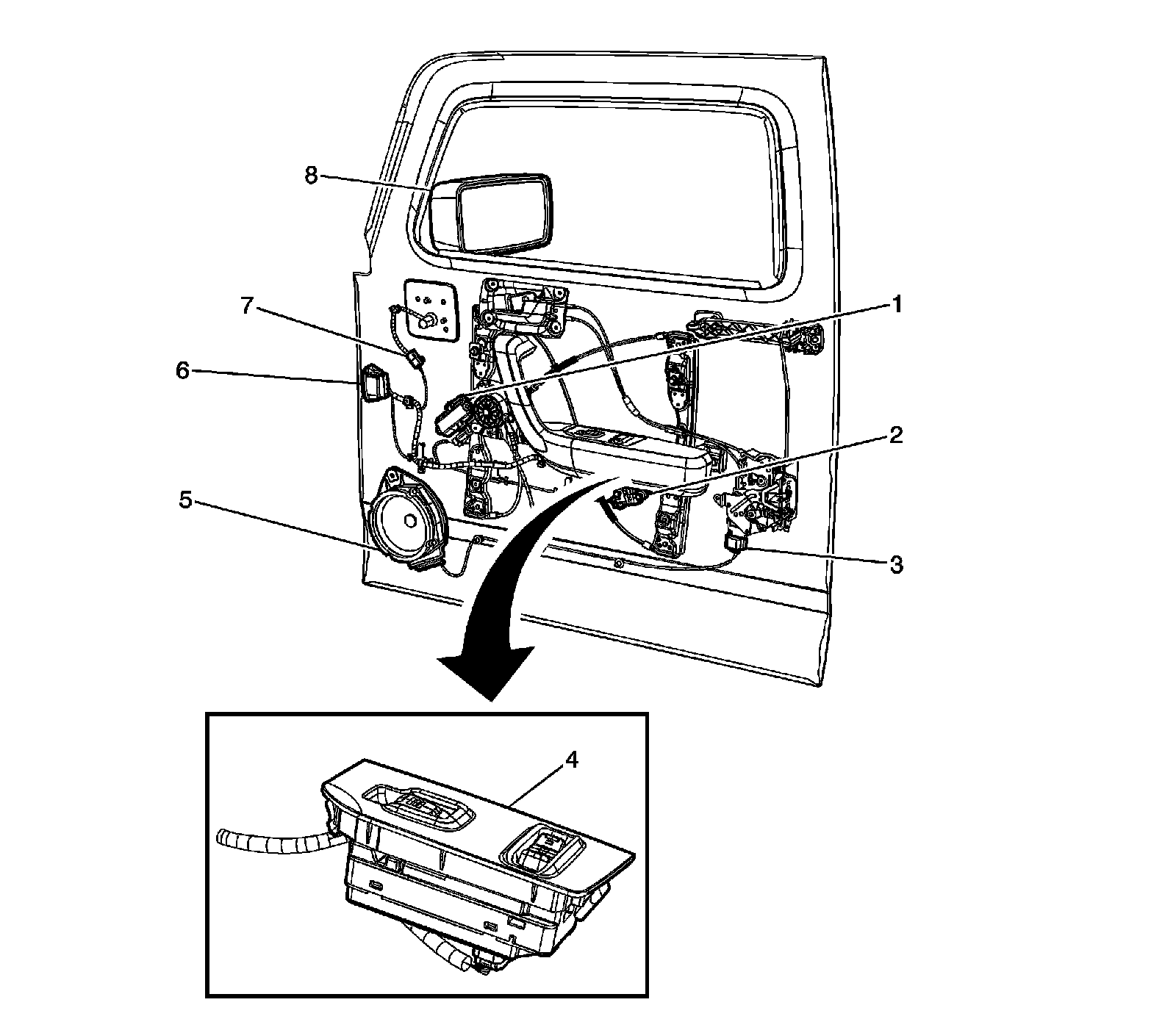

Passenger Door Components
1 - Window Motor - Passenger
2 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3 - Door Lock Actuator - Passenger
4 - Door Lock/Window Switch - Passenger
5 - Speaker - RF
6 - C600 Passenger Door Harness to Body Harness
7 - C610 Passenger Door Harness to Rearview Mirror Harness
8 - Outside Rearview Mirror - Passenger
