2007 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Front Subframe Mount: Service and Repair

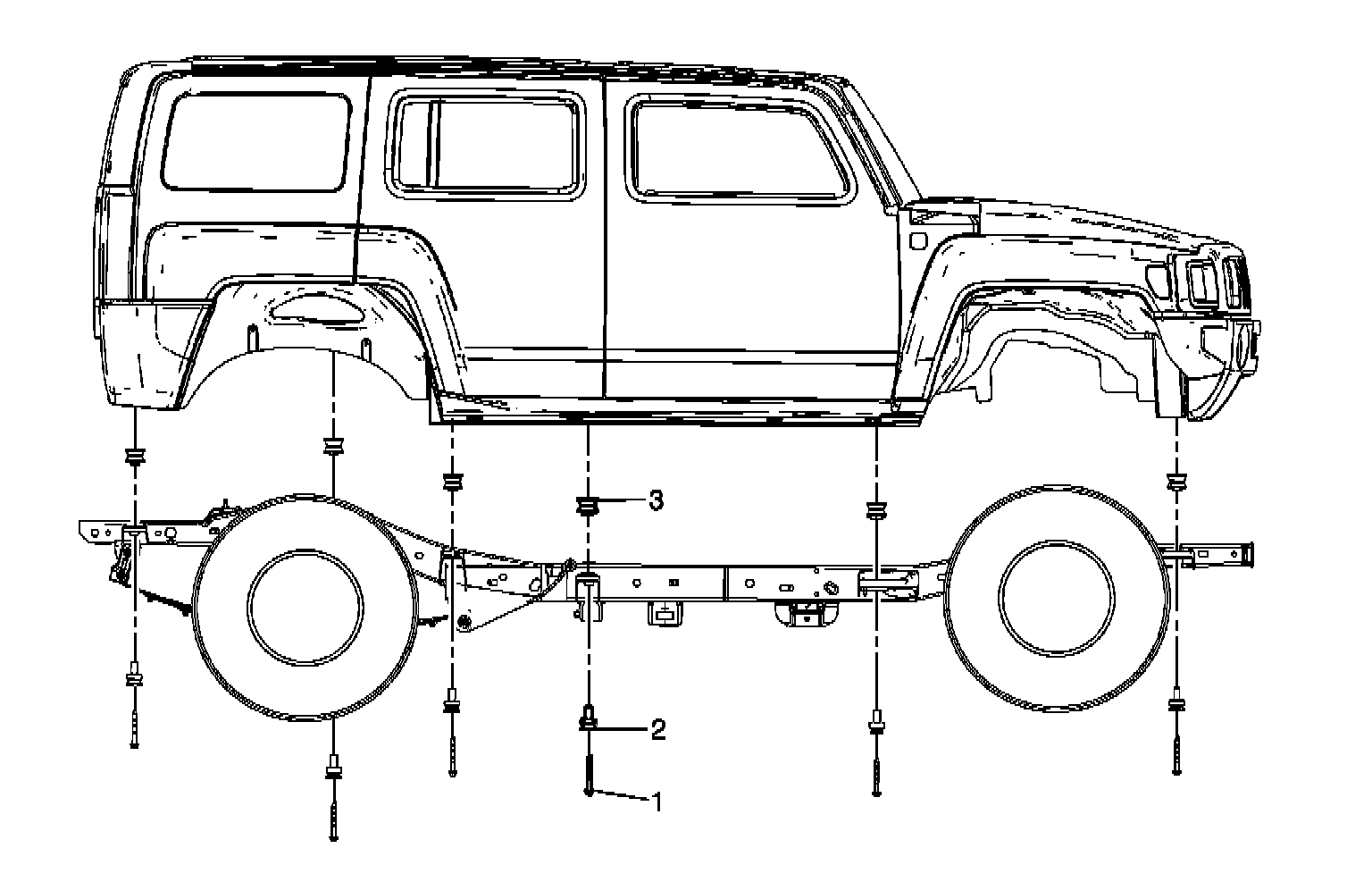

Drivetrain and Front Suspension Frame Insulator Replacement
Notice:Refer to.

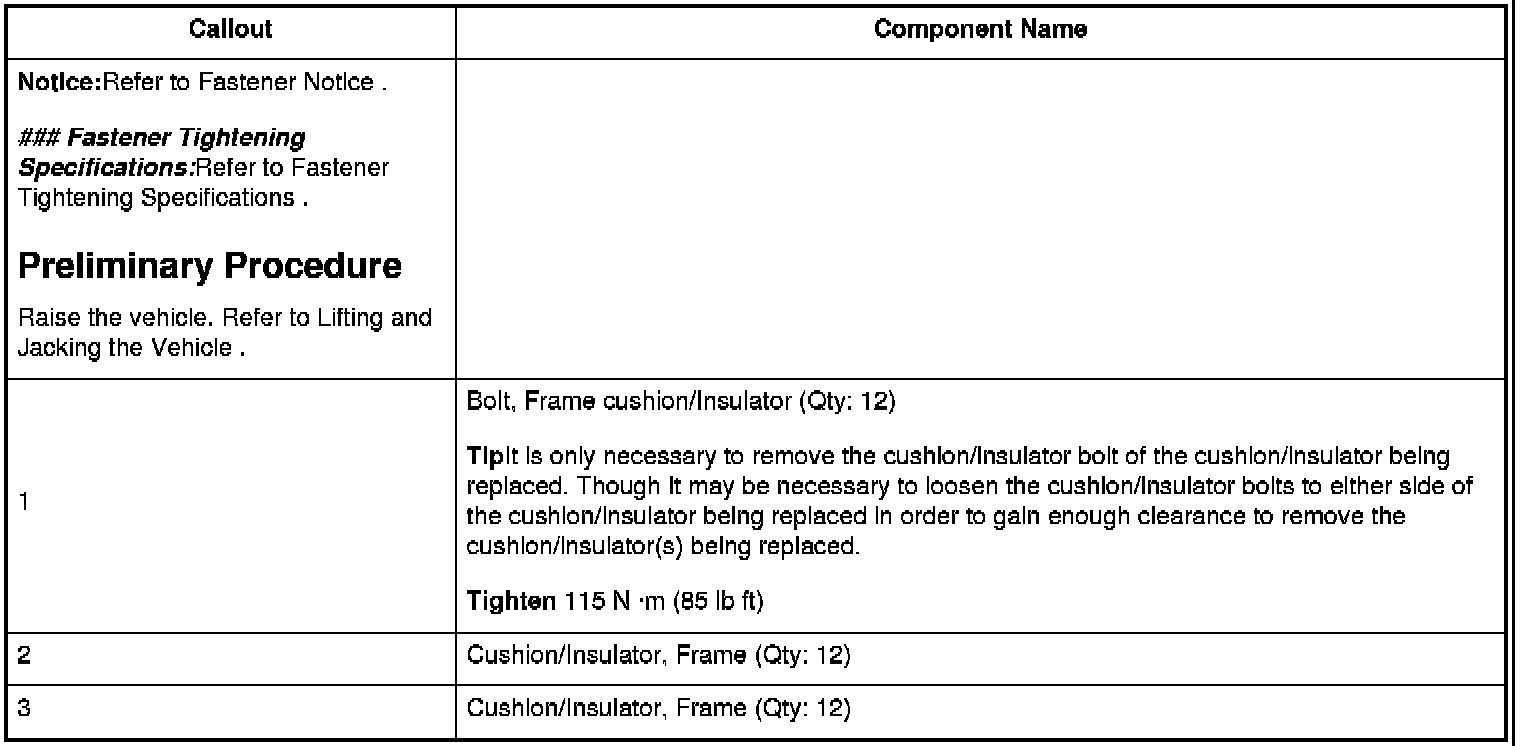

Fastener Tightening Specifications:
###
Preliminary Procedure
TipIt is only necessary to remove the cushion/insulator bolt of the cushion/insulator being replaced. Though it may be necessary to loosen the cushion/insulator bolts to either side of the cushion/insulator being replaced in order to gain enough clearance to remove the cushion/insulator(s) being replaced.
Tighten
