Front Toe Adjustment

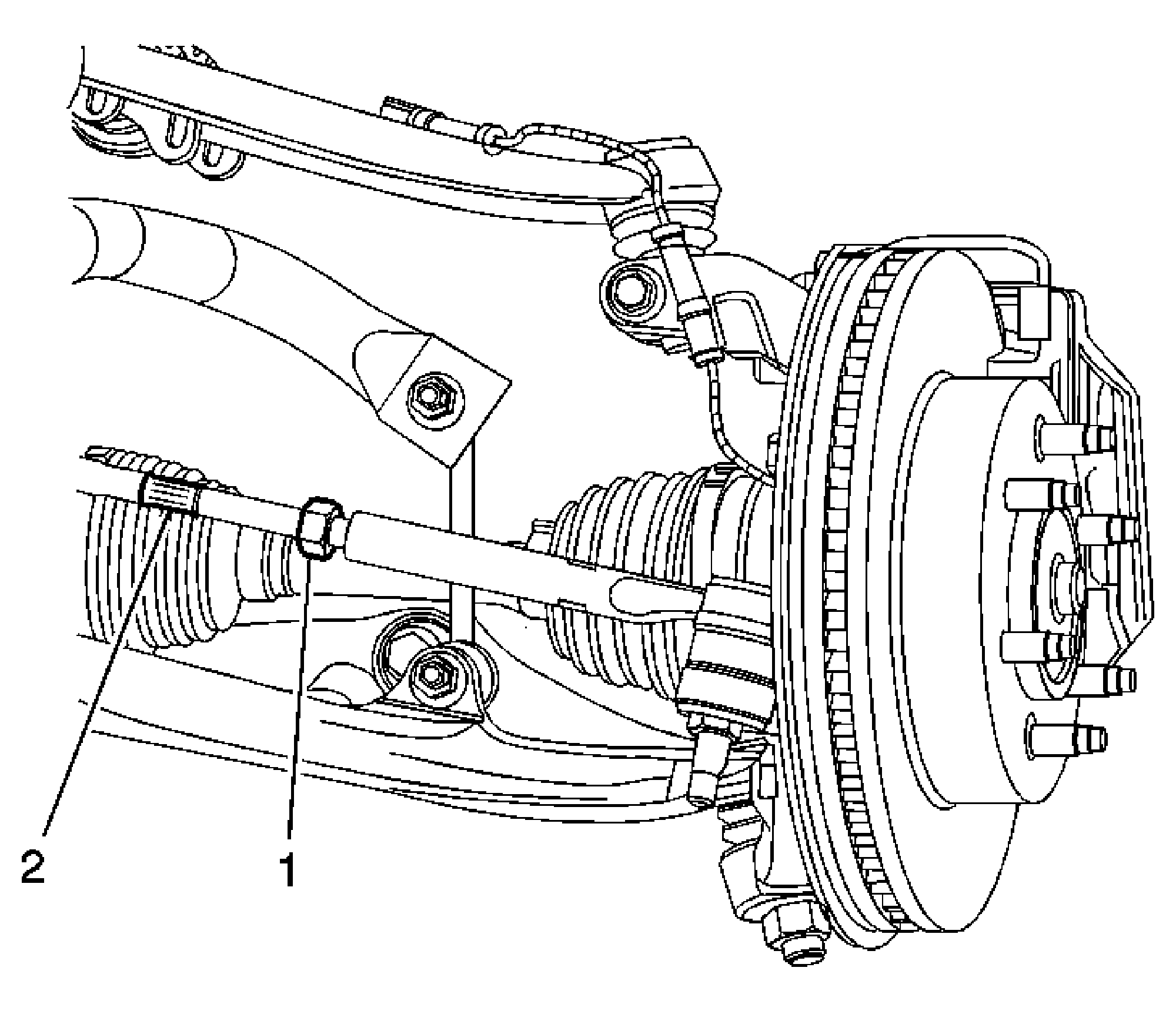

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Tie Rod Jam Nut Tighten: Tighten the jam nut to 70 N.m (52 lb ft). |
| 2 | Tie Rod Tip: Rotate the tie rod to the required specification setting. Refer to Wheel Alignment Specifications . |
