2007 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE

Steering Column Disassembled View

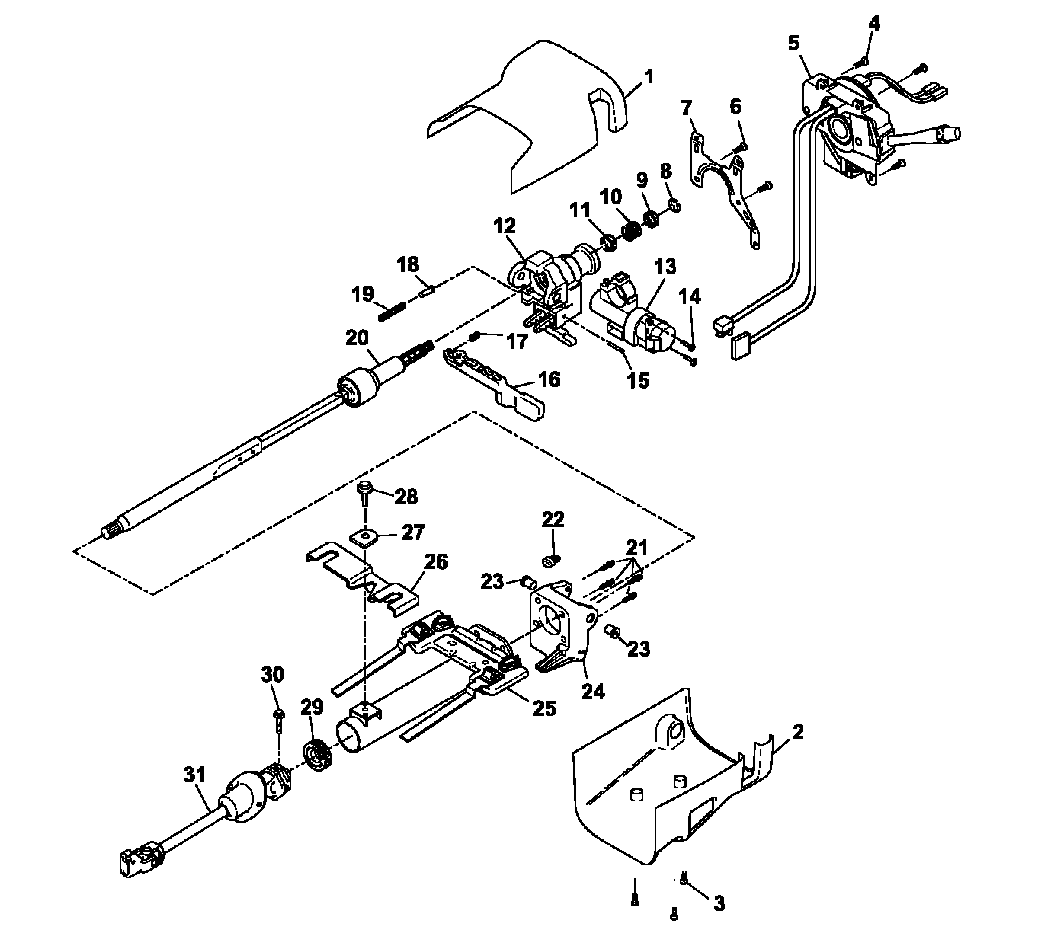

Fig 1: Steering Column Component View - Floor Shift Tilt
GM1488287Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Upper Trim Cover
2 Lower Trim Cover
3 Shoulder Tapping Screws
4 Pan Head Tapping Screws
5 Multifunction Switch Assembly
6 Washer Head Screws
7 Switch Mounting Plate
8 Bearing Retainer
9 Spring Retainer
10 Upper Bearing Spring
11 Inner Race Seat
12 Steering Column Housing Assembly
13 Ignition Switch and Lock Housing Assembly
14 Set Screws
15 Release Lever Pin
16 Lever Spring Assembly
17 Release Lever Spring
18 Spring Guide
19 Tilt Spring
20 Steering Shaft Assembly
21 Torque Head Screws
22 Tilt Bumper
23 Pivot Pin
23 Pivot Pins
24 Steering Column Support Assembly
25 Bracket and Upper Jacket Assembly
26 Lower Column Support Bracket
27 Lower Bracket Retainer Spacer
28 Washer and Bolt Assembly
29 Lower Shaft Bearing Assembly
30 Bolt and Retainer Assembly
31 Intermediate Steering Shaft Assembly
