2007 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE

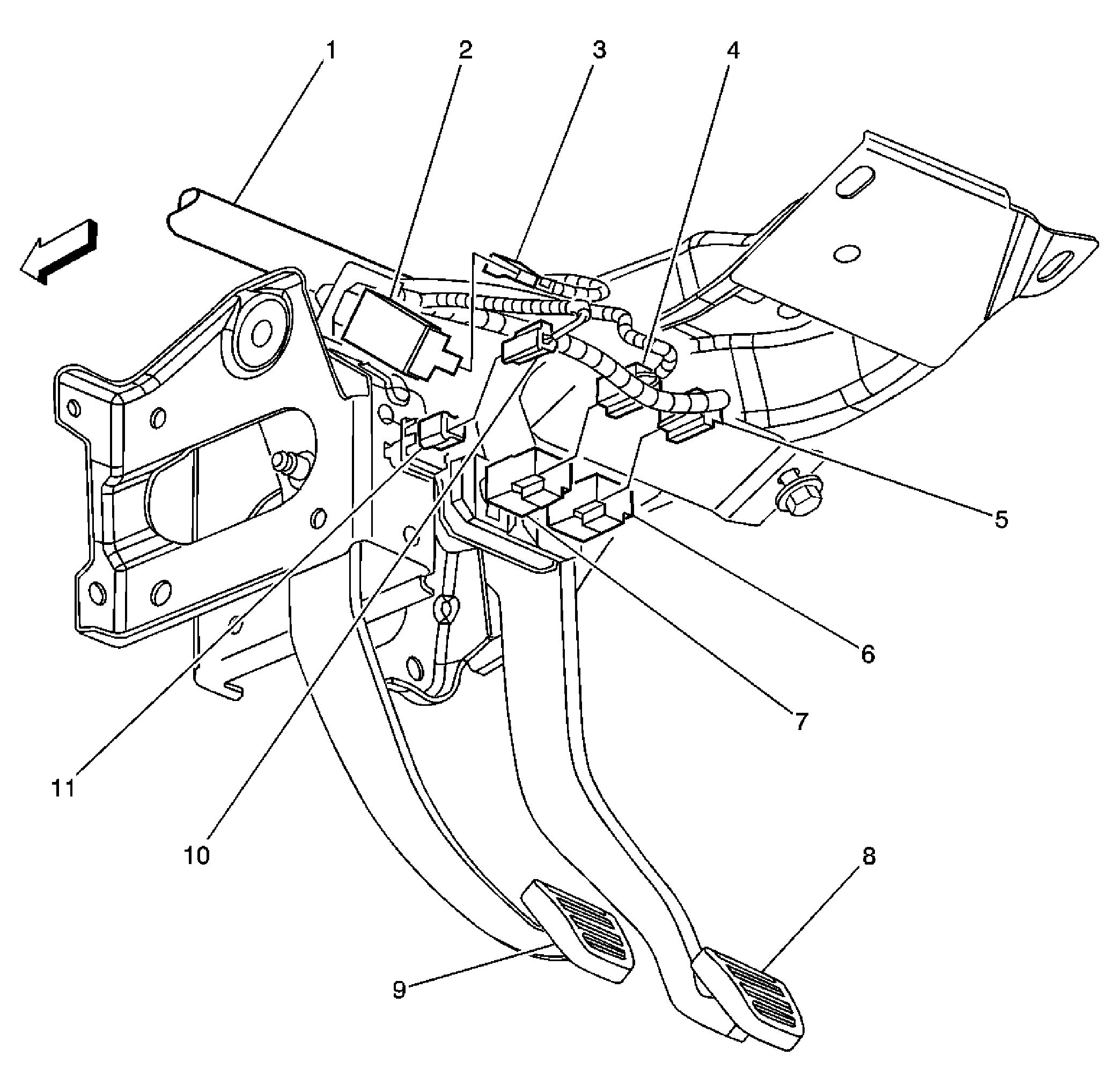

Cruise Control Component Views
WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Body Harness |
| 2 | Clutch Switch (MA5) |
| 3 | Clutch Switch Connector (MA5) |
| 4 | TCC Brake/Cruise Release Switch Connector |
| 5 | Stop Lamp Switch Connector |
| 6 | Stop Lamp Switch |
| 7 | TCC Brake/Cruise Release Switch |
| 8 | Brake Pedal |
| 9 | Clutch Pedal |
| 10 | Clutch Start Switch Connector (MA5) |
| 11 | Clutch Start Switch (MA5) |
