2007 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Electrical Component Views

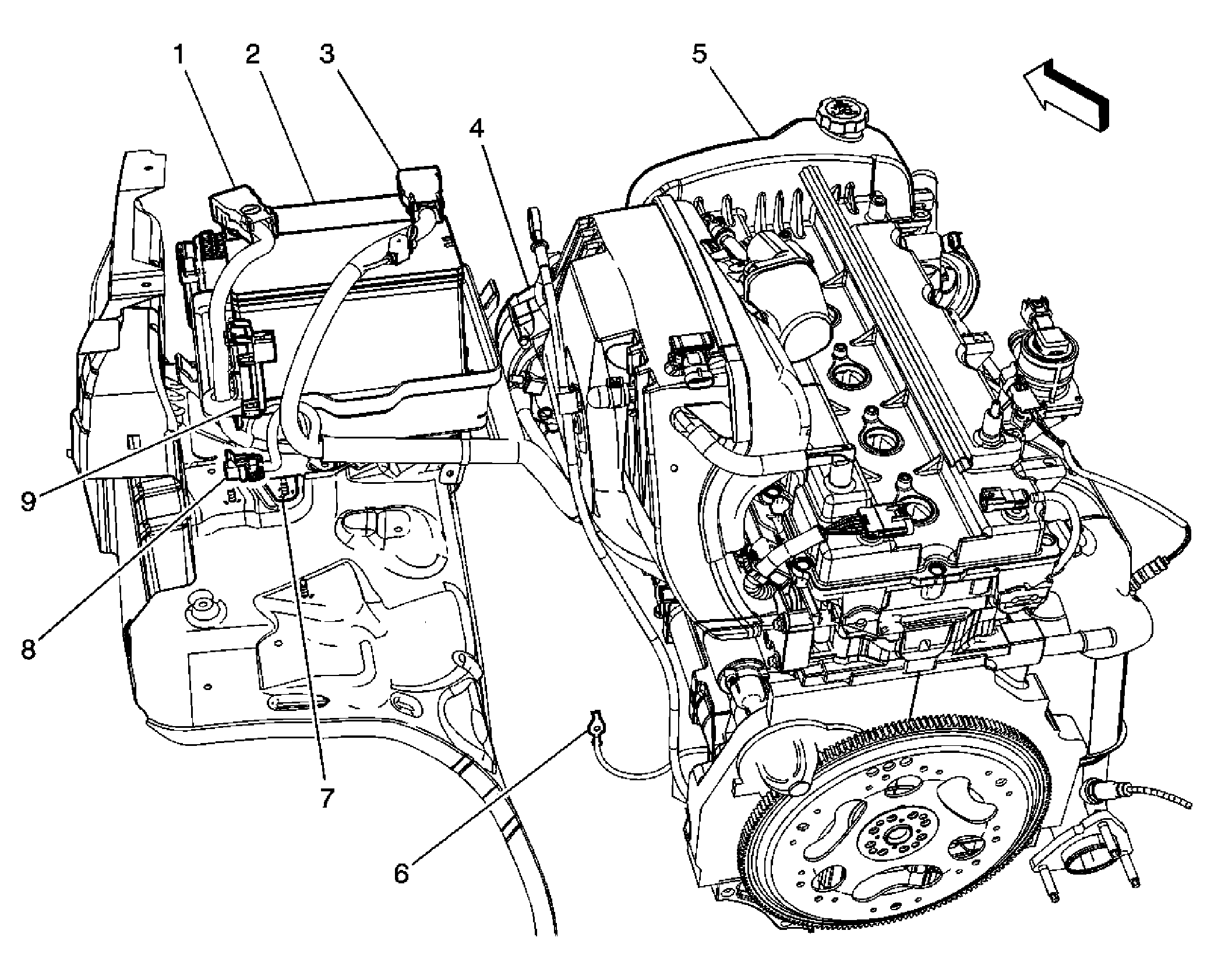

| Callout | Component Name |
|---|---|
| 1 | Negative Battery Cable |
| 2 | Battery |
| 3 | Positive Battery Cable |
| 4 | Generator |
| 5 | Engine-LRR |
| 6 | G120 |
| 7 | G100 |
| 8 | C130 (UE1) |
| 9 | Generator Control Module |

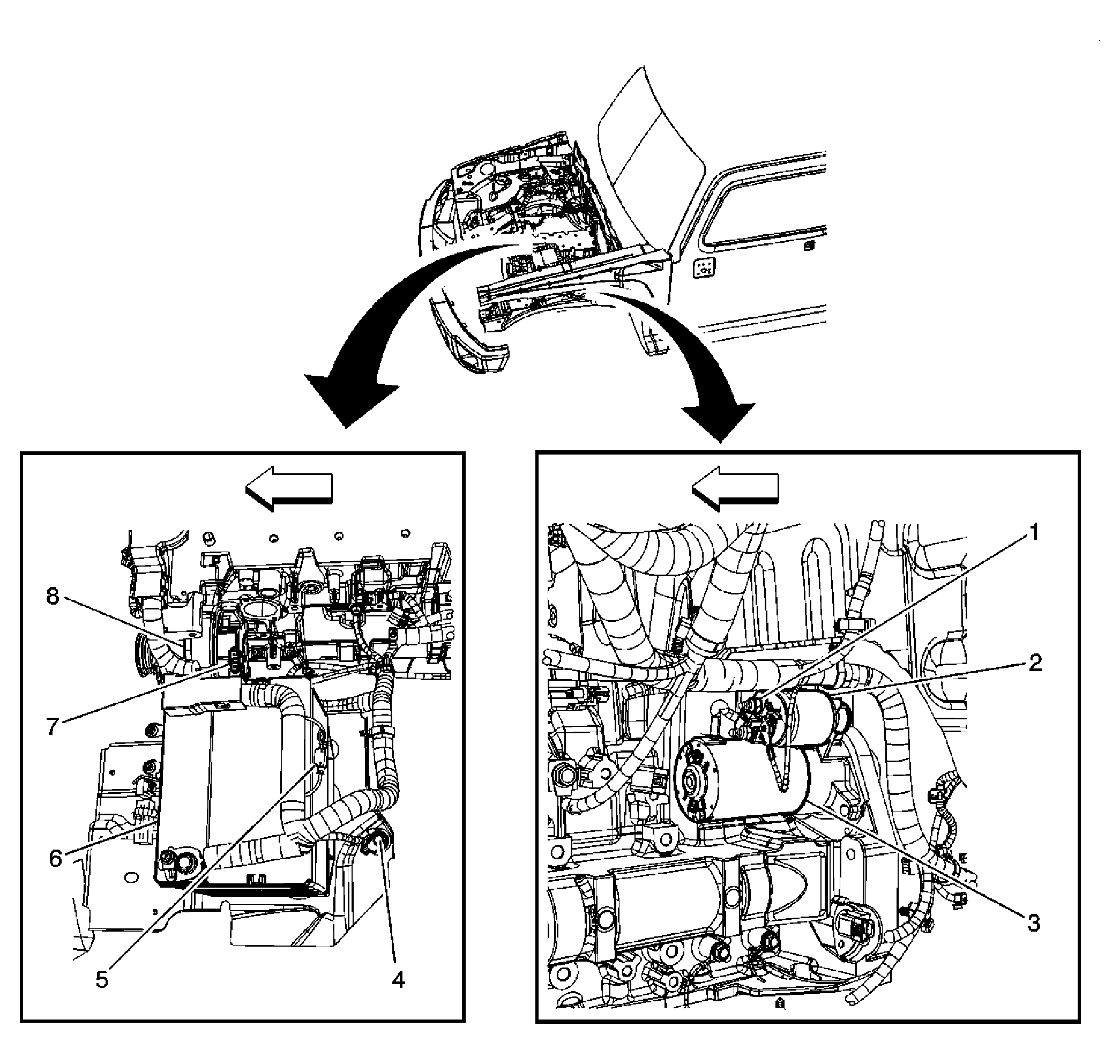

| Callout | Component Name |
|---|---|
| 1 | Battery Positive Cable |
| 2 | Starter Solenoid |
| 3 | Starter Motor |
| 4 | G100 |
| 5 | OnStar Fuse |
| 6 | Battery |
| 7 | Generator Connector |
| 8 | Generator |

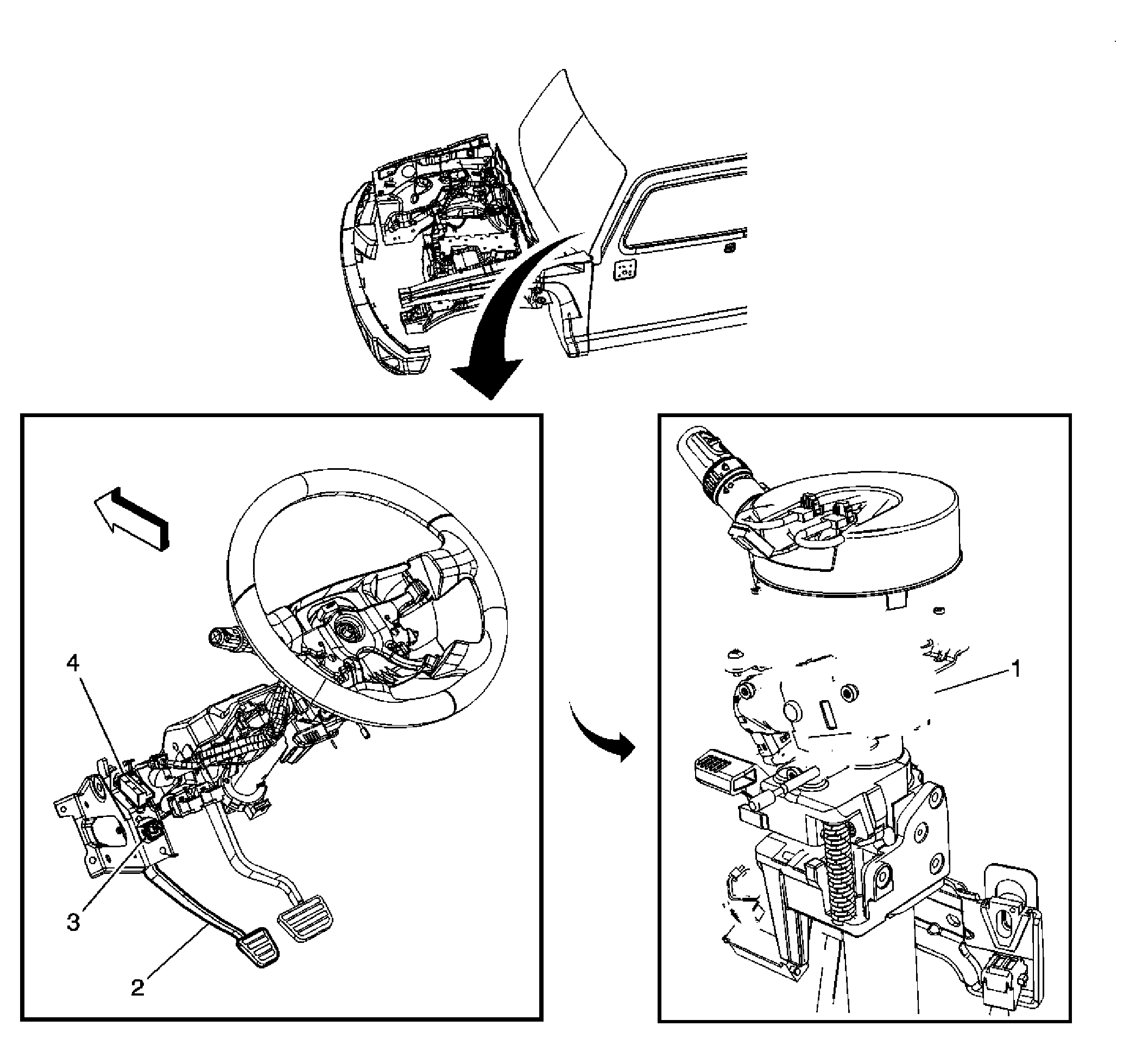

| Callout | Component Name |
|---|---|
| 1 | Ignition Switch |
| 2 | Clutch Pedal (MA5) |
| 3 | Clutch Release Switch (MA5) |
| 4 | Clutch Start Switch (MA5) |
