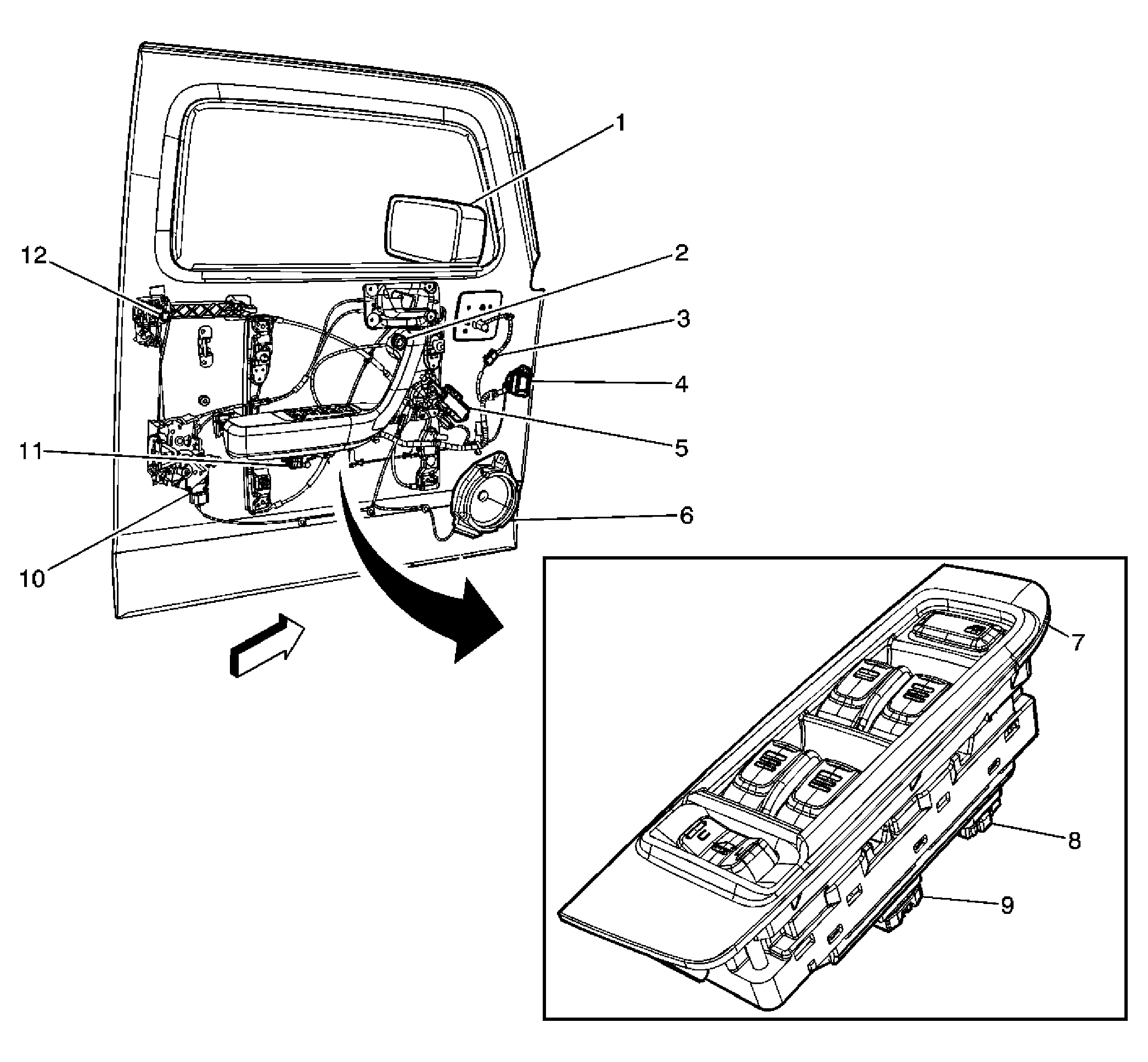

Fig 1: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Outside Rearview Mirror Switch
3	C510 Driver Door Harness to Outside Rearview Mirror Harness
4	C500 Door Harness to Body Harness
5	Window Motor - Driver
6	Speaker - LF Door
7	Door Lock and Window Switch - Driver
8	Door Lock and Window Switch - Driver C1
9	Door Lock and Window Switch - Driver C2
10	Door Lock Actuator - Driver
11	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12	Key Lock Cylinder

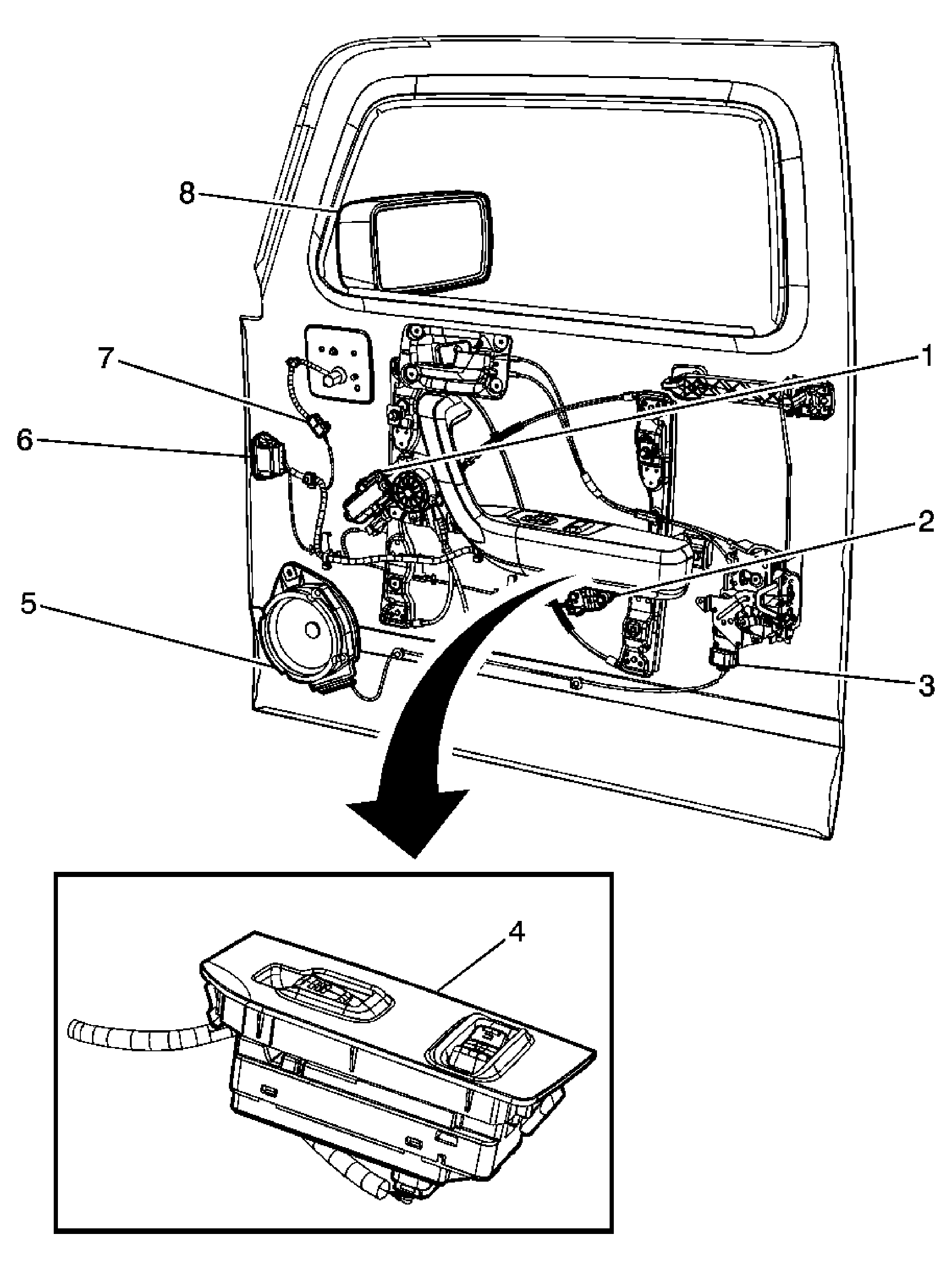

Fig 2: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Passenger
2	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3	Door Lock Actuator - Passenger
4	Door Lock/Window Switch - Passenger
5	Speaker - RF
6	C600 Passenger Door Harness to Body Harness
7	C610 Passenger Door Harness to Rearview Mirror Harness
8	Outside Rearview Mirror - Passenger

Fig 3: Identifying Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	A/C Refrigerant Pressure Sensor
3	A/C Compressor Clutch
4	Ambient Air Temperature Sensor
5	Inflatable Restraint Front End Sensor - Right
6	Lower Radiator Support
7	Inflatable Restraint Front End Sensor - Left

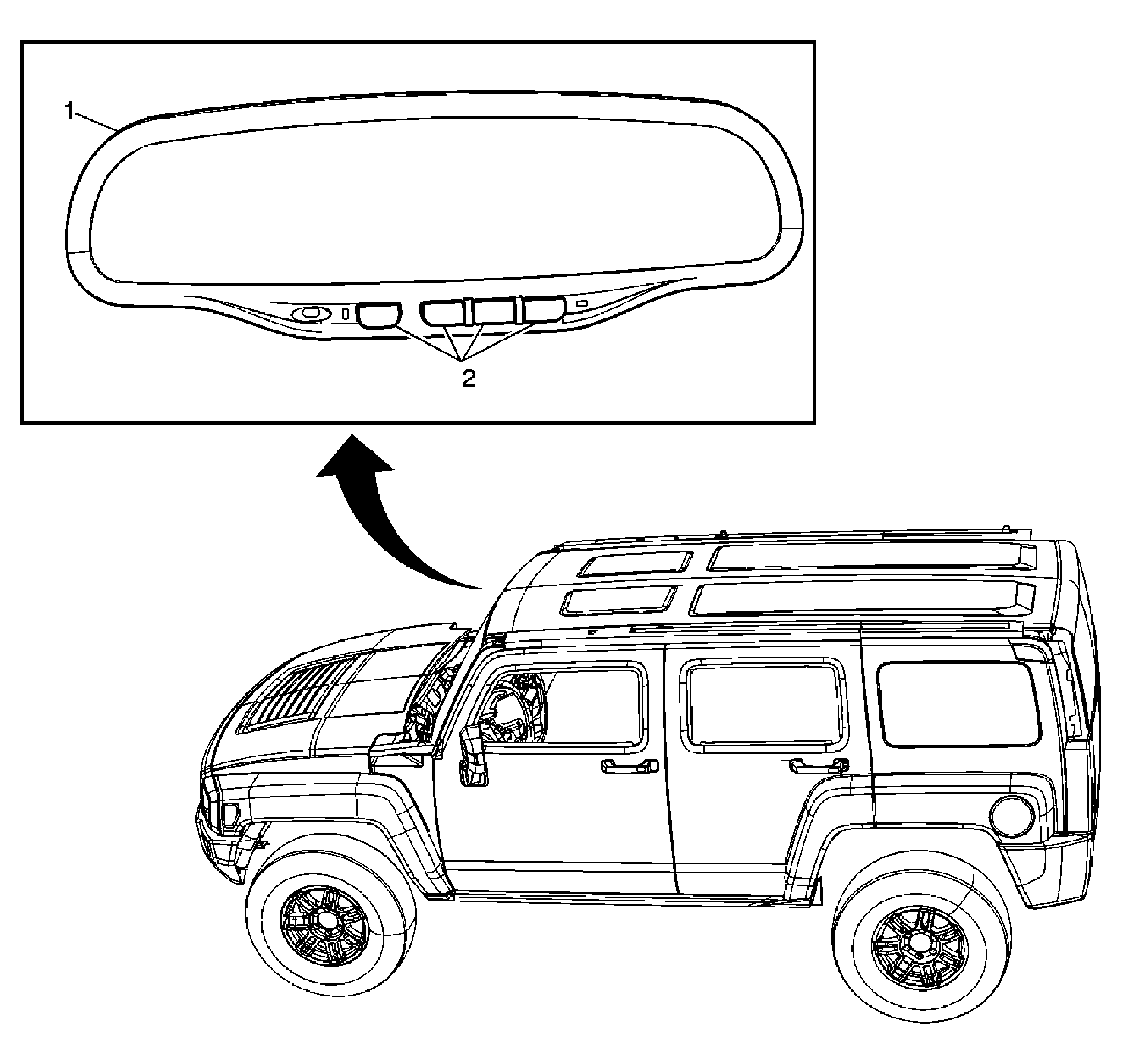

Fig 4: Identifying Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (UE1)
2	OnStar Keypad
