2007 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE

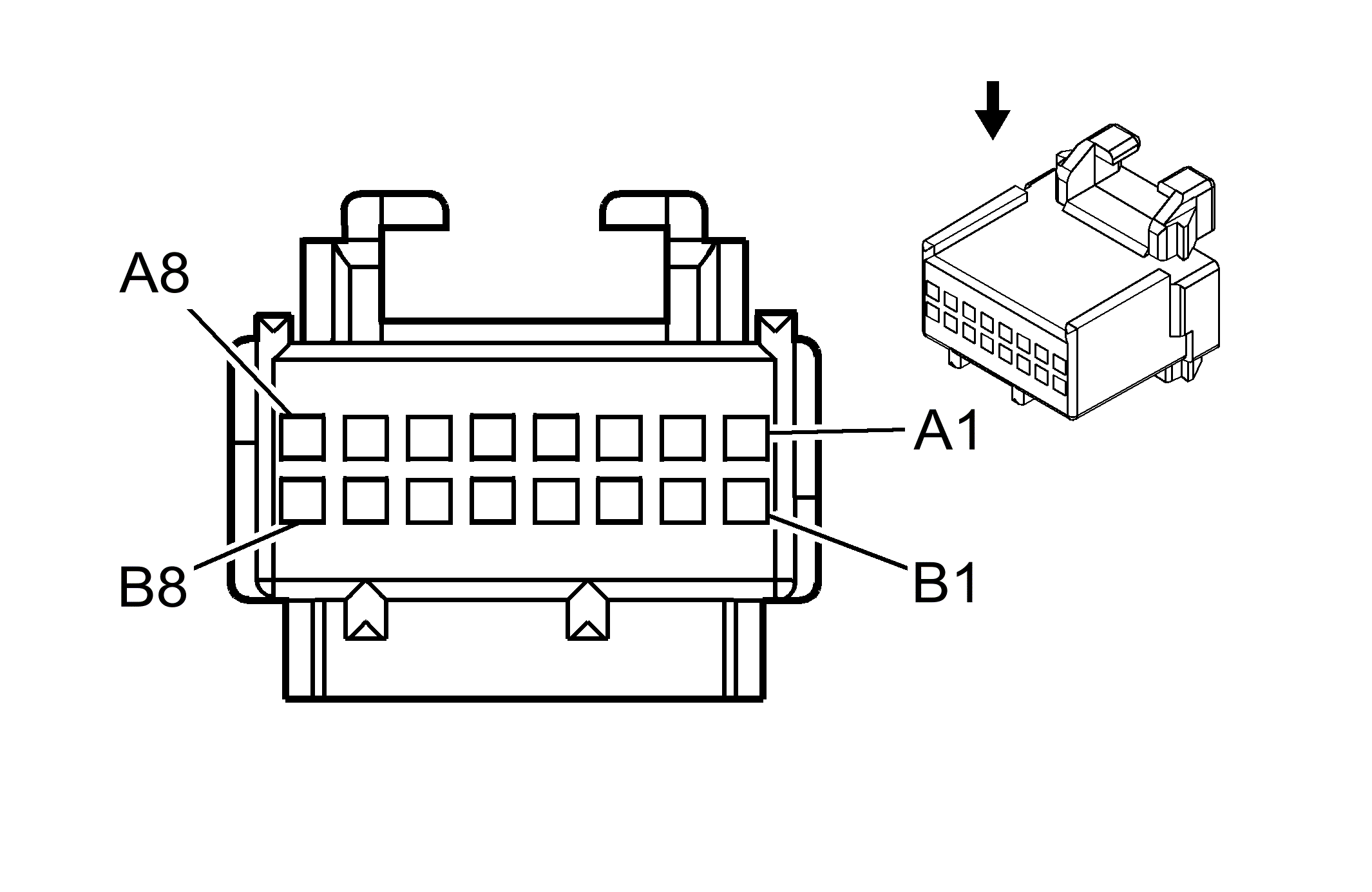

Transfer Case Shift Control Module Connector End View C2
Transfer Case Shift Control Module C2 Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Transfer Case Shift Control Module C2 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A1-A7 | - | - | Not Used |
| A8 | BK/WH | 1554 | Encoder Low Reference |
| B1-B5 | - | - | Not Used |
| B6 | D-BU/WH | 1557 | Channel A Encoder Signal |
| B7 | - | - | Not Used |
| B8 | GY | 596 | 5-Volt Reference |
