2007 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE

Powertrain Control Module (PCM) Connector End View C3 (MA5)

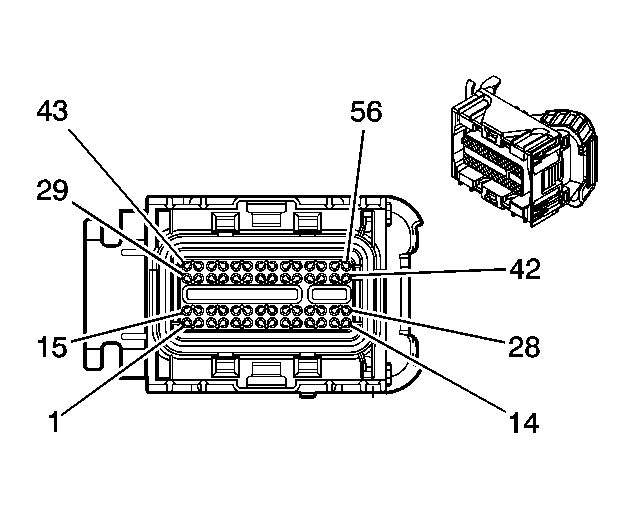

Fig 1: Powertrain Control Module (PCM) C3 (MA5) Connector End Views
GM1567137Courtesy of GENERAL MOTORS CORP.
Powertrain Control Module (PCM) C3 (MA5) Connector Parts Information

Connector Part Information
  • OEM: 15492010
  • Service: See Catalog
  • Description: 11-Way F Micro 64 Series Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64A (L-BU)
Powertrain Control Module (PCM) C3 (MA5) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1-3 - - Not Available
4 TN/WH 1669 HO2S Low Signal Bank 1 Sensor 2
5-14 - - Not Available
15 TN/BK 231 Oil Pressure Switch Signal
16-18 - - Not Available
19 PU/WH 1668 HO2S High Signal Bank 1 Sensor 2
20-30 - - Not Available
31 YL 6787 Air Injection Reaction Control Valve #1 Control (K18)
32-33 - - Not Available
34 TN/BK 464 Delivered Torque Signal
35 - - Not Available
36 PU 114 Low Reference
37 D-GN/WH 428 EVAP Canister Purge Solenoid Control
38-43 - - Not Available
44 PU 401 Signal Low - Front
45 YE 400 Signal High - Front
46 BK/WH 1423 HO2S Heater Low Control Bank 1 Sensor 2
47 OG/BK 463 Requested Torque Signal
48-56 - - Not Available
