2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Wiper Control Module: Locations

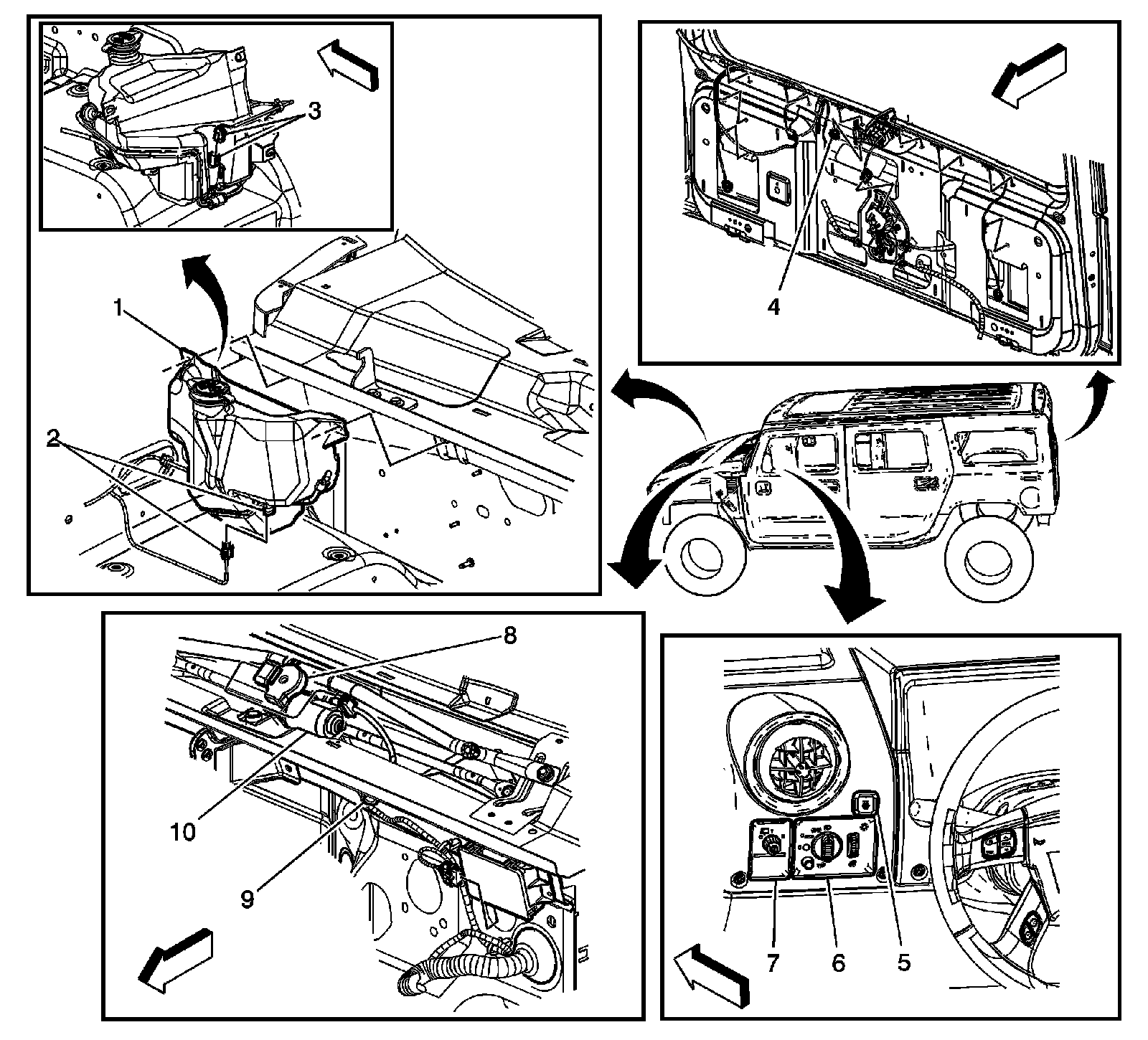

Wiper/Washer Component Views
Wiper/Washer Systems Components
1 - Windshield Washer Fluid Container
2 - Washer Fluid Level Sensor
3 - Windshield Washer Fluid Pump - Reversible
4 - Rear Window Wiper Motor (SUV)
5 - Heated Washer Switch (WS2)
6 - Headlamp and Panel Dimmer Switch
7 - Rear Wiper/Washer Switch (SUV)
8 - Windshield Wiper/Washer Module
9 - I/P Harness
10 - Windshield Wiper Motor
