2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Removal and Replacement
Transfer Case Shift Control Module Replacement

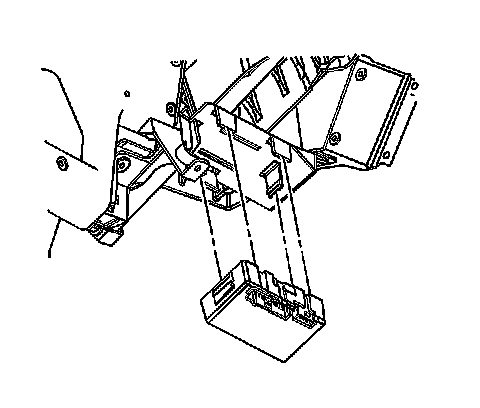

Removal Procedure
1. Remove the knee bolster.
2. Disconnect the shift control module electrical connectors.
3. Reposition the harness.
4. Remove the module from the vehicle.
Installation Procedure
1. Install the shift control module to the vehicle.
2. Connect the shift control module electrical connectors.
3. Install the knee bolster.
4. Start the engine and test the automatic transfer case system for proper shift operation.
