2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Control Module: Locations

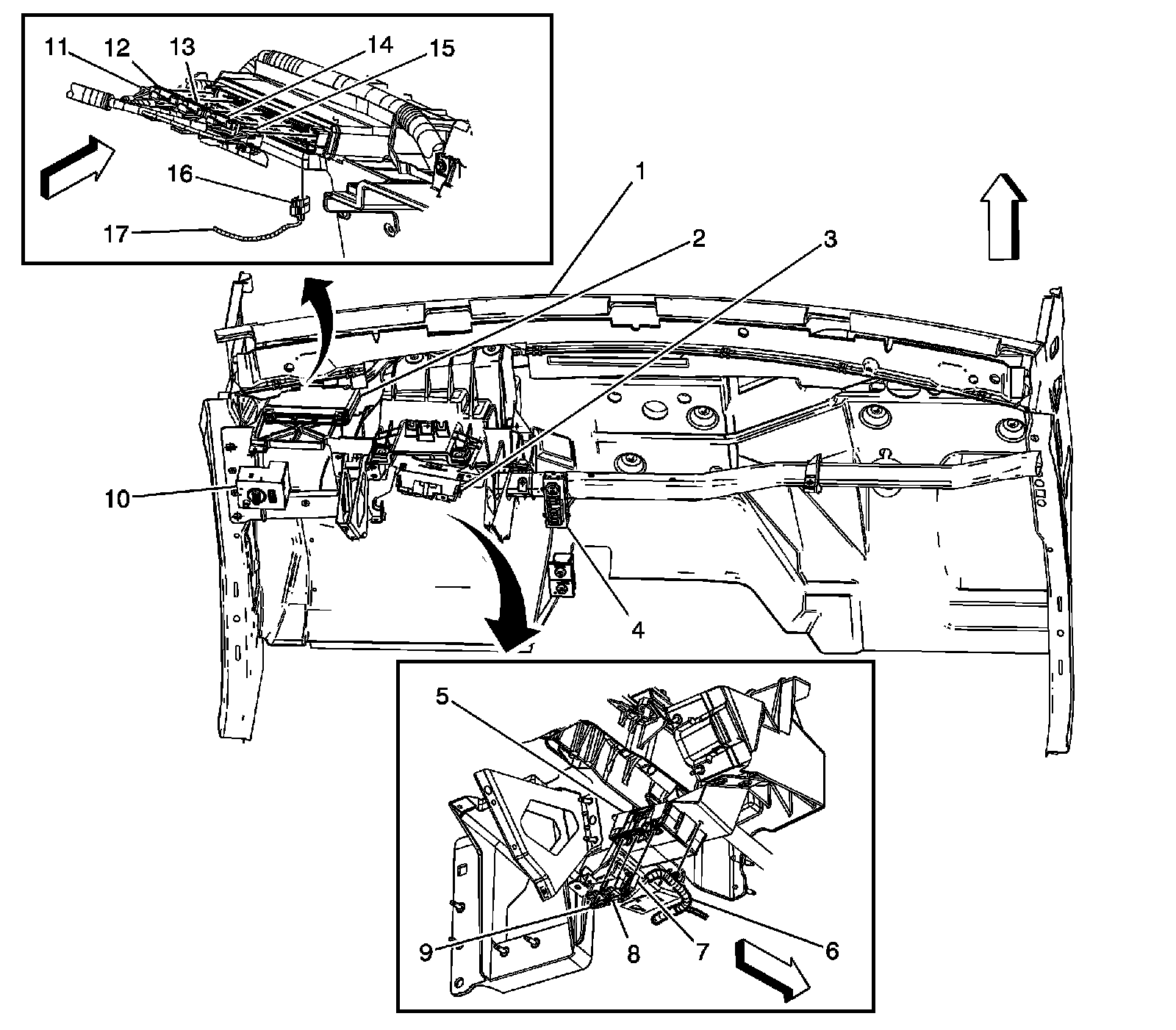

Transfer Case Control Component Views
Left Center of the I/P:
1 - Instrument Panel
2 - Body Control Module (BCM)
3 - Transfer Case Shift Control Module
4 - Transfer Case Shift Control Switch
5 - Transfer Case Shift Control Module
6 - I/P Harness
7 - Transfer Case Shift Control Module - C3
8 - Transfer Case Shift Control Module - C2
9 - Transfer Case Shift Control Module - C1
10 - Headlamp and Panel Dimmer Switch
11 - BCM - C1
12 - BCM - C2
13 - BCM - C3
14 - BCM - C4
15 - BCM - C5
16 - BCM - C6
17 - Body Harness
