2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Ignition Lock: Locations
Power and Grounding Component Views
Steering Wheel and Column

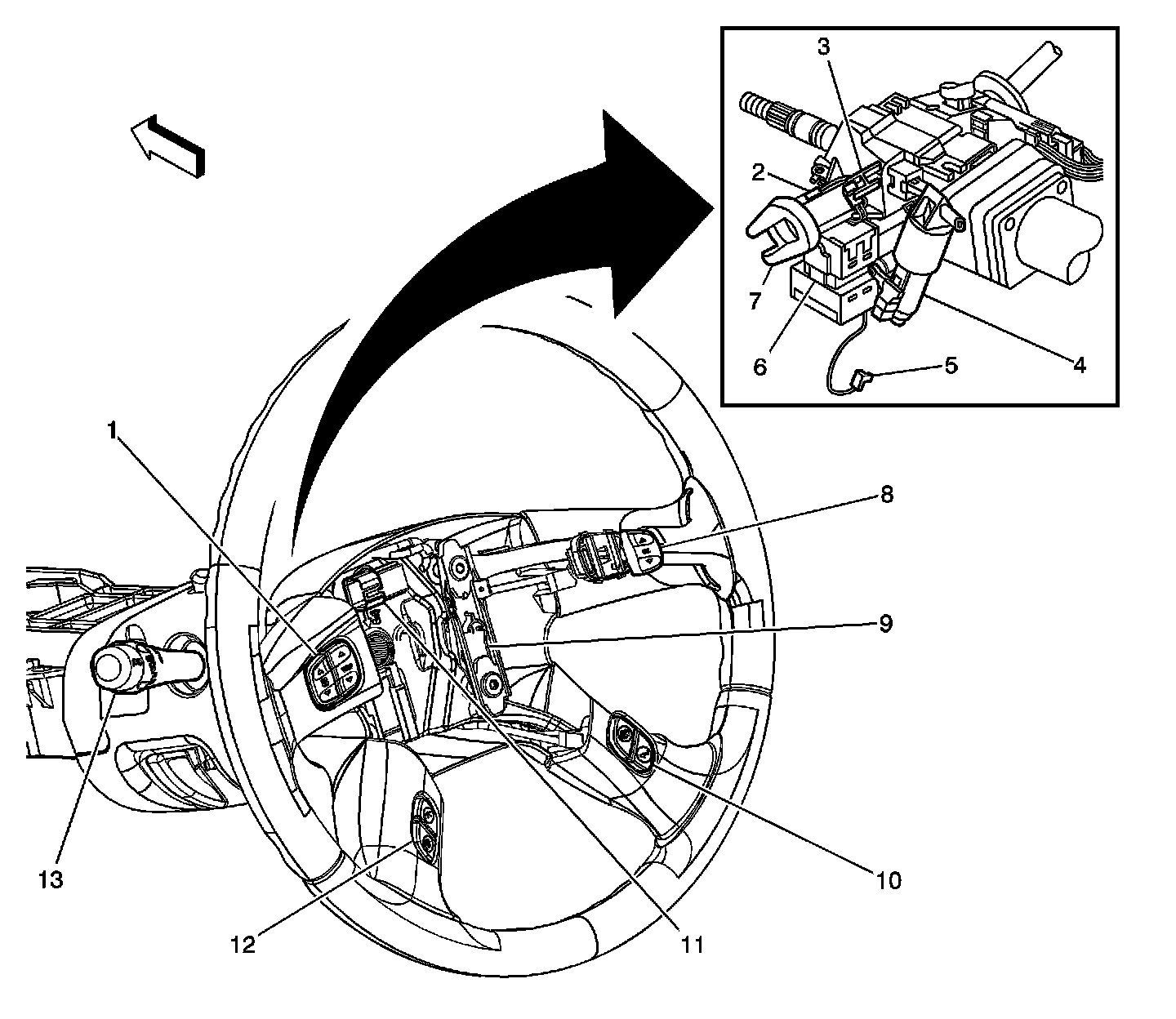

Steering Wheel and Column:
1 - Steering Wheel Control Switch Assembly - Upper Left
2 - Passlock Sensor Connector
3 - Ignition Key Alarm Switch
4 - Ignition Lock Cylinder Control Actuator
5 - Ignition Lock Cylinder Control Actuator Connector
6 - Ignition Switch
7 - Ignition Key Cylinder
8 - Steering Wheel Control Switch Assembly - Upper Right
9 - Horn Switch
10 - Steering Wheel Control Switch Assembly - Lower Right
11 - C277
12 - Steering Wheel Control Switch Assembly - Lower Left
13 - Turn Signal/Multifunction Switch
