2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE

Powertrain Management: Locations



Engine Controls Component Views

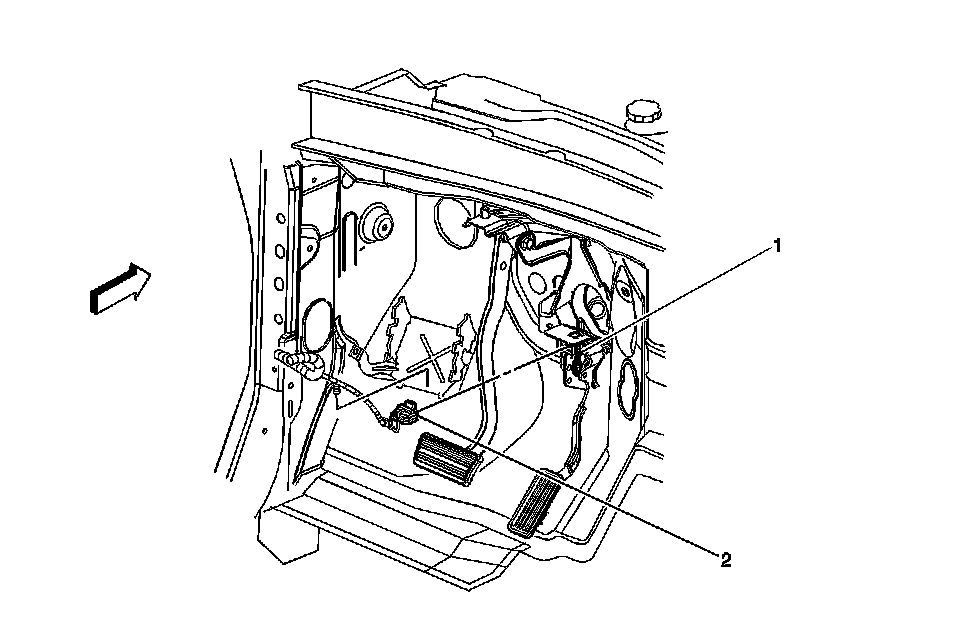

Lower Left of the I/P

Factory service manual diagram



1 - APP Sensor
2 - APP Sensor Connector

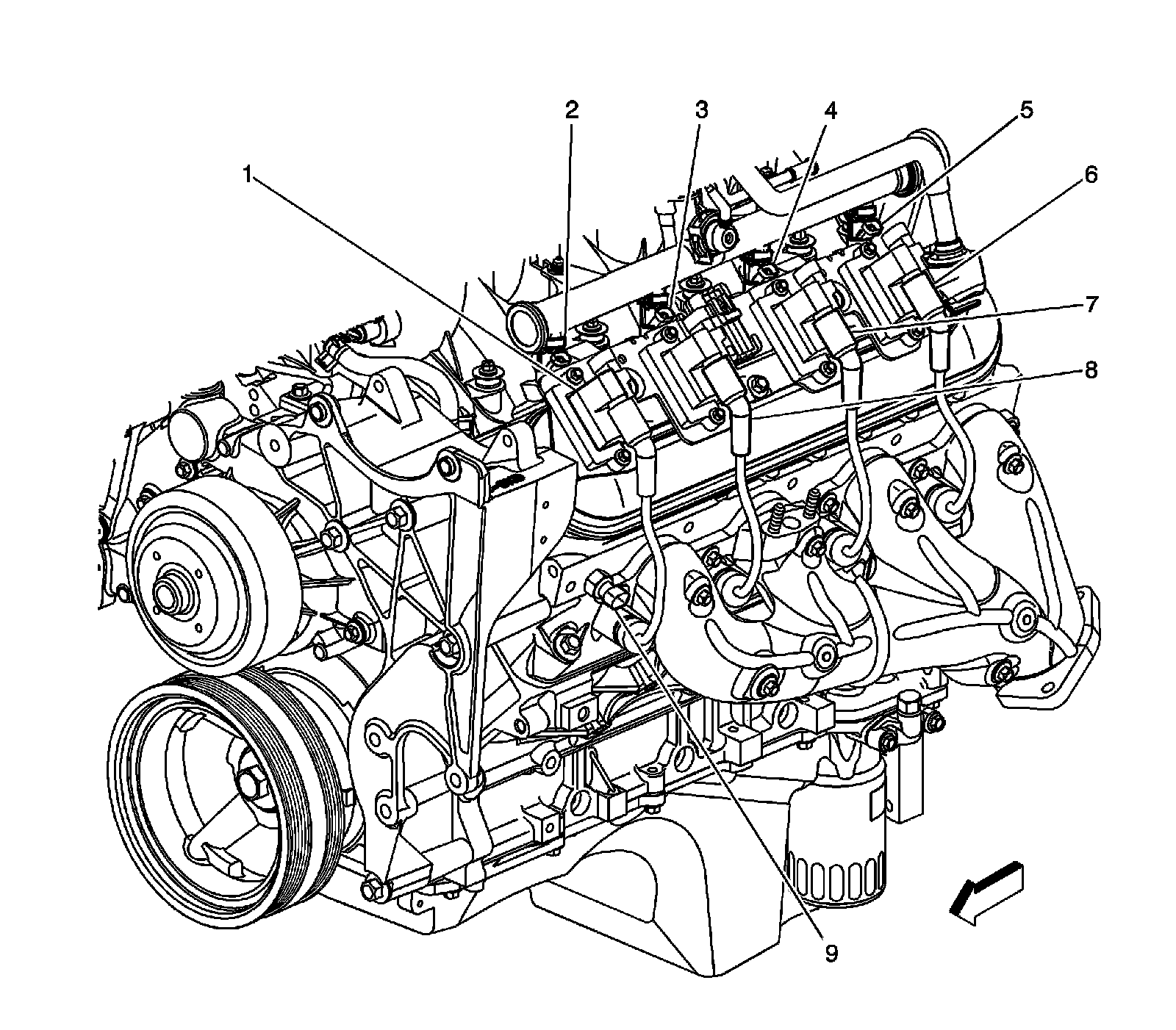

Left Side of Engine

Factory service manual diagram



1 - Ignition Coil 1
2 - Fuel Injector 1
3 - Fuel Injector 3
4 - Fuel Injector 5
5 - Fuel Injector 7
6 - Ignition Coil 7
7 - Ignition Coil 5
8 - Ignition Coil 3
9 - Engine Coolant Temperature (ECT) Sensor

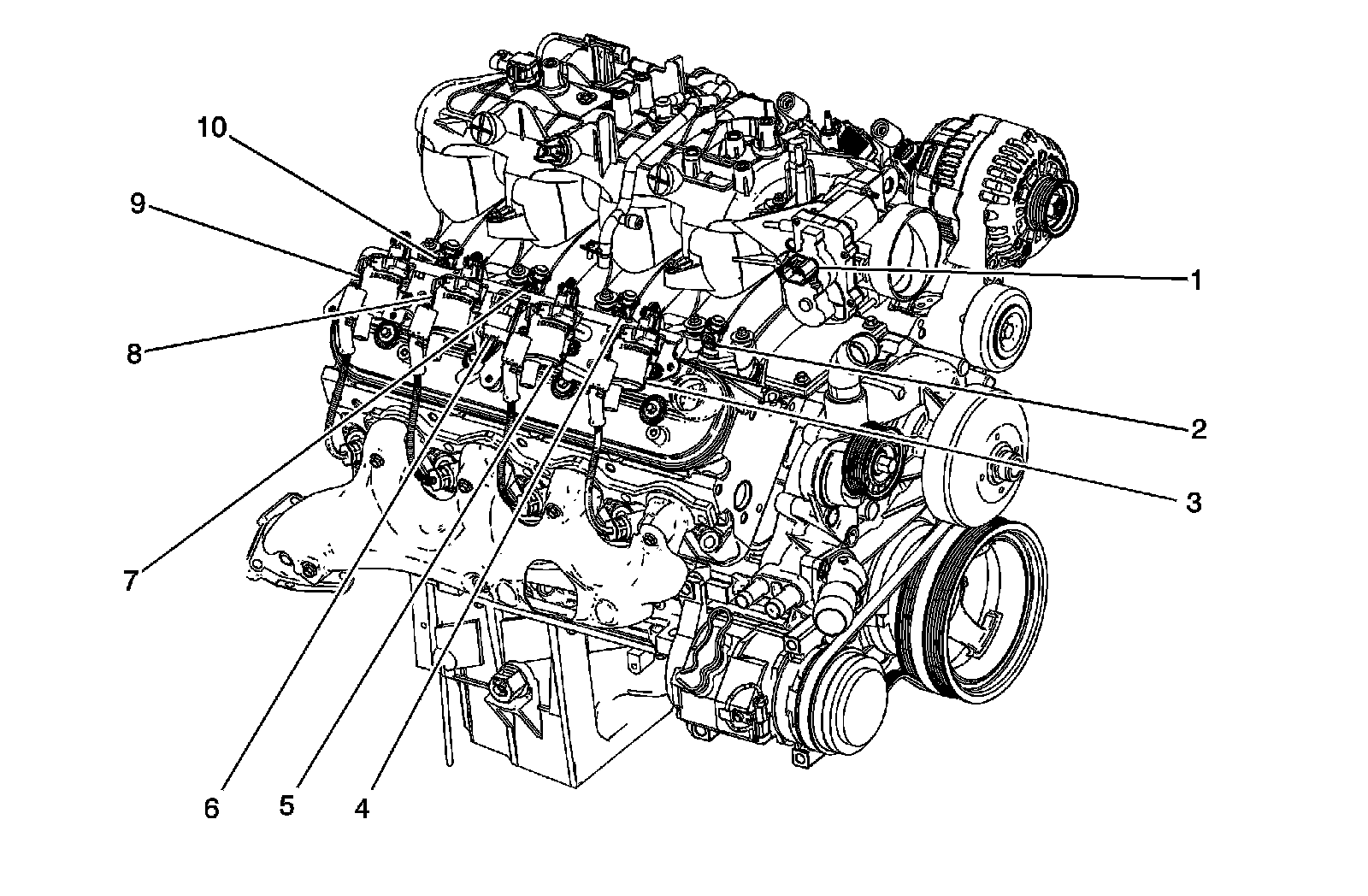

Right Side of Engine

Factory service manual diagram



1 - Throttle Body Assembly
2 - Fuel Injector 2
3 - Ignition Coil 2
4 - Fuel Injector 4
5 - Ignition Coil 4
6 - C158 - Ignition Coil Inline
7 - Fuel Injector 6
8 - Ignition Coil 6
9 - Ignition Coil 8
10 - Fuel Injector 8

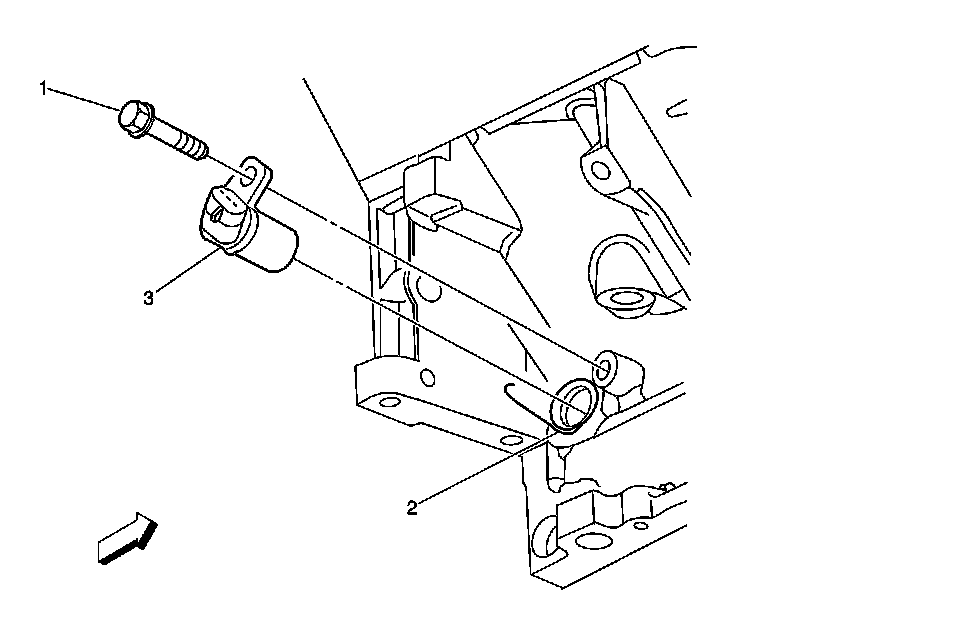

Right Rear Corner of Cylinder Block

Factory service manual diagram



1 - CKP Mounting Bolt
2 - CKP Mounting Location
3 - Crankshaft Position (CKP) Sensor

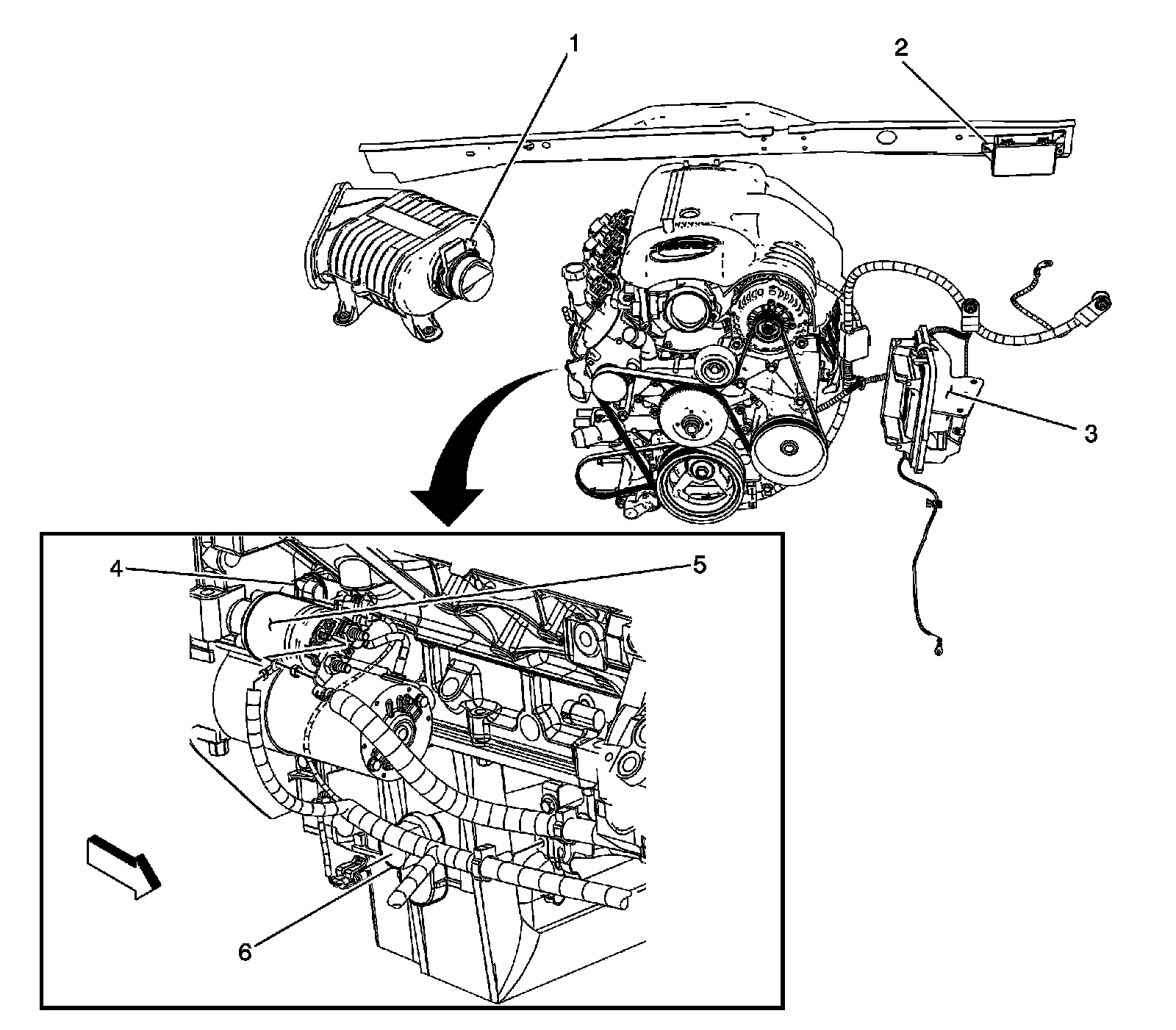

Engine Compartment Mounted Components

Factory service manual diagram



1 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
2 - Throttle Actuator Control (TAC) Module
3 - Powertrain Control Module (PCM)
4 - Crankshaft Position (CKP) Sensor
5 - Starter Solenoid
6 - Engine Oil Level Switch

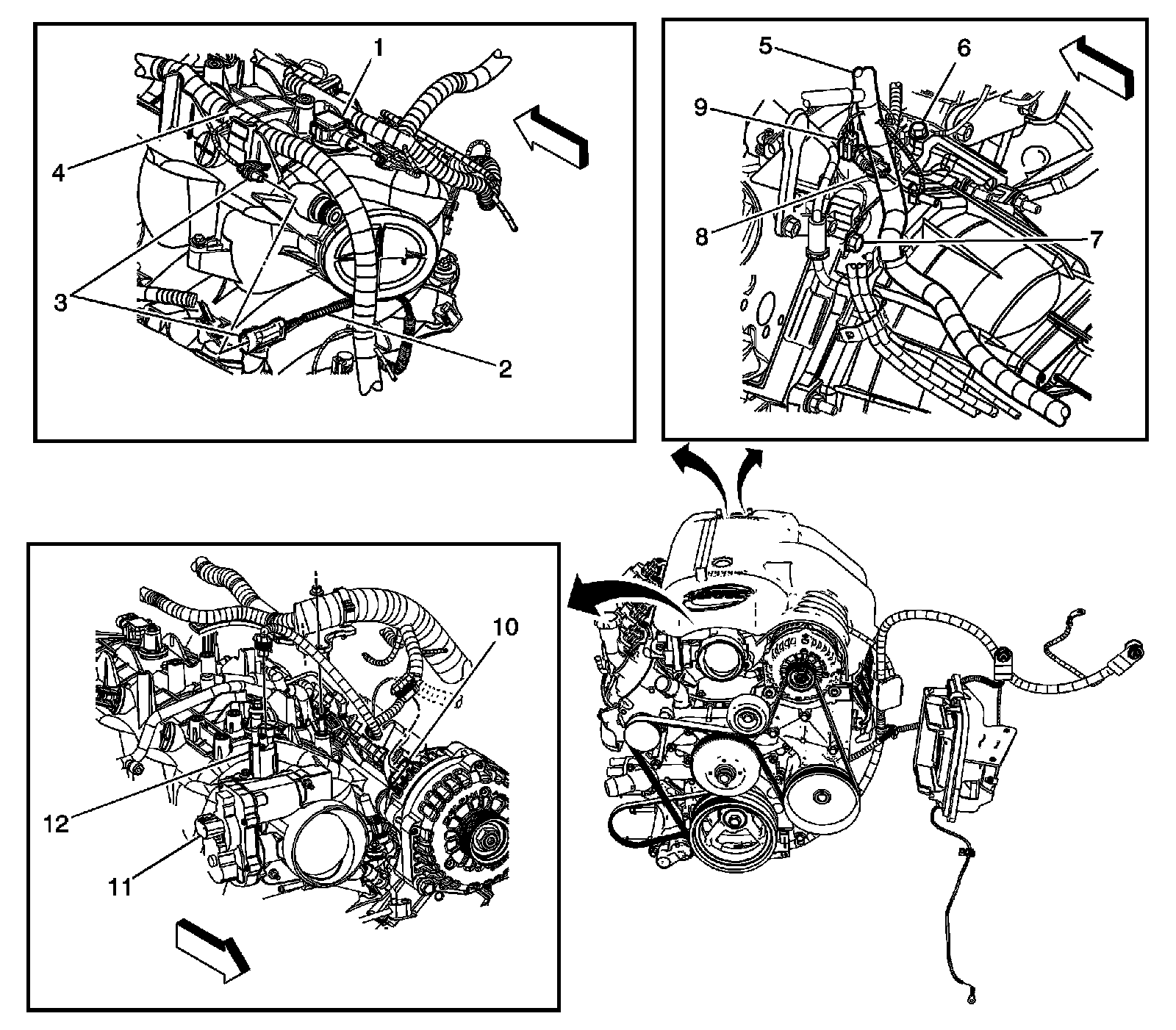

Top View

Factory service manual diagram



1 - Manifold Absolute Pressure (MAP) Sensor
2 - Knock Sensor Pigtail
3 - C115
4 - Engine Harness
5 - Engine Harness
6 - G103
7 - G104
8 - Camshaft Position (CMP) Sensor Connector
9 - Engine Oil Pressure (EOP) Sensor Connector
10 - Generator
11 - Throttle Body Connector
12 - Evaporative Emission (EVAP) Canister Purge Solenoid

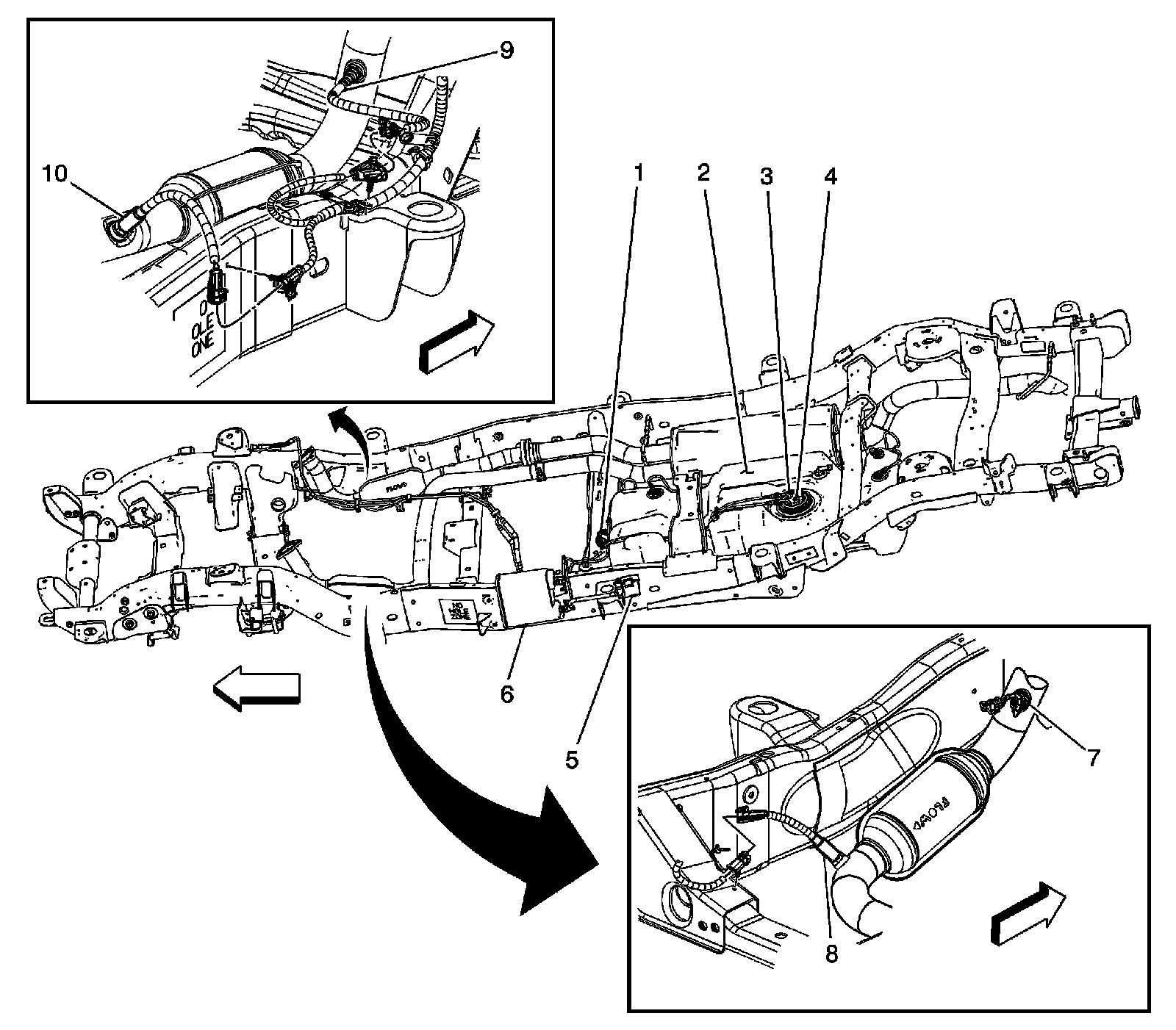

Chassis Mounted Components

Factory service manual diagram



1 - Fuel Filter
2 - Fuel Tank
3 - Fuel Pump and Sender Assembly
4 - Fuel Tank Pressure (FTP) Sensor
5 - Evaporative Emission Canister Vent (EVAP) Solenoid
6 - EVAP Canister
7 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
8 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
9 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
10 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

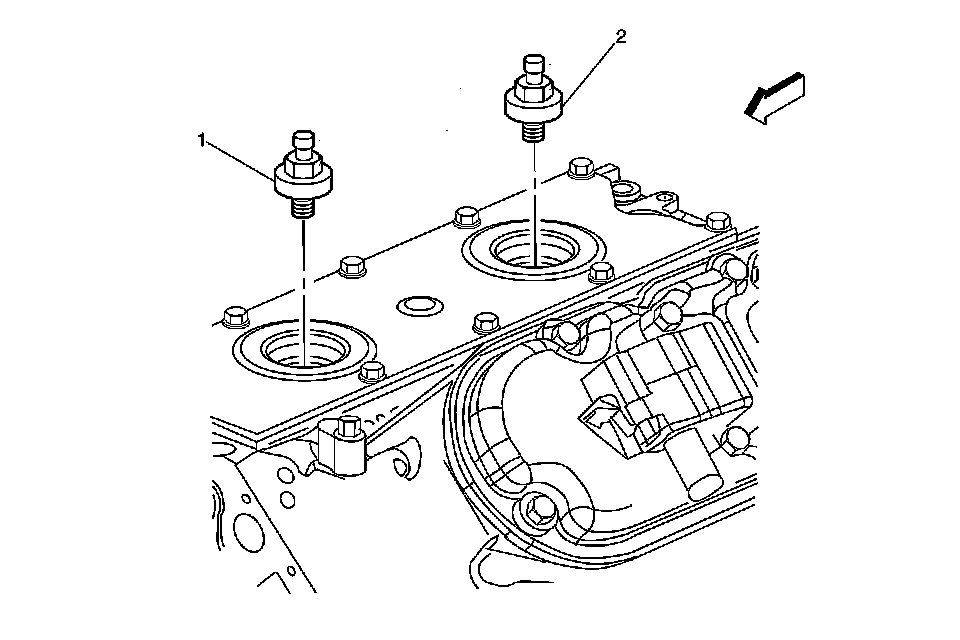

Knock Sensors

Factory service manual diagram



1 - Knock Sensor (KS) 1
2 - Knock Sensor (KS) 2
