2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor Replacement
Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.

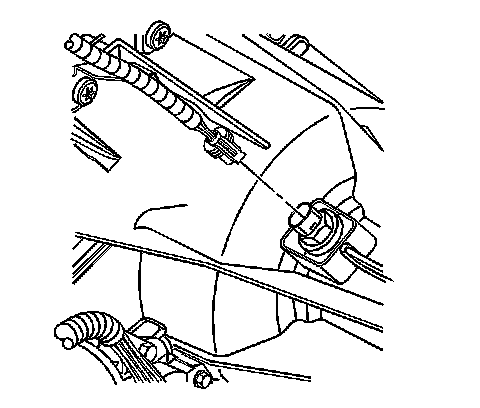

2. Remove the electrical connector from the speed sensor.

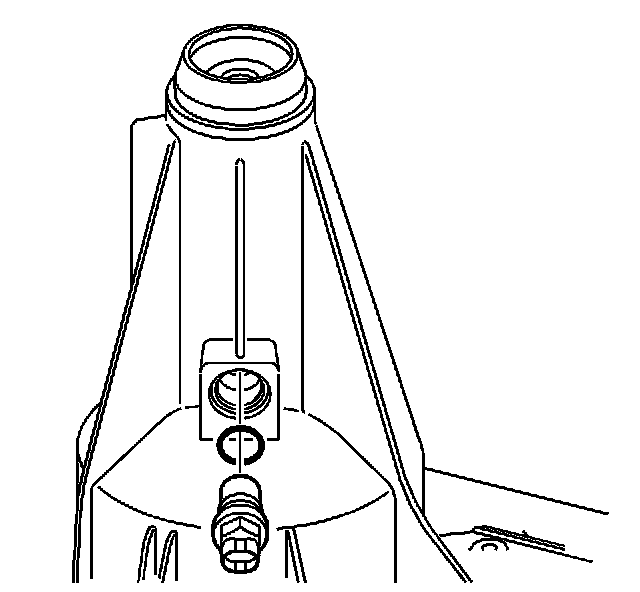

3. Remove the speed sensor and the O-ring from the transfer case.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the new rear speed sensor into the transfer case with a new O-ring seal.
Tighten the right rear speed sensor to 17 N.m (13 lb ft).
2. Install the electrical connector to the speed sensor.
3. Lower the vehicle. Refer to Vehicle Lifting.
