2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Electronic Throttle Control Module: Service and Repair
Throttle Actuator Control Module Replacement
Removal Procedure
1. Remove the left hand corner brace from the cowl.

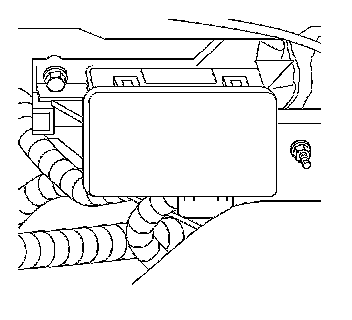

2. Remove the throttle actuator control (TAC) module mounting nuts.
3. Disconnect the TAC module electrical connectors from the TAC module.
Installation Procedure
1. Connect the TAC module electrical connectors to the TAC module.
Notice: Refer to Fastener Notice.
2. Install the TAC module onto the studs and install the mounting nuts.
Tighten the TAC mounting nuts to 9 N.m (80 lb in).
3. Install the left hand corner brace.
Tighten the corner brace bolts to 25 N.m (18 lb ft).
4. Refer to Control Module References for programming and setup information. Programming and Relearning
