2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Service and Repair

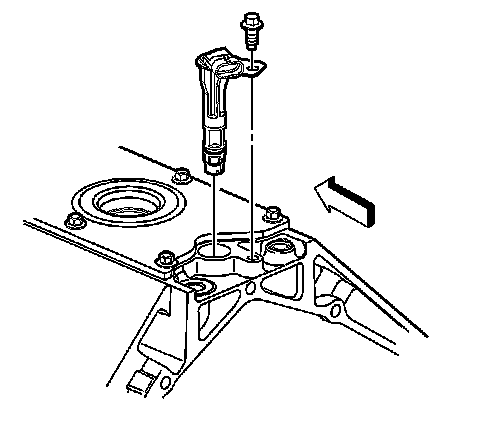

Camshaft Position Sensor Replacement
Removal Procedure
Important: Clean the area around the camshaft position (CMP) sensor before removal in order to prevent debris from entering the engine.
1. Remove the engine sight shield.
2. Disconnect the CMP sensor electrical connector.
3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.
Installation Procedure
1. Install the CMP sensor.
Notice: Refer to Fastener Notice.
2. Install the CMP sensor bolt.
Tighten the bolt to 25 N.m (18 lb ft).
3. Connect the CMP sensor electrical connector.
4. Install the engine sight shield.
