2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Lighting Systems Component Views
Lighting Systems Component Views
Front Exterior Lights
Driver Door

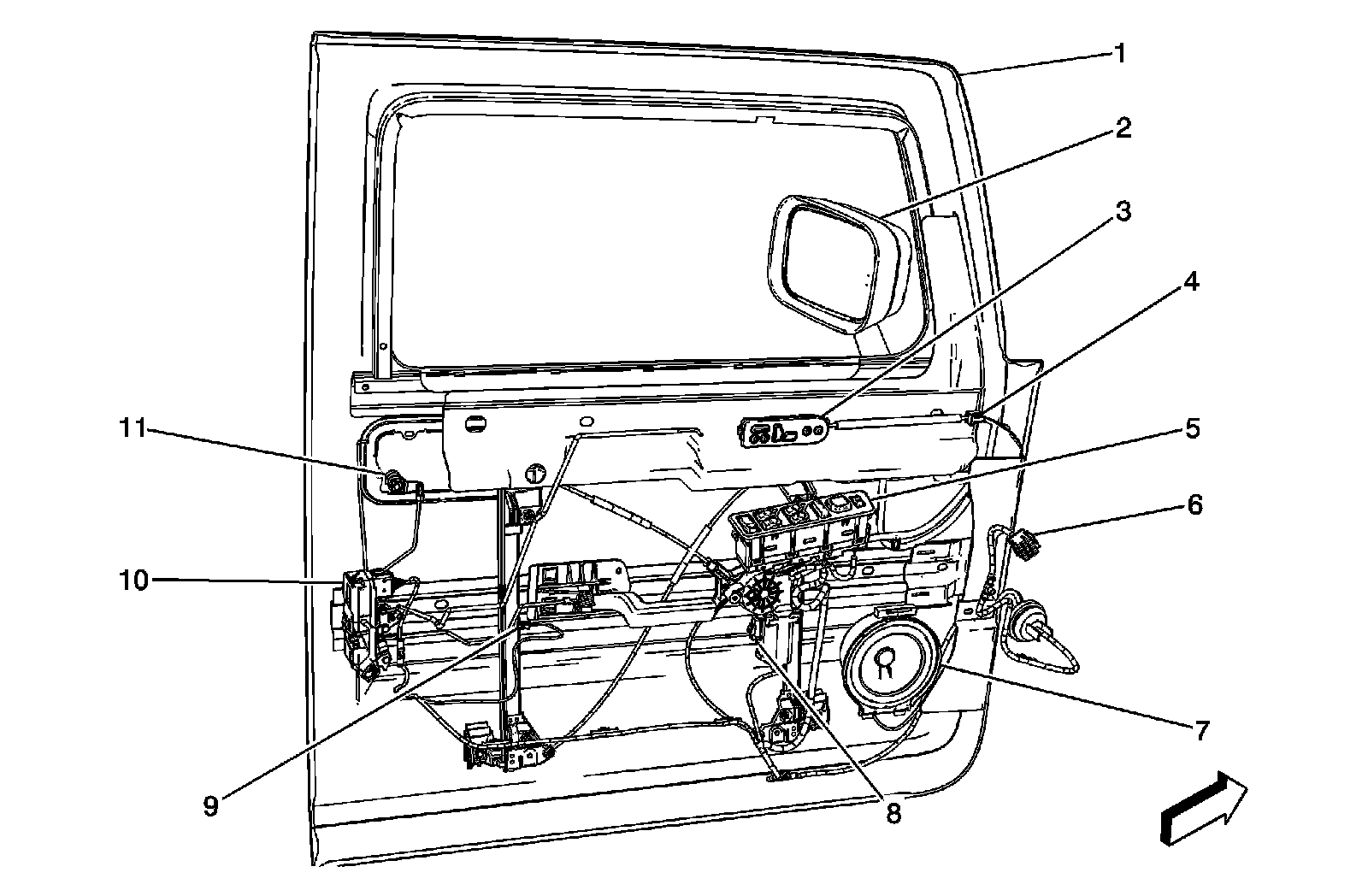

1 - Driver Door
2 - Outside Rearview Mirror
3 - Memory/Heated Seat Switch
4 - Driver Door Module (DDM) Connector - C5
5 - Driver Door Module (DDM)
6 - Fuse Block - I/P - C3
7 - Speaker - LF Door
8 - Window Motor - Driver
9 - Door Courtesy Lamp - LF
10 - Door Latch Assembly - Driver
11 - Door Lock Cylinder
Passenger Door

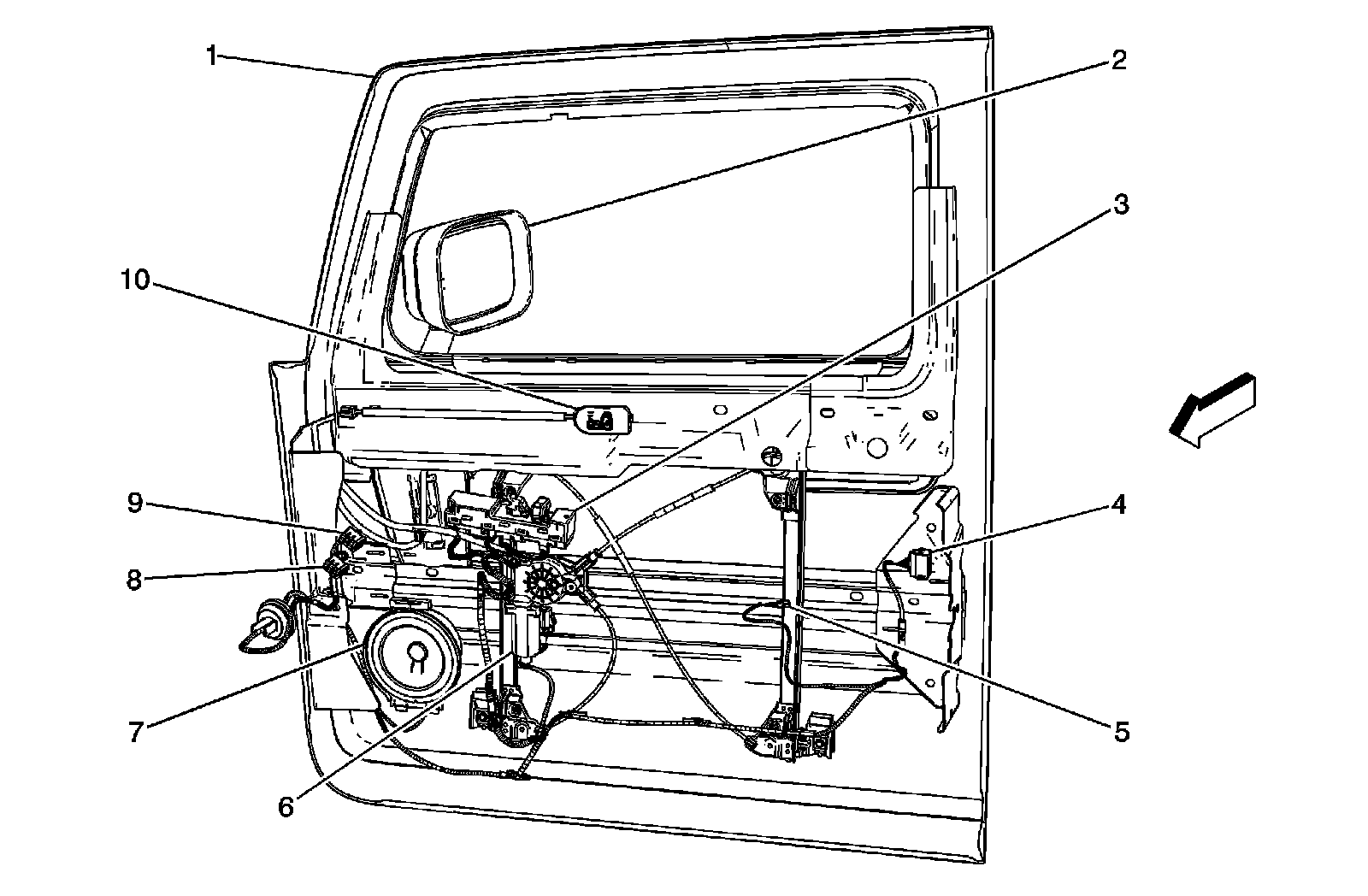

1 - Passenger Door
2 - Outside Rearview Mirror
3 - Passenger Door Module (PDM)
4 - Door Latch Assembly - Passenger
5 - Door Courtesy Lamp - RF
6 - Window Motor - Passenger
7 - Speaker - RF Door
8 - Junction Block - I/P - C2
9 - Junction Block - I/P - C7
10 - Heated Seat Switch
