2007 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Locations
HVAC Component Views

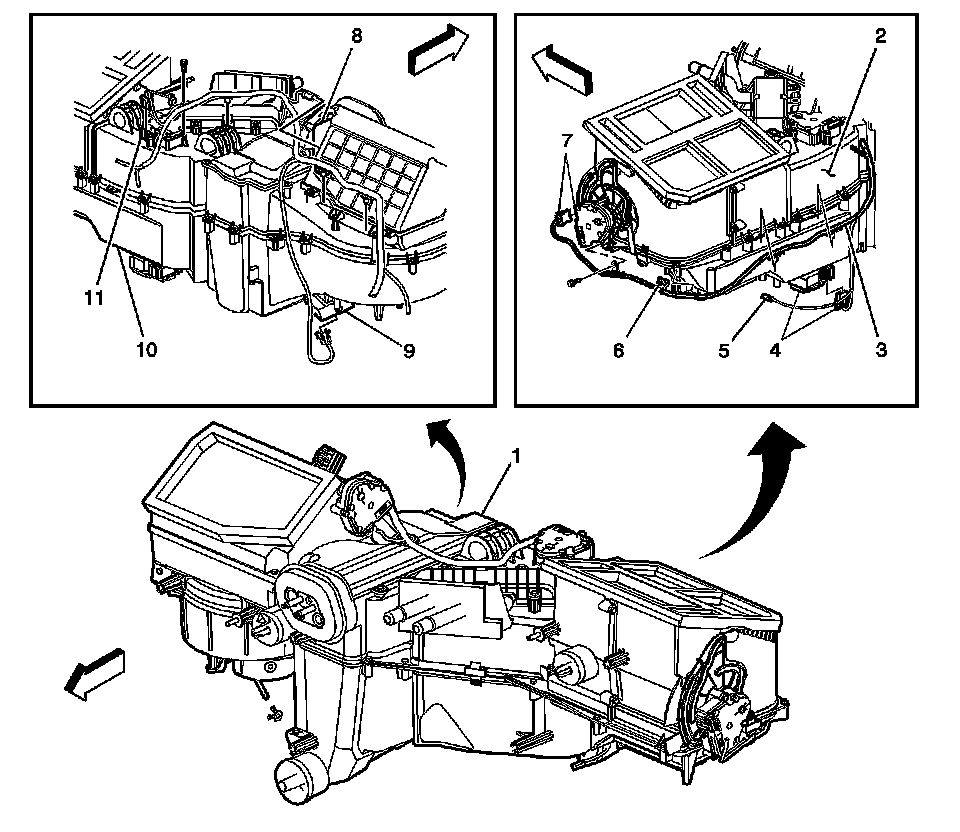

HVAC Module
1 - HVAC Module
2 - HVAC Module
3 - HVAC Harness
4 - Air Temperature Actuator - Left
5 - Air Temperature Sensor Connector - Lower Right
6 - Air Temperature Sensor Connector - Lower Left
7 - Mode Actuator
8 - Recirculation Actuator
9 - Blower Motor Control Processor
10 - HVAC Module
11 - Air Temperature Actuator - Right

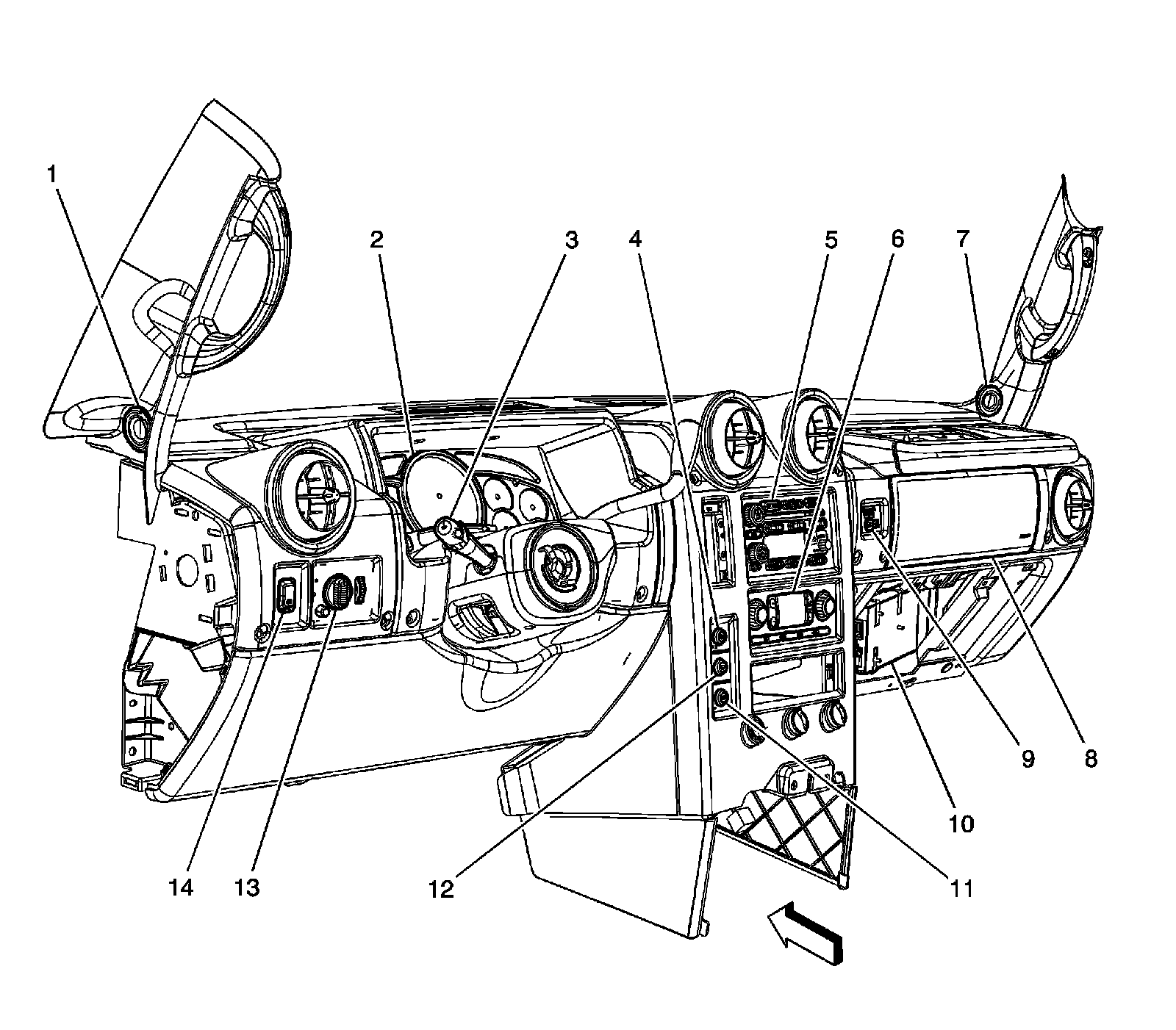

Instrument Panel
1 - Speaker - LF Tweeter
2 - Instrument Cluster
3 - Turn Signal/Multifunction Switch
4 - Traction Control Switch
5 - Radio
6 - HVAC Control Module
7 - Speaker - RF Tweeter
8 - Inflatable Restraint I/P Module
9 - Inflatable Restraint I/P Module Disable Switch
10 - Digital Radio Receiver
11 - Ride Height Switch (ZM6)
12 - Tow/Haul Switch
13 - Headlamp and Panel Dimmer Switch
14 - Midgate Window Switch (SUT) or Rear Wiper/Washer Switch (Except SUT)
