2007 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE
Rear View Camera

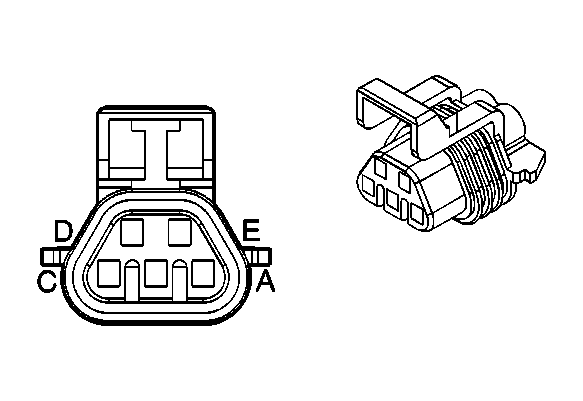

Rear View Camera Connector Parts Information
Connector Part Information
|
Rear View Camera Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | OG | VP | Video + |
| B | GN | DI | Drain |
| C | RD | CPWR | Ignition 3 Voltage |
| D | BK | CGND | Ground |
| E | BU | VN | Video - |
