2007 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE

Object Detection Component Views

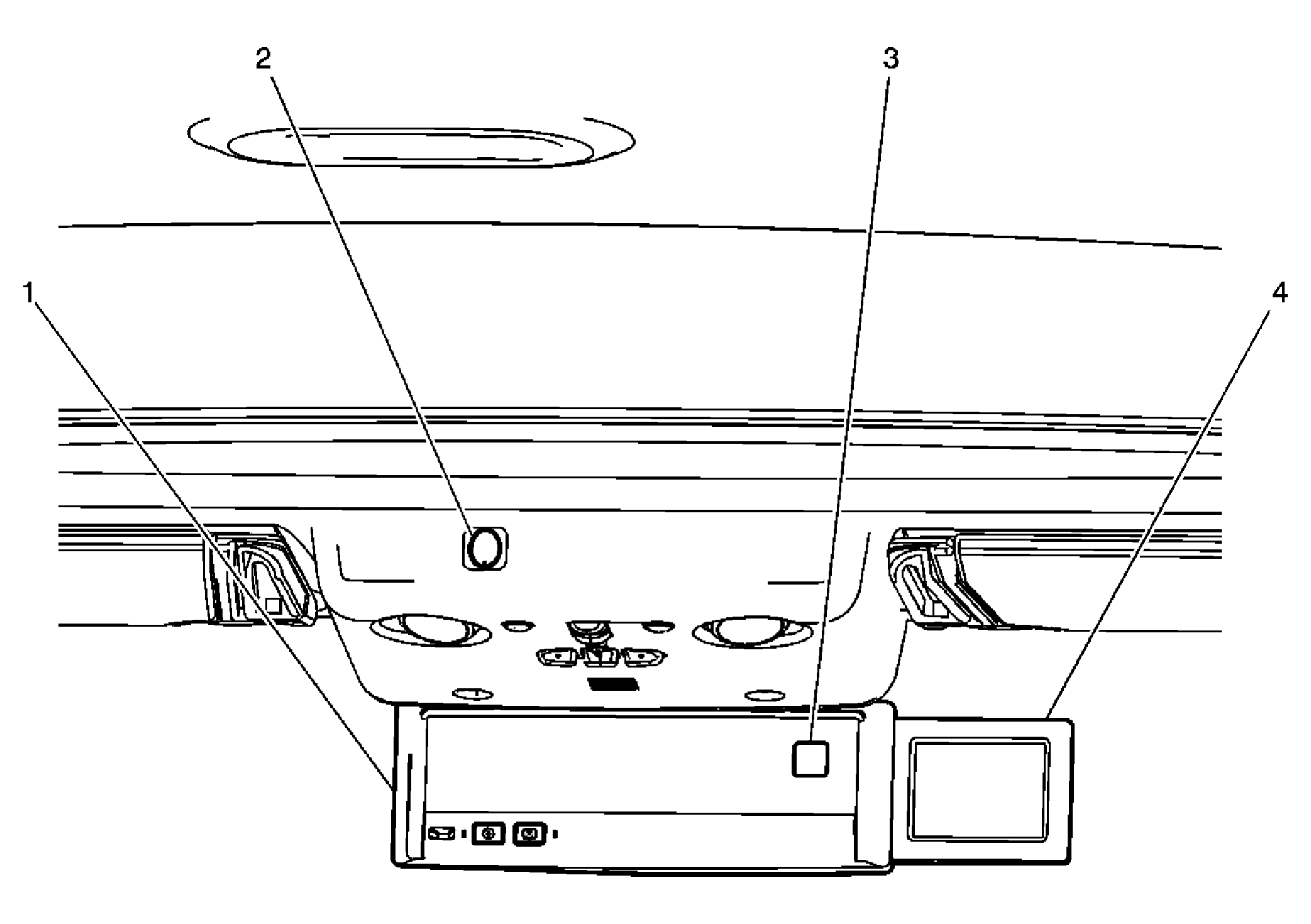

Fig 1: ISRVM and Off-Road Lamps Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Off-Road Lamps Switch (USB, USC, USD, UNR)
3	Outside Temperature/Compass Display
4	Rear Vision Camera Display (UVC)

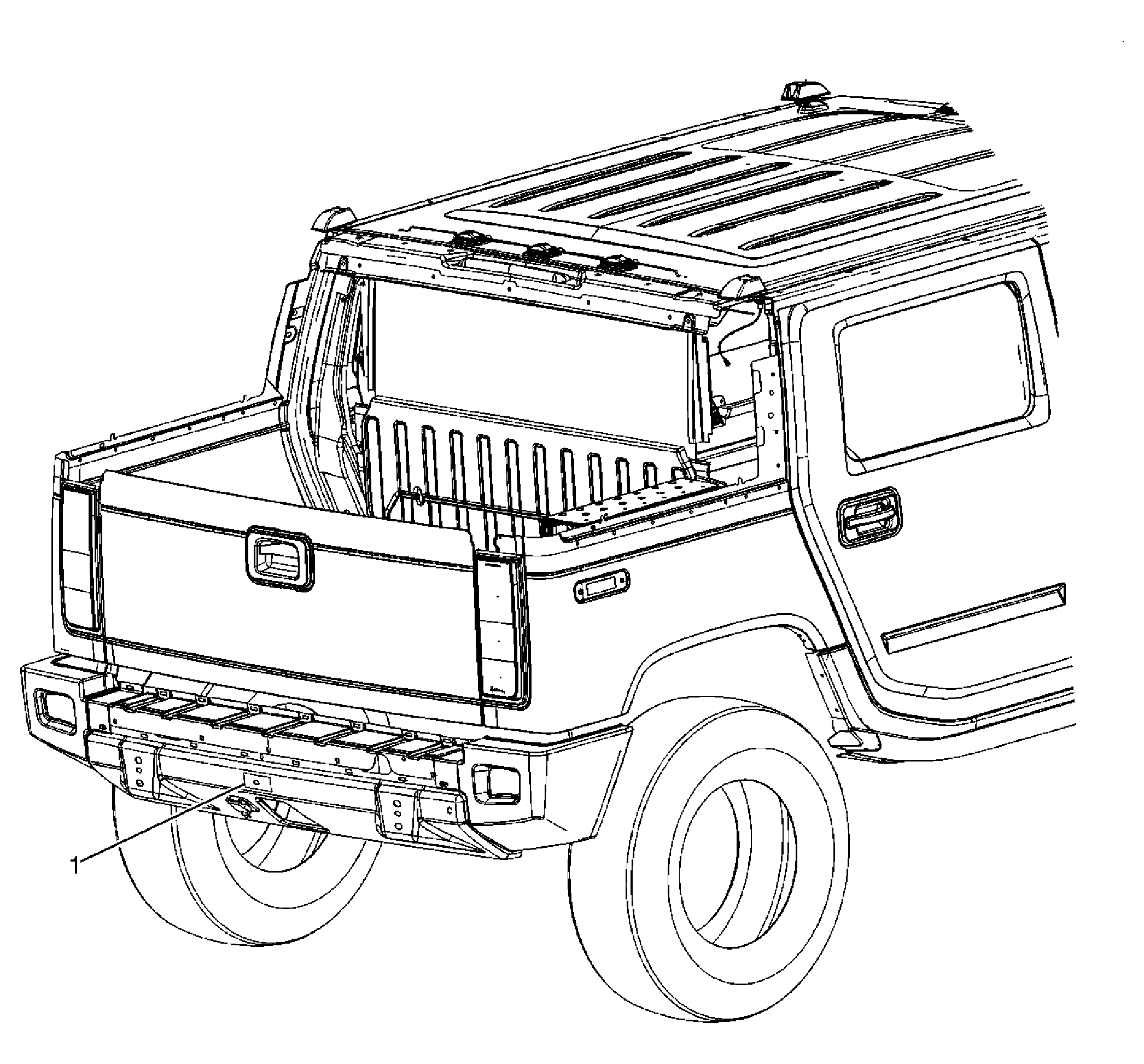

Fig 2: Locating Rear View Camera At Rear of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear View Camera
