2006 Hummer H3 L5-3.5LFACTORY OEM SERVICE PROCEDURE
Control Module: Locations
Component Locator
Transfer Case Control Component Views
1 - Accessory Switch
2 - Transfer Case Shift Control Module
3 - Transfer Case Shift Control Module C3
4 - Transfer Case Shift Control Module C2
5 - Transfer Case Shift Control Module C1
1 - Transmission Case
2 - Backup Lamp Switch
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
1 - Transmission Case
2 - C175 Engine Harness to Transmission Internal Harness
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
6 - Park / Neutral Position (PNP) Switch

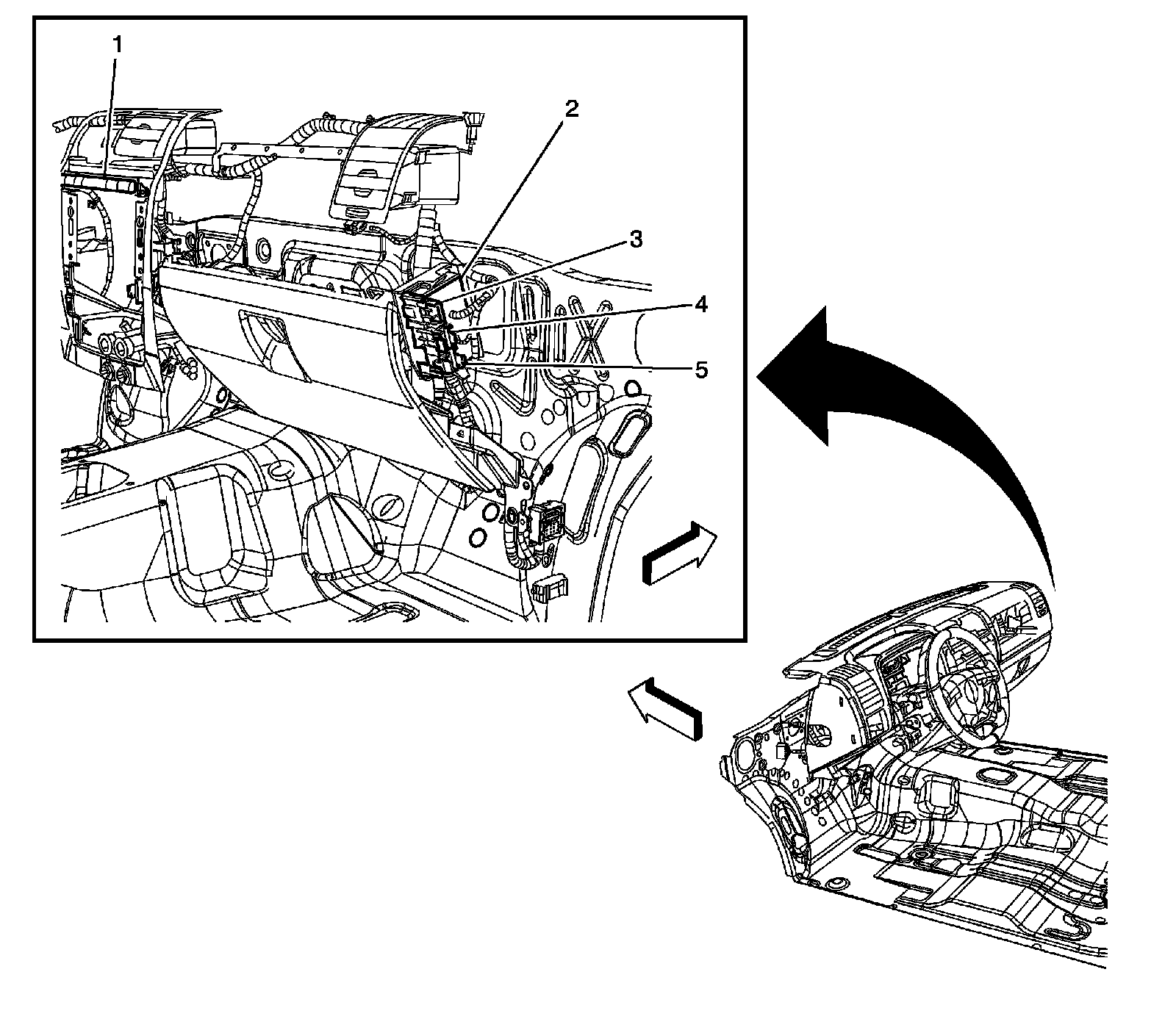

Transfer Case Control Component Views
Transfer Case Components:
1 - Accessory Switch
2 - Transfer Case Shift Control Module
3 - Transfer Case Shift Control Module C3
4 - Transfer Case Shift Control Module C2
5 - Transfer Case Shift Control Module C1
Engine Harness - Rear (MA5):
1 - Transmission Case
2 - Backup Lamp Switch
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
Engine Harness - Rear (M30):
1 - Transmission Case
2 - C175 Engine Harness to Transmission Internal Harness
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
6 - Park / Neutral Position (PNP) Switch
