2006 Hummer H3 L5-3.5LFACTORY OEM SERVICE PROCEDURE
Camshaft Position (CMP) Sensor Replacement-Intake
CAMSHAFT POSITION (CMP) SENSOR REPLACEMENT-INTAKE
REMOVAL PROCEDURE

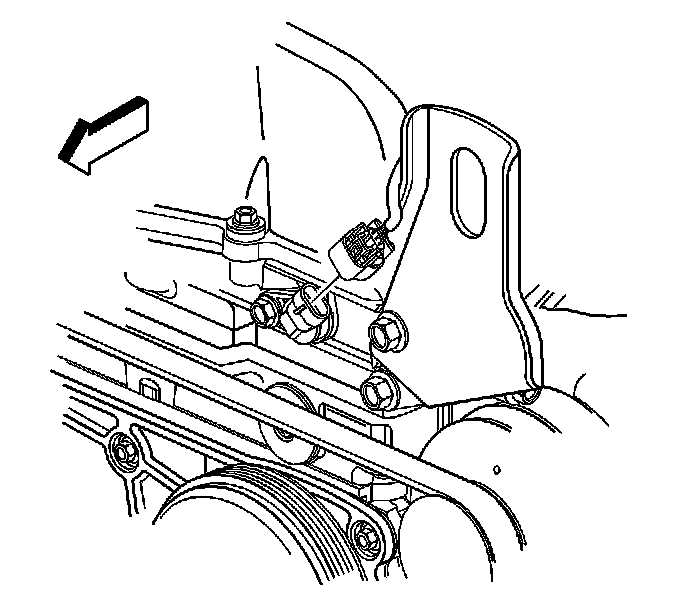

1. Disconnect the engine wiring harness electrical connector from the intake camshaft position (CMP) sensor.
2. Remove the intake CMP sensor retaining bolt.

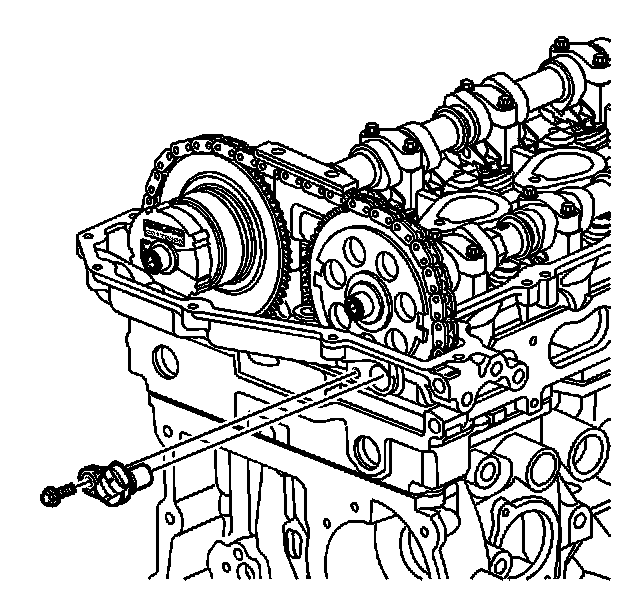

3. Remove the intake CMP sensor from the cylinder head.Discard the O-ring seal.
INSTALLATION PROCEDURE
1. Install a new O-ring seal to the intake CMP sensor.
2. Lightly lubricate the O-ring seal with clean engine oil.
3. Install the intake CMP sensor into the cylinder head.
4. Add sealer GM P/N 12346004 (Canadian P/N 10953480) to the CMP sensor bolt threads.
5. Install the intake CMP sensor bolt.
Tighten the bolt to 10 N.m (89 lb in).
NOTE: Refer to Fastener Notice in Service Precautions.
6. Connect the engine wiring harness electrical connector to the intake CMP sensor.
