2006 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE
Transfer Case Shift Control Module Replacement
Transfer Case Shift Control Module Replacement

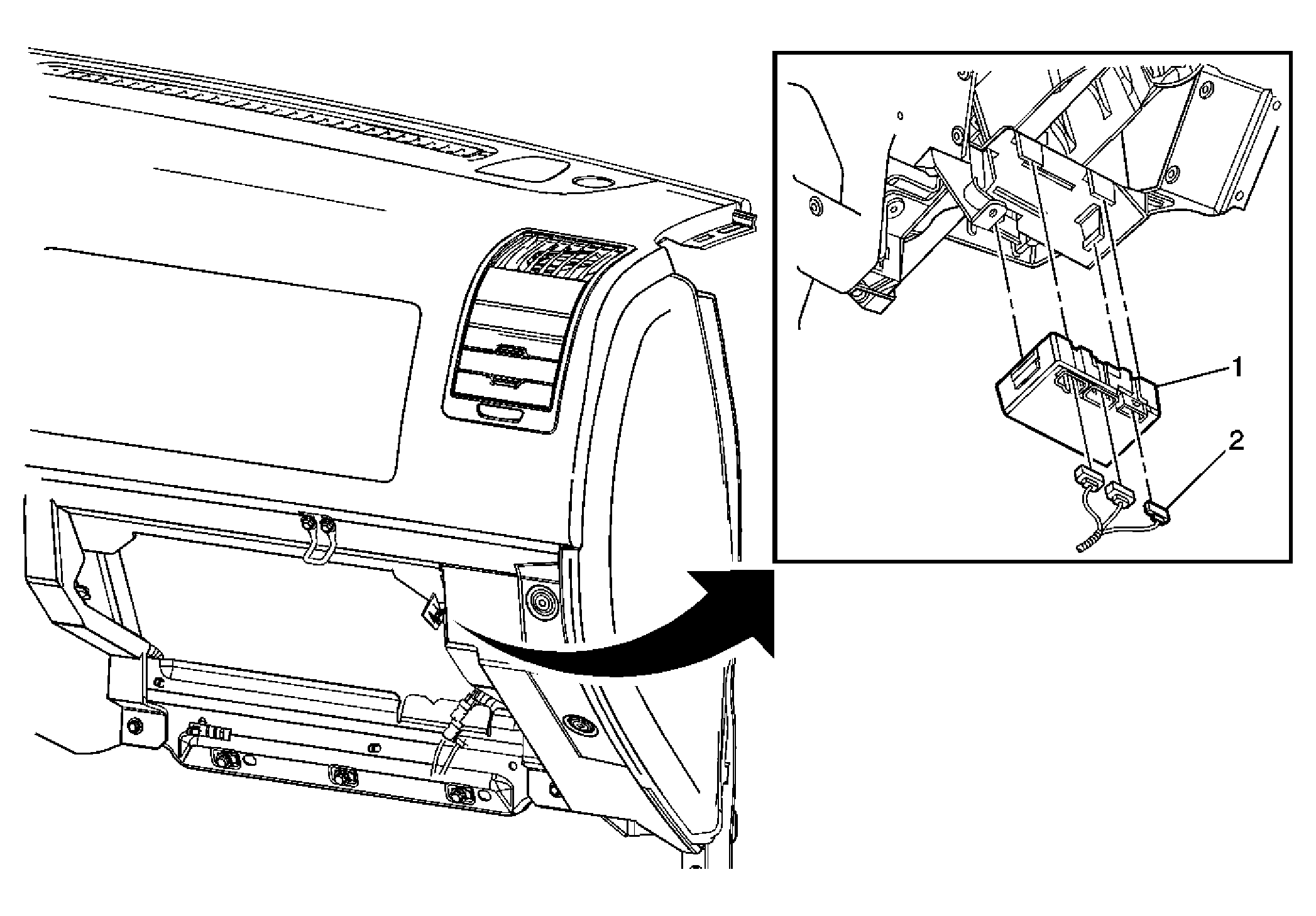

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the glove box compartment. Refer to Compartment Replacement - Instrument Panel (I/P) |
|
| 1 | Module, Transfer Case Control Tip: Remove the control module from the mounting bracket before disconnecting the electrical connectors. |
| 2 | Connector, Transfer Case Control Module Electrical. |
