2006 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE
Power Door Systems Component Views
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Driver |
| 2 | Outside Rearview Mirror Switch |
| 3 | C510 Driver Door Harness to Outside Rearview Mirror Harness |
| 4 | C500 Door Harness to Body Harness |
| 5 | Window Motor - Driver |
| 6 | Speaker - LF Door |
| 7 | Door Lock and Window Switch - Driver |
| 8 | Door Lock and Window Switch - Driver C1 |
| 9 | Door Lock and Window Switch - Driver C2 |
| 10 | Door Lock Actuator - Driver |
| 11 | Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF) |
| 12 | Key Lock Cylinder |
| Callout | Component Name |
|---|---|
| 1 | Window Motor - Passenger |
| 2 | Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF) |
| 3 | Door Lock Actuator - Passenger |
| 4 | Door Lock/Window Switch - Passenger |
| 5 | Speaker - RF |
| 6 | C600 Passenger Door Harness to Body Harness |
| 7 | C610 Passenger Door Harness to Rearview Mirror Harness |
| 8 | Outside Rearview Mirror - Passenger |

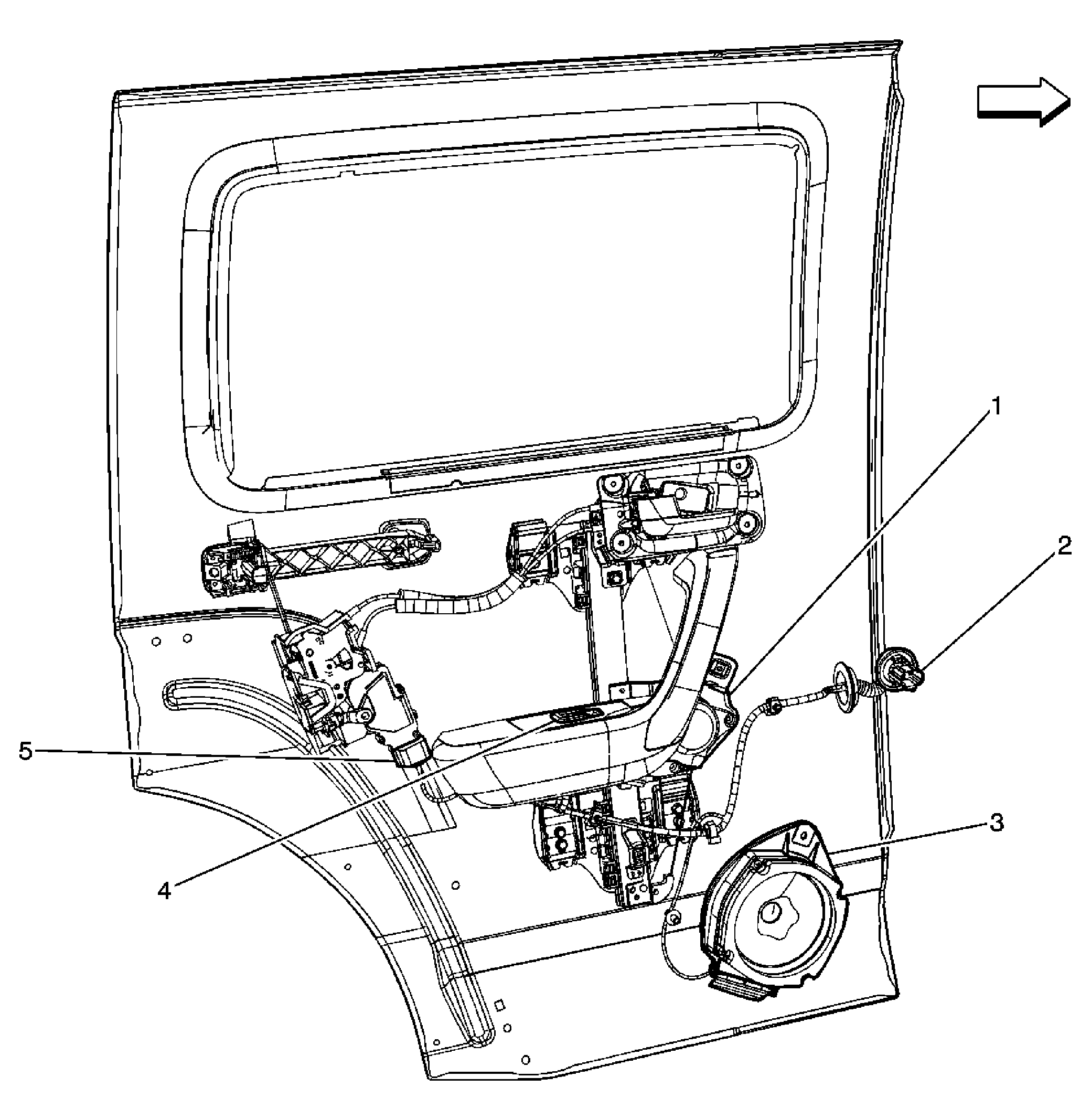

| Callout | Component Name |
|---|---|
| 1 | Window Motor - LR |
| 2 | C700 Left Rear Door Harness to Body Harness |
| 3 | Speaker - LR |
| 4 | Window Switch - LR |
| 5 | Door Lock Actuator - LR |

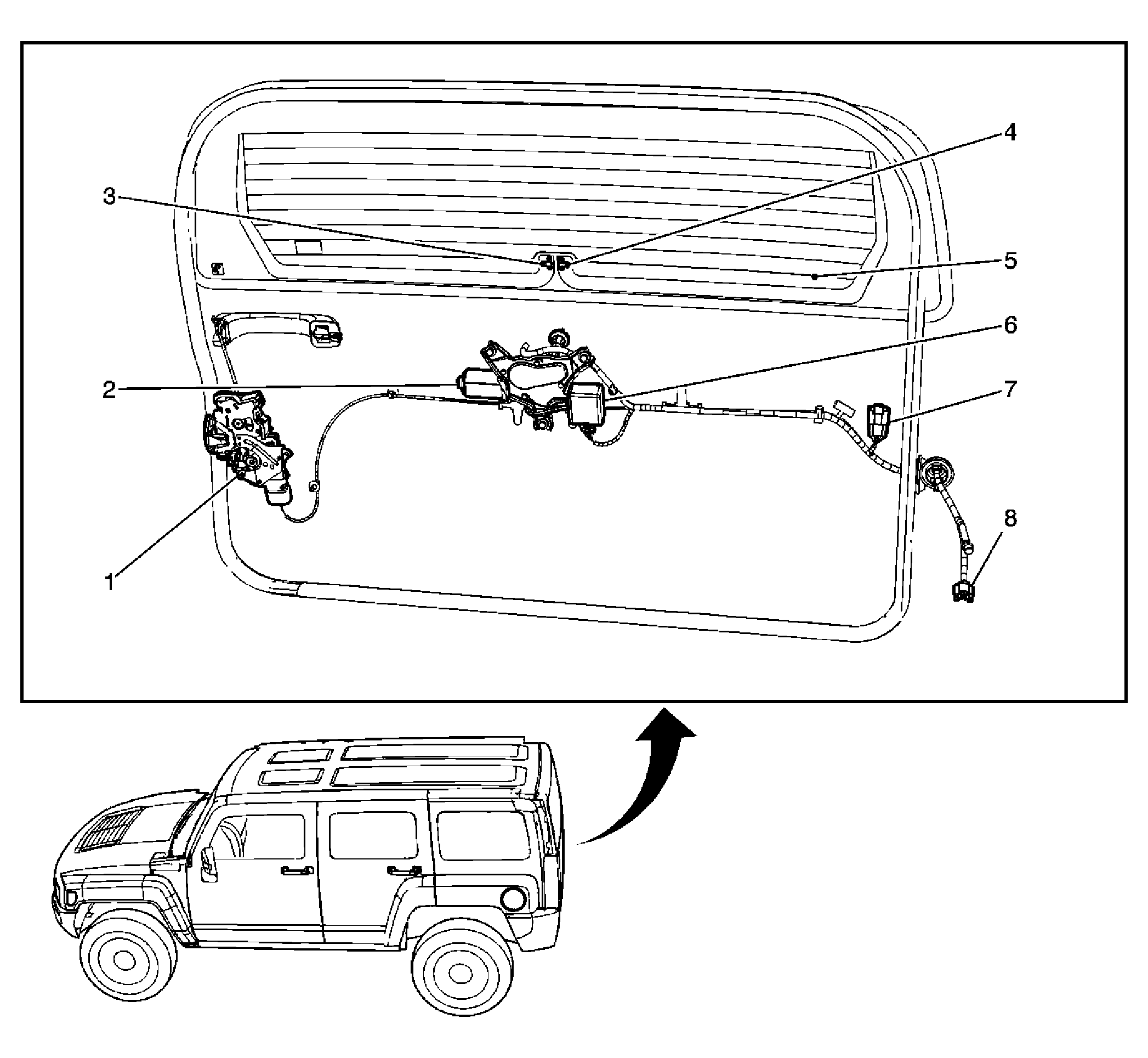

| Callout | Component Name |
|---|---|
| 1 | Door Lock Actuator - Endgate |
| 2 | Rear Window Wiper Motor |
| 3 | Rear Window Defogger Connector |
| 4 | Rear Window Defogger Connector |
| 5 | Rear Window Defogger |
| 6 | Rear Window Wiper/Washer Module |
| 7 | C470 CHMSL Jumper Harness to Endgate Harness |
| 8 | C450 Body Harness to Endgate Harness |
