2006 Hummer H3 AutomaticFACTORY OEM SERVICE PROCEDURE
Communication Interface Module Replacement
Communication Interface Module Replacement

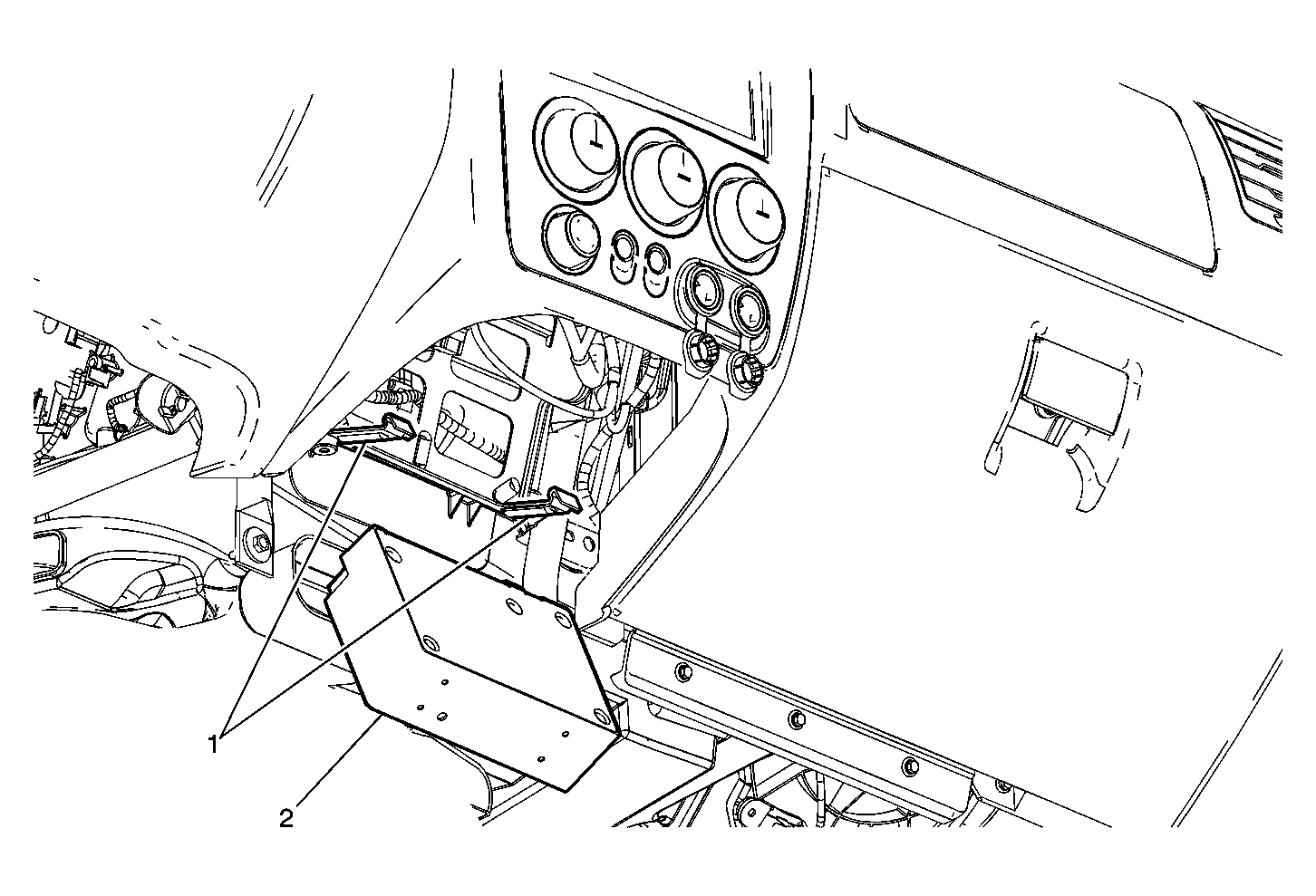

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications
Refer to Fastener Tightening Specifications . Preliminary Procedure
|
|
| 1 | Bracket, Transceiver Assembly Tip: Pushing down on the bracket tabs releases the transceiver from the bracket. |
| 2 | Transceiver, Vehicle Communication Interface Module Tip: Partially remove the transceiver to access antenna and electrical connections. |
