2005 Hummer H2 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Transfer Case Identification
TRANSFER CASE IDENTIFICATION
Transfer Case Identification:

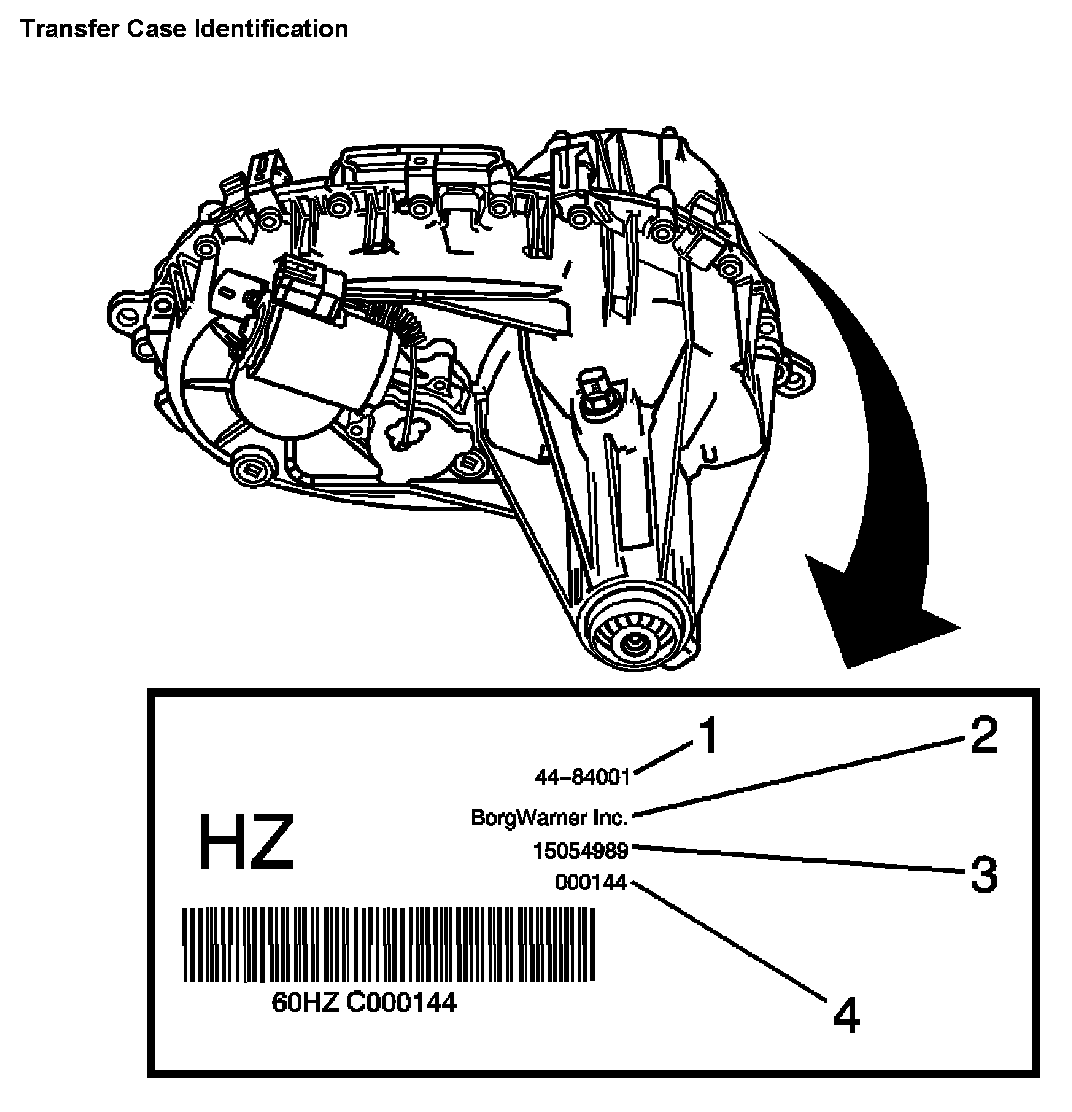

An identification tag is attached to the front half of the transfer case. The tag provides the following information:
- Model number (1)
- Manufacturer (2)
- Part Number (3)
- Serial Number (4)
The information on this tag is necessary for servicing the transfer case. If the tag is removed or becomes dislodged during service operations, keep the identification tag with the unit.
