2005 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE

Removal Procedure

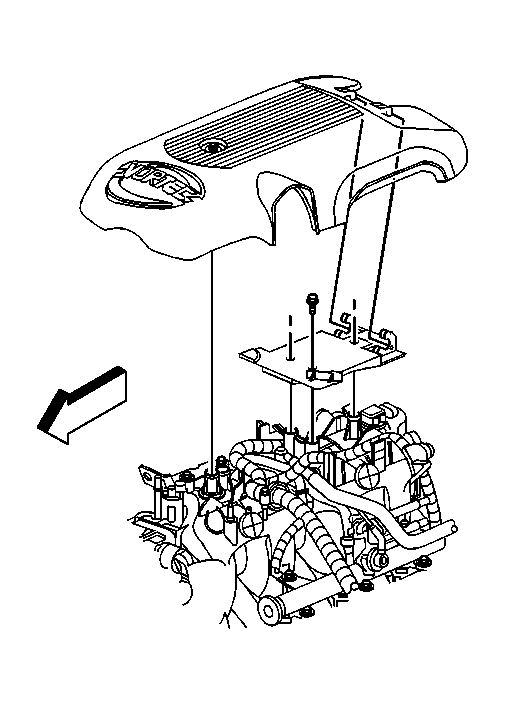

Fig 1: View Of Top Engine Cover

Courtesy of GENERAL MOTORS CORP.

Remove the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) in Engine Mechanical.
Remove the engine sight shield bracket bolts. Position the bracket to the side
Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

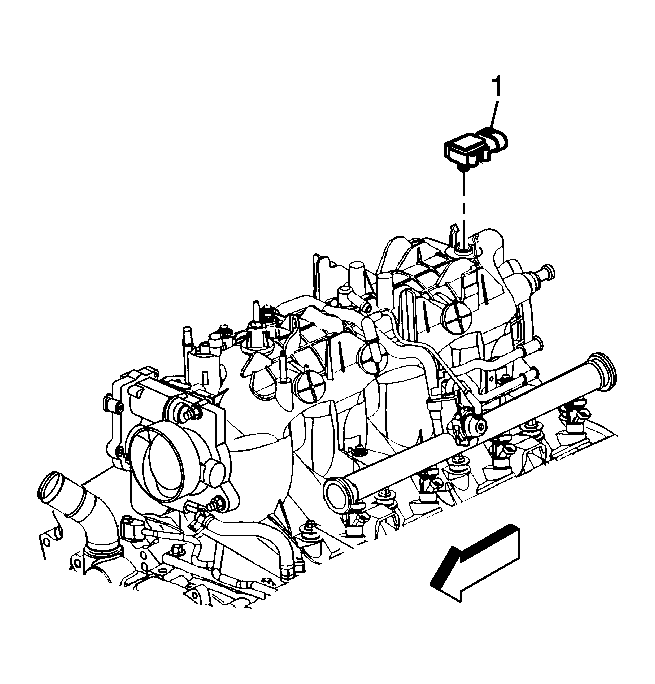

Fig 2: View Of Manifold Absolute Pressure (MAP) Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the MAP sensor (1) from the intake manifold.
