2005 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE

Removal Procedure

IMPORTANT: An 8-digit identification number is located on the fuel rail. Refer to this identification number when servicing or when part replacement is required.

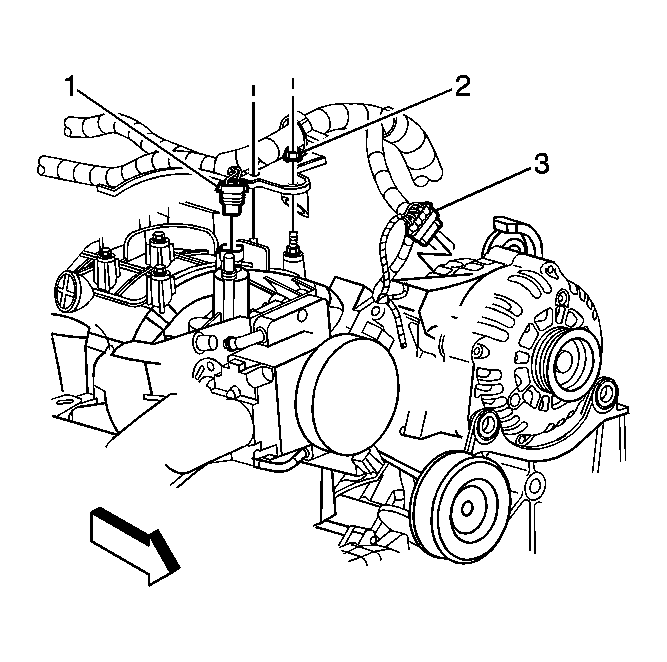

    Fig 1: View Of EVAP Canister Purge Solenoid & Generator Electrical Connectors & Bracket Nut
    GM1235683Courtesy of GENERAL MOTORS CORP.
  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
  2. Remove the wire harness bracket nut (2).
  3. Disconnect the evaporative emission (EVAP) purge solenoid electrical connector (1).
  4. Disconnect the generator electrical connector (3).

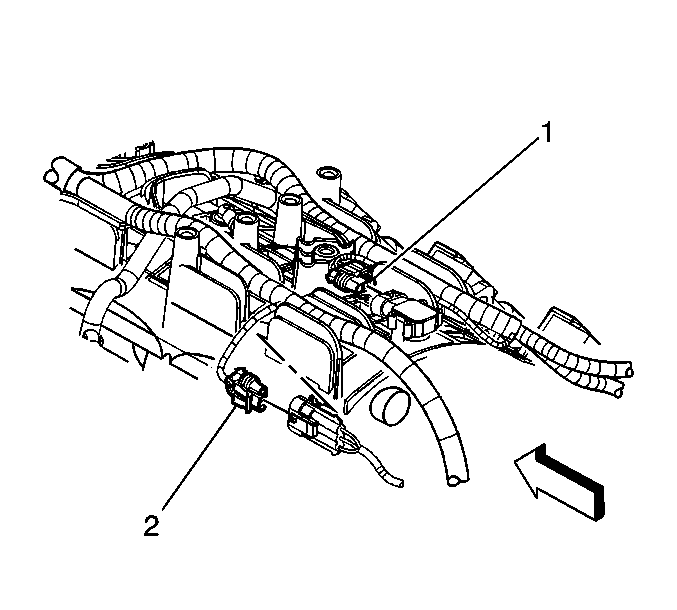

    5. Fig 2: View Of MAP Sensor & Knock Sensor Electrical Connectors
    GM679510Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the following electrical connectors:
    • Manifold absolute pressure (MAP) sensor (1)
    • Knock sensor (2)
  6. Remove the knock sensor harness connector from the intake manifold.

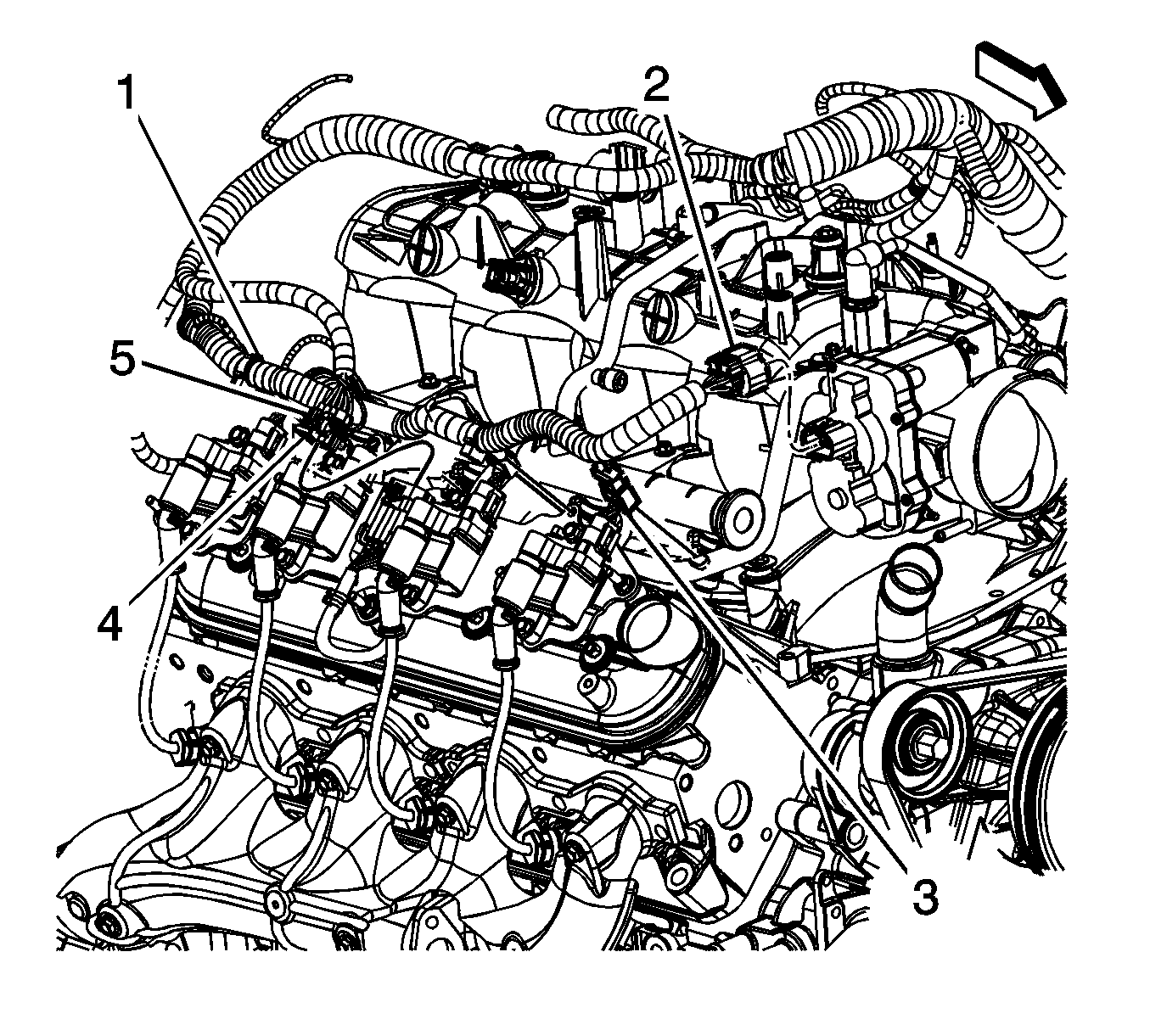

    7. Fig 3: View Of CPA Retainer, Harness Clips, ETC, Coil Harness & Fuel Injectors Electrical Connectors
    GM1235686Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the electronic throttle control (ETC) electrical connector (2). Perform the following:
    1. Disengage the gray retainer.
    2. Push down the black clip.
    3. Disconnect the connector.
  8. Remove the connector position assurance (CPA) retainer (5).
  9. Disconnect the following electrical connectors from the right side of the engine:
    • Main coil (4)
    • Fuel injectors (3)
  10. Remove the harness clips from the fuel rail (1).

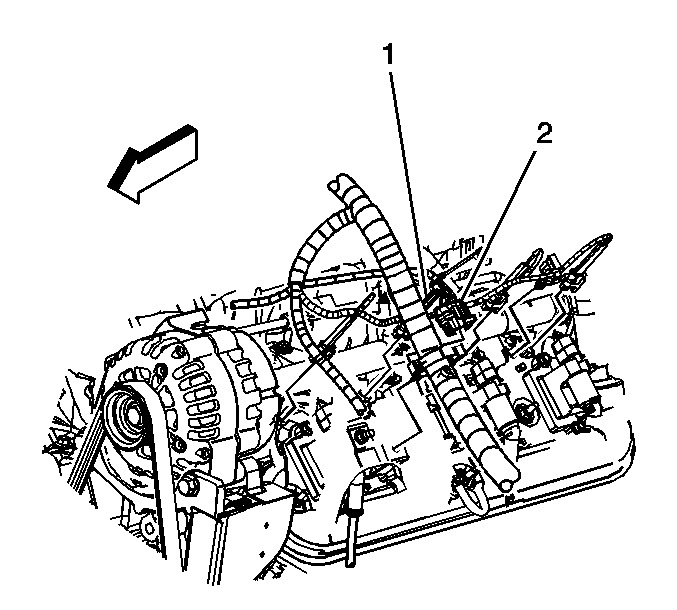

    11. Fig 4: View Of Main Ignition Coil Wire Harness Connector & Clips
    GM757686Courtesy of GENERAL MOTORS CORP.
  11. Remove the CPA retainer from the left side of the engine.
  12. Disconnect the following electrical connectors from the left side of the engine:
    • Main coil (2)
    • Fuel injectors
  13. Remove the harness clips from the fuel rail (1).
  14. Reposition the engine wire harness aside.

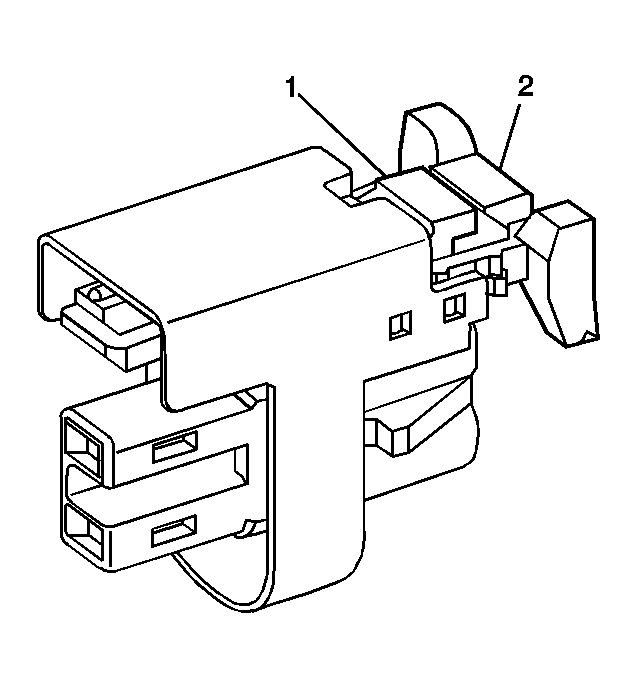

    15. Fig 5: CPA Retainer & Tab
    GM820977Courtesy of GENERAL MOTORS CORP.
  15. Perform the following steps in order to disconnect the fuel injector electrical connectors:
    1. Mark the connectors to their corresponding injectors to ensure correct reassembly.
    2. Pull the CPA retainer (2) on the connector up one click.
    3. Push the tab (1) on the connector in.
    4. Disconnect the fuel injector electrical connector.
    5. Repeat the steps for each injector electrical connector.

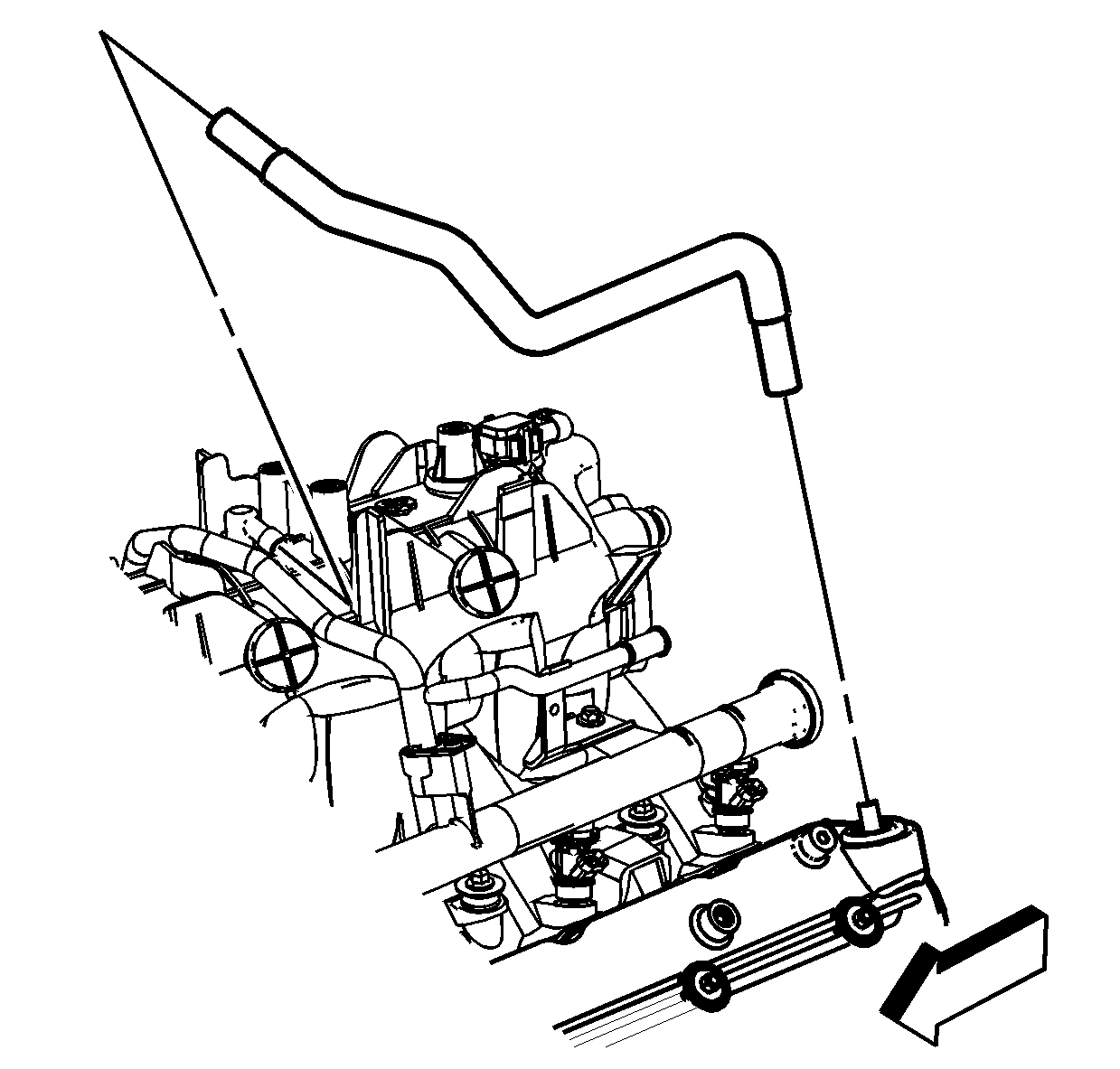

    16. Fig 6: View Of PCV Hose
    GM1201537Courtesy of GENERAL MOTORS CORP.
  16. Remove the positive crankcase ventilation (PCV) hose.

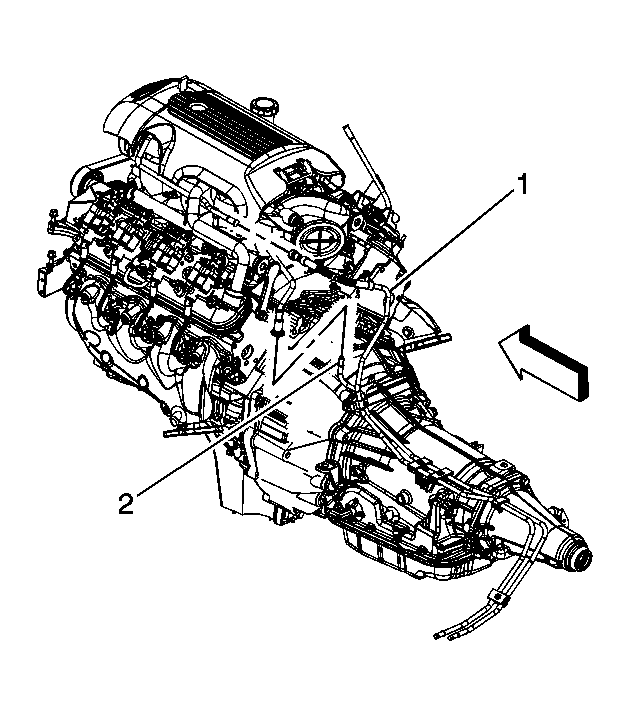

    17. Fig 7: Identifying Fuel Feed & EVAP Pipes
    GM1238585Courtesy of GENERAL MOTORS CORP.
  17. Disconnect the fuel feed pipe (1) from the fuel rail. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
    18. Fig 8: View Of Fuel Rail W/Injectors
    GM1201536Courtesy of GENERAL MOTORS CORP.
  18. Remove the fuel rail bolts.
    19. NOTE:
    • Remove the fuel rail assembly carefully in order to prevent damage to the injector electrical connector terminals and the injector spray tips. Support the fuel rail after the fuel rail is removed in order to avoid damaging the fuel rail components.
    • Cap the fittings and plug the holes when servicing the fuel system in order to prevent dirt and other contaminants from entering open pipes and passages.
