Installation Procedure
- Uncap the fuel tank.
- Install the fuel fill and vent pipe hose assembly to the fuel tank.
Tighten: Tighten the vent hose clamp and the fuel fill pipe clamp to 2.5 N.m (22 lb in).
- Install the fuel fill pipe bracket bolt.
Tighten: Tighten the bolt to 12 N.m (106 lb in).
- Connect the rear axle vent and air spring compressor hoses to the retainer on the fuel fill pipe, if applicable.
- Install the left rear wheelhouse panel. Refer to Wheelhouse Panel Replacement in Body Rear End.
- Lower the vehicle.

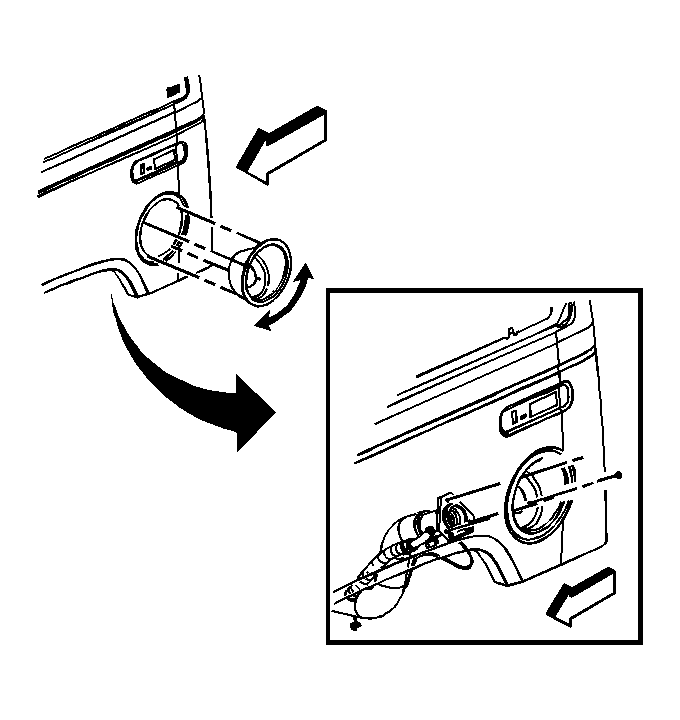

- Install fill pipe/housing bezel by fitting into offset slots and rotating clockwise.
- Install the fuel fill pipe housing to the fuel fill pipe bolts.
Tighten: Tighten the fuel fill pipe housing to fuel fill pipe bolts to 2.3 N.m (20 lb in).
- Refill the fuel system.
- Install the fuel filler cap.
