2005 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE
Removal Procedure
IMPORTANT:
Clean the area around the camshaft position (CMP) sensor before removal in order to prevent debris from entering the engine.
- Remove the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) in Engine Mechanical 6.0L.
- Disconnect the CMP sensor electrical connector.

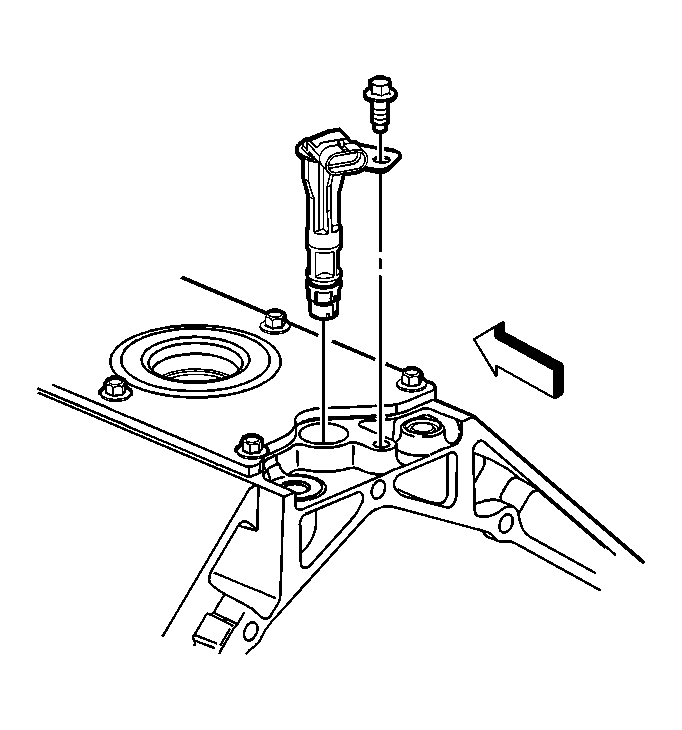

- Remove the CMP sensor bolt.
- Remove the CMP sensor.
