2005 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE
Removal Procedure

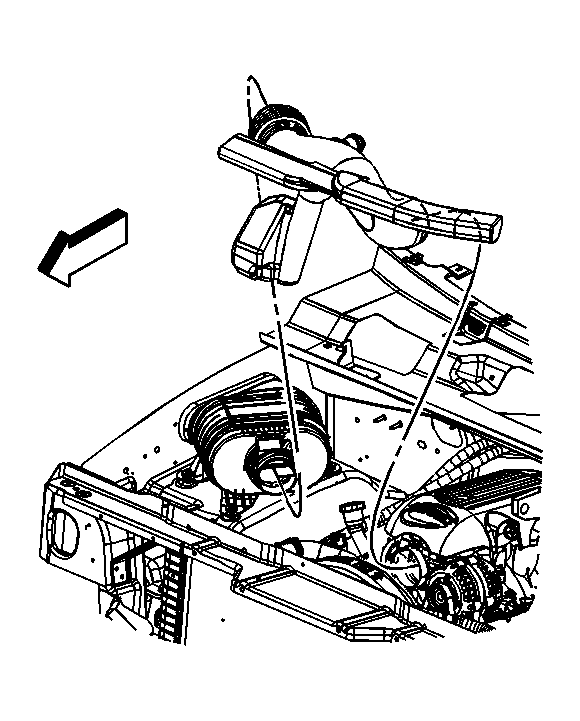

- Remove the air intake duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
- Disconnect the mass air flow/intake air temperature (MAF/IAT) sensor connector.
- Loosen the clamp securing the MAF/IAT sensor to the air cleaner assembly.
- Remove the MAF/IAT sensor.

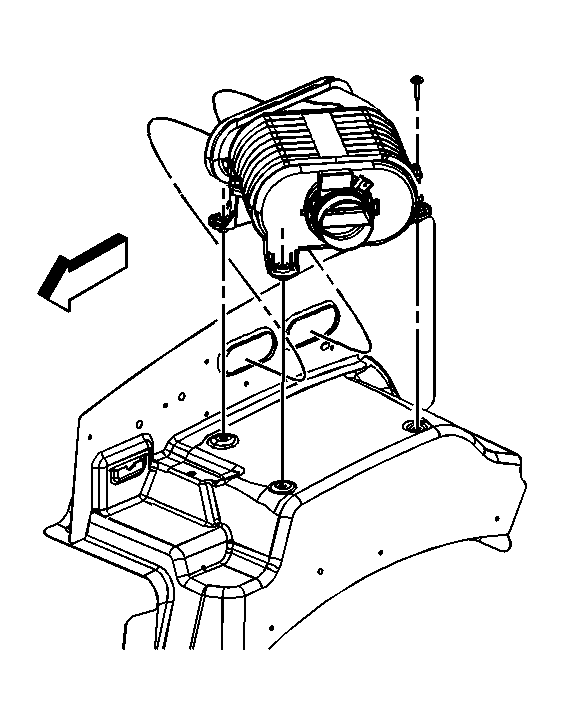

- Remove the air cleaner housing fasteners.
- Remove the air cleaner assembly.
