2004 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Shift Lock Control Component Views

Fig 1: Floor Shift Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Shift Assembly
2	Floor Shift Assembly Connector
3	Console Harness

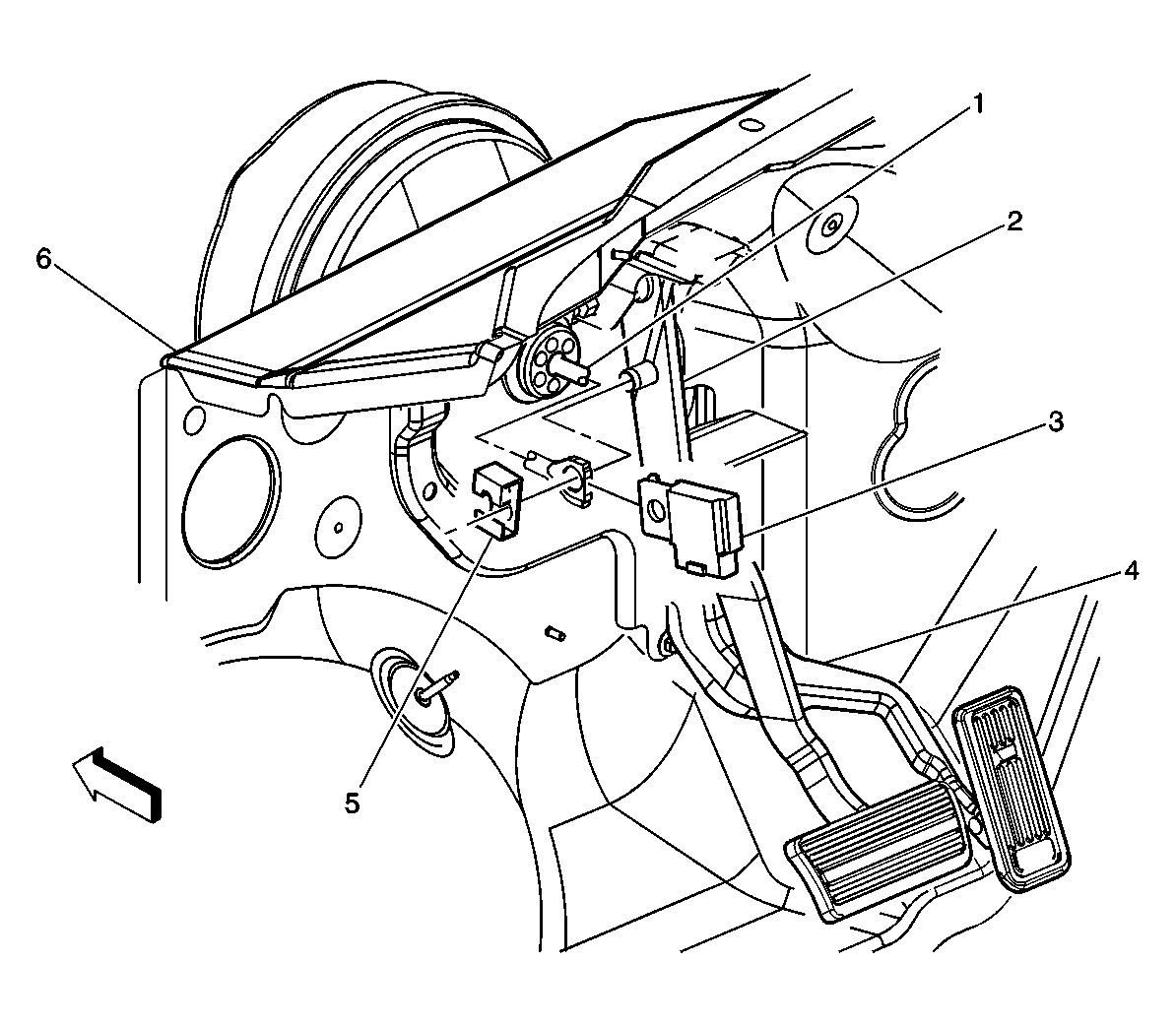

Fig 2: Stop Lamp Switch Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Booster
2	Brake Pedal
3	Stop Lamp Switch
4	Accelerator Pedal
5	Stop Lamp Switch Retainer
6	Dash Panel
